Description

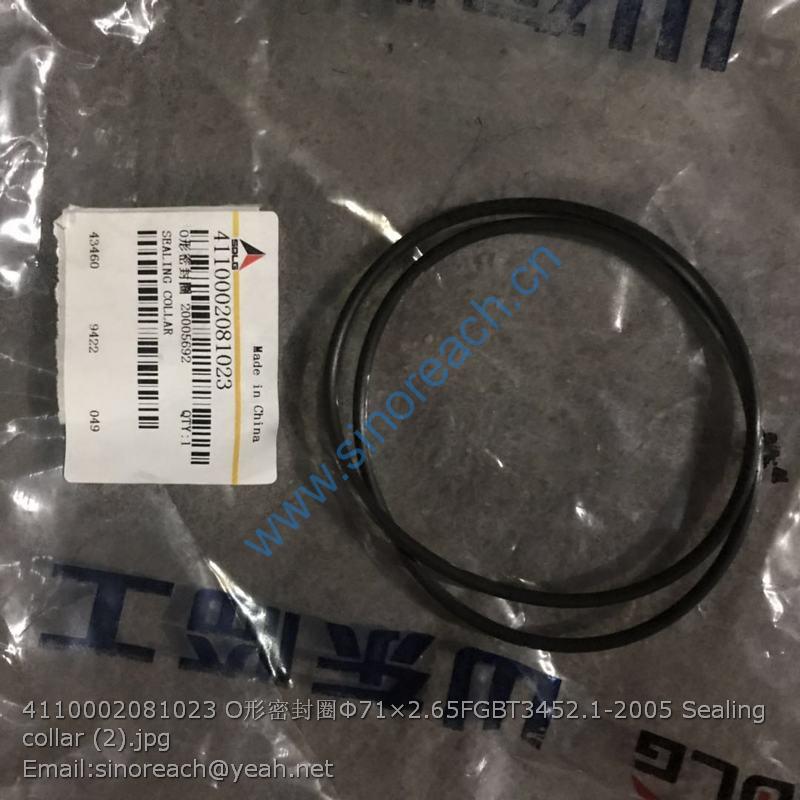

4110002081023 Sealing collar Φ71×2.65FGBT3452.1-2005 SDLG

1 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1
2 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 2
3 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2
4 29120015081 接头 Nipple Y 2
5 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2
6 29190007921 直通接头体 Nipple Y 1
7 29120014931 垫圈 Washer Y 15
8 4190000141 接头EW12LOMDA3C Nipple Y 1
9 29120009921 直通接头 Nipple Y 3
10 4041000592 软管LGB125-004055 Hose assembly Y 1
11 4120006641 先导阀总成DXS-00-B1 Control lever Y 1
12 4011001302 螺栓GB16674.1-M10*16flZnyc-8.8-480 Screw Y 3
13 4041000580 软管LGB125-004040 Hose assembly Y 1
14 4190000176 过渡接头EW10LOMDA3C Nipple Y 1
15 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2
16 29120027921 固定板 Anchor plate Y 1
17 4011001350 螺栓GB16674.1-M10*60flZnyc-8.8-480 Screw Y 2
18 4120005063 压力选择阀SF8-D Valve Y 1
19 29120015661 固定板 Anchor plate Y 1
20 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 4
21 4011001470 螺栓GB16674.1-M8*70flZnyc-8.8-480 Bolt Y 4
22 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4
23 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 4
24 29120018741 橡胶管夹 Clamp Y 2
25 29120018751 橡胶管夹 Clamp Y 2
26 29120015381 板 Plate Y 2
27 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2
28 29120007671 管夹 Clamp Y 4
29 4041001023 组合接头LGB143-01608 Nipple Y 1
30 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 2

31 29120015701 动臂大腔至选择阀胶管 Hose assembly Y 1
32 29120015401 接头 Nipple Y 8
33 4041001927 软管LGB125-003290 Hose assembly Y 1
34 4041002446 软管LGB125-003295 Hose assembly Y 1
35 4041001434 软管LGB125-003245 Hose Y 1
36 4041001451 软管LGB125-003250 Hose Y 1
37 29120015671 固定板 Anchor plate Y 1
38 4041000855 软管LGB165-004085 Hose Y 1
39 4041000508 螺塞LGB135-01824 Plug Y 2
40 4041000768 O形圈LGB168-11524 O-ring Y 2
41 4041000709 直接头LGB120-01616 Nipple Y 1
42 4041000780 O形圈LGB168-11324 O-ring Y 2
43 4041000831 直接头LGB120-01816 Nipple Y 1
44 4041000502 软管LGB125-005075 Hose assembly Y 1
45 4041000774 螺塞LGB135-01422 Plug Y 1
46 4011000344 螺栓JB999-M14*1.5*32EpZn-35 Bolt Y 1
47 29120029011 先导阀进油胶管 Hose assembly Y 1
48 29120024241 先导回油管 Hose Y 1
49 4011000366 螺栓JB999-M18*1.5*40EpZn-35 Bolt Y 1
50 29120015221 垫圈 Washer Y 2

29120009931 多路阀固定板 Anchor plate Y 1
2 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480 Bolt Y 4
3 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8
4 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 8
5 4120001964 多路阀ZL20DYL-03 Control valve Y 1
6 4011001509 螺栓GB16674.1-M12*45flZnyc-8.8-480 Bolt Y 6
7 4041000582 直接头LGB120-02630 Nipple Y 1
8 4041000685 O形圈LGB168-12631 O-ring Y 3
9 29120006551 组合直角接头 Nipple Y 2
10 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2
11 29120032051 压板 Plate Y 1
12 29120032041 橡胶管夹 Clamp Y 2
13 4011001467 螺栓GB5782-M10*80flZnyc-8.8-480 Bolt Y 2
14 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2
15 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4
16 4041000599 软管LGB165-014140 Hose assembly Y 1
17 4041000511 软管LGB128-012112 Hose assembly Y 1
18 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 4
19 4041000137 分体法兰LGB117-306400 Flange half Y 1
20 4030000279 O形圈GB3452.1-25.0*3.55G O-ring Y 1
21 29120006591 回油胶管 Hose assembly Y 1
22 4041000796 直接头LGB120-02628 Nipple Y 1
23 4041000779 O形圈LGB168-12331 O-ring Y 1
24 4041000510 软管LGB129-012045 Hose assembly Y 1
25 4041000774 螺塞LGB135-01422 Plug Y 2
26 4041000767 O形圈LGB168-11124 O-ring Y 2
27 29120030191 过渡块 Block Y 1
28 29120009921 直通接头 Nipple Y 1
29 29120014931 垫圈 Washer Y 4
30 4041000598 堵塞LGB142-01604 Plug Y 2

31 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 2
32 26130001471 螺塞 Plug Y 2
33 29120010461 组合直角接头 Elbow nipple Y 1
34 4030000504 O形圈GB3452.1-25.8*1.80G O-ring Y 1
35 4041000577 直接头LGB120-03633 Nipple Y 1
36 4041000765 O形圈LGB168-12931 O-ring Y 1
37 29120015401 接头 Nipple Y 2
38 4041001047 组合接头LGB143-01406 Nipple Y 1
39 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 1
40 4041001223 软管LGB125-003060 Hose assembly Y 1
