Description

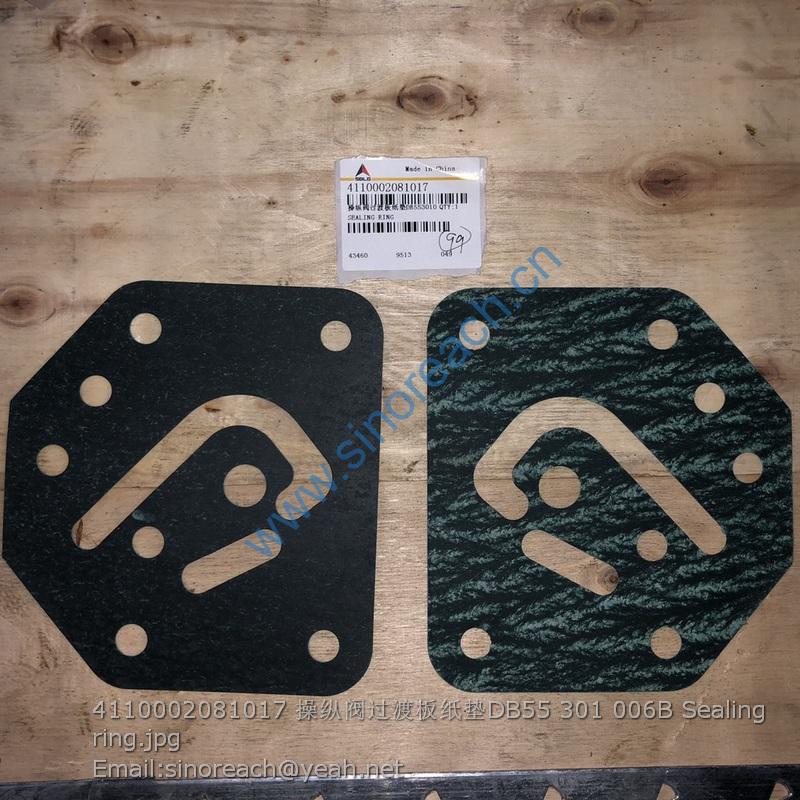

4110002081017 DB55 301 006B Sealing ring SDLG

31 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 2
32 4120004417 压力油过滤器PLF-H110*10 Hydraulic fluid filter Y 1
33 4190000149 接头GE12L3/4UNFOMDA3C Nipple Y 3
34 29220010271 直接头 Nipple Y 2
35 4041001988 软管LGB128-005080 Hose Y 1
36 4120004397 双路充液阀06-463-432 Check valve Y 1
37 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 2
38 29220018821 螺栓3/8-16UNC Screw Y 2
39 29220025251 充液阀支架 Bracket Y 1
40 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 2
41 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2
42 29220017621 直接头1-1/16-12UN-M18 Nipple Y 2
43 4041001990 软管LGB128-005095 Hose Y 1
44 29170125191 压板 Plate Y 2
45 4041002638 管夹LGB172-A10*20 Clamp Y 4
46 4011001286 螺栓GB16674.1-M8*55flZnyc-8.8-480 Screw Y 4
47 4041000150 直接头LGB120-01814 Nipple Y 1
48 4041000767 O形圈LGB168-11124 O-ring Y 1
49 4011001305 螺栓GB16674.1-M8*45flZnyc-8.8-480 Screw Y 2
50 29220009221 接头块 Block Y 1
51 4120004340 制动尾灯压力开关 Switch Y 1
52 29220018791 至后桥制动油管 Hose Y 1
53 29220018781 至前桥制动油管 Hose Y 1
54 4120005111 蓄能器NXQ-A-1.6/31.5-L-Y-B Accumulator Y 2
55 29220022781 缓冲套 Rubber sleeve Y 2
56 29220022801 蓄能器固定板-152 Plate Y 2
57 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 2
58 29270007792 橡胶套 Rubber sleeve Y 1
59 29220018831 护罩底板 Protecting cover Y 1
60 4011001314 螺栓GB5783-M8*12flZnyc-8.8-480 Screw Y 4

61 29220024551 护罩盖板 Protecting cover Y 1
62 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4
63 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 8
64 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 4
65 29220025261 蓄能器支架 Bracket Y 1
66 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480 Bolt Y 6
67 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 6
68 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 6
69 4041001553 软管LGB125-005050 Tube Y 1
70 4120004417001 压力油过滤器滤芯LH0110D010BN/HC Filter insert Y 1
71 4120002171 三通接头ET12LOMDCF Three-way nipple Y 1
72 4041001837 软管LGB128-405039 Hose assembly Y 1

1 4120002705 蓄能器PED1-1.0L-31.5 Accumulator Y 1
2 29120017111 缓冲套 Rubber sleeve Y 1
3 29230010611 蓄能器固定板-114 Plate Y 1
4 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2
5 4120002703 接头GE12LR3/4EDOMDA3C Nipple Y 1
6 4041001063 组合接头LGB143-01810 Nipple Y 1
7 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 1
8 4041002128 软管LGB127-005075 Hose assembly Y 1
9 4190000149 接头GE12L3/4UNFOMDA3C Nipple Y 5
10 4041001989 软管LGB128-005033 Hose Y 1
11 4120004342 制动阀快 Brake valve Y 1
12 4011000587 螺栓GB16674-M5*45EpZn-8.8 Screw Y 4
13 4120002712 液压驻车制动缸 Cylinder Y 1
14 29230010981 固定板 Plate Y 1
15 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 2
16 29230008961 制动阀块固定板 Plate Y 1
17 4041000824 直接头LGB155-01618 Nipple Y 1
18 4030000511 O形圈GB3452.1-17.5*2.65G O-ring Y 1
19 29230009141 驻车制动油缸支架 Bracket Y 1
20 4011001326 螺栓GB5783-M20*40flZnyc-8.8-480 Screw Y 2
21 4015000434 垫圈GB97.1-20flZnyc-300HV-480 Washer Y 2
22 4041000152 软管LGB125-005120 Hose assembly Y 1
23 4041000766 直接头LGB120-01818 Nipple Y 1
24 4041000768 O形圈LGB168-11524 O-ring Y 1
25 4041002710 软管LGB128-005045 Hose assembly Y 1
26 4120004312 停车制动低压报警开关 Pressure switch Y 1
27 4190000143 三通接头EL12LOMDA3C Three-way nipple Y 1
28 4120008122 紧急制动开关PS61-FS70BARF Pressure switch Y 1
29 4120008121 行车制动低压报警开关PS61-FS105BARF Pressure switch Y 1
