Description

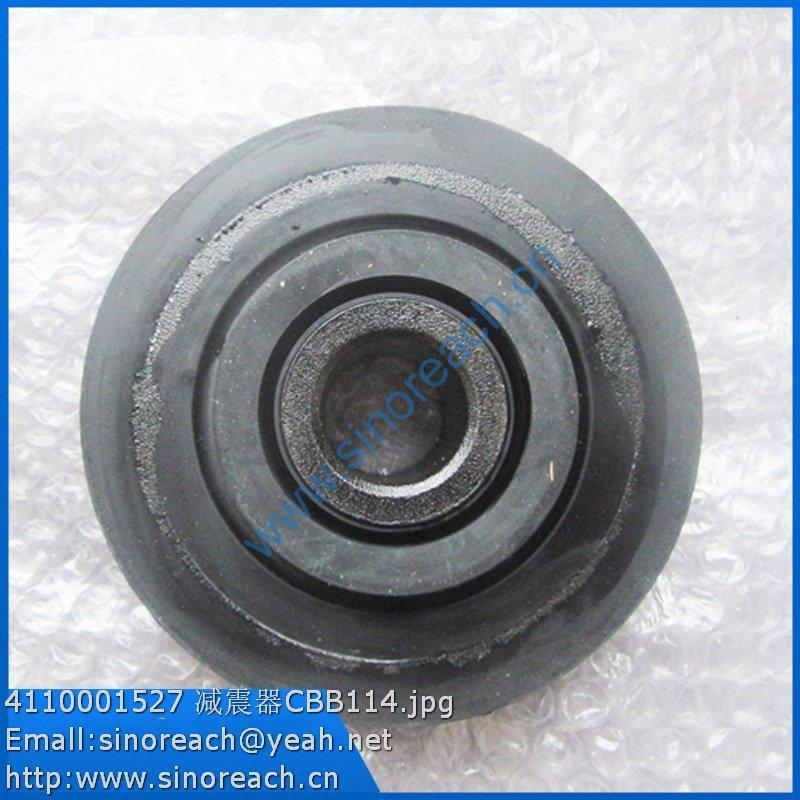

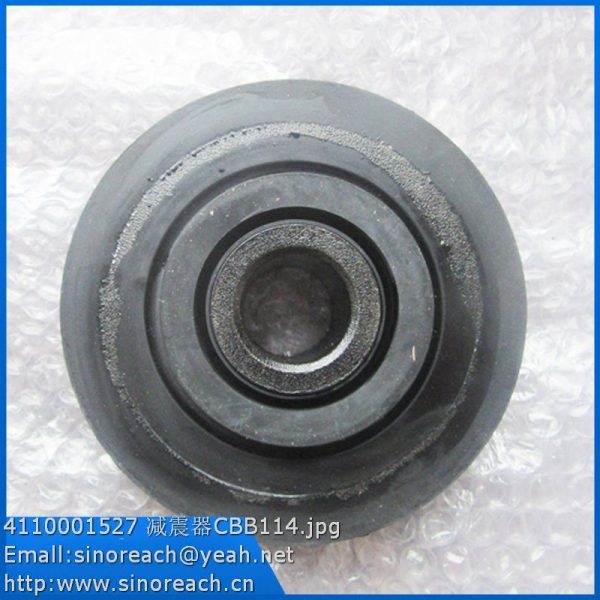

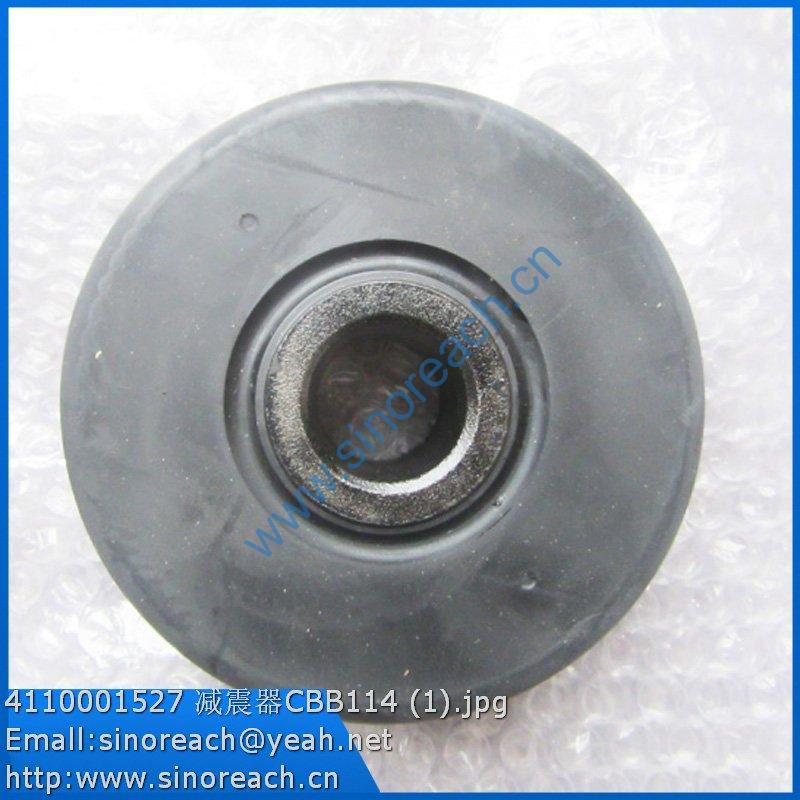

4110001527 shock absorber CBB114

4011000458 BOLT GB16674-M8*20Ep.Zn-8.8
29130004081 CLAMP
4011000080 BOLT GB5783-M10*16EpZn-8.8
4015000162 WASHER GB97.1-10EpZn-300HV
4011000490 U-BOLT JB/ZQ4321-25Zn-Q235A·F
4013000007 NUT GB6170-M10EpZn-8
29130004091 STEADY REST A
29130008951 OIL PIPE OF LIFTING CYLINDER
29130004111 STEADY REST B
29130004121 BIG CHAMBER STEEL TUBE OF RIGHT LIFTING CYLINDER
29130004131 OIL TUBE OF SMALL CHAMBER RIGHT LIFTING CYLINDER
29130008731 SMALL CHAMBER TUBE OF RIGHT LIFTING CYLINDER
F4-2914000501 DUMP CYLINDER ASSENBLY
29140009881 INDICATING ROD OF BUCKET
4011000081 BOLT GB5783-M10*20EpZn-8.8
4015000197 WASHER GB96.1-10EpZn-300HV
4120000868 TILT CYLINDER HSGF-140*80*502-952
29130000111 CLAMP
4011000105 BOLT GB5783-M8*20EpZn-8.8
4015000072 WASHER GB97.1-8EpZn-300HV
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
29140004031 BIG CHAMBER TUBE OF TILT CYLINDER
4030000026 O-RING GB3452.1-32.5*3.55G
4011000309 BOLT GB16674-M10*50EpZn-8.8
4011000473 BOLT GB16674-M10*55EpZn-8.8
29140010861 CLIP
4011000488 BOLT GB16674-M10*16EpZn-8.8
29140010871 STEEL PIPE
4041000043 FLANGE LGB117310490
4011000475 BOLT GB16674-M10*30EpZn-8.8
29140010771 FRONT END PLATE
4011000102 BOLT GB5783-M8*16EpZn-8.8
4015000256 WASHER GB96.1-8EpZn-300HV
4041001372 TUBE LGB106-010125
4041001384 TUBE LGB106-010126
29140010891 STEEL PIPE
F5-2910001016 HYDRAULIC TANK ASSEMBLY
29100010171 HYDRAULIC TANK BODY
4120000092 OIL LEVEL YWZ-150
29100010291 FILTER
4011000461 BOLT GB16674-M8*16EpZn-8.8
29100010281 HOOD
4011000449 BOLT GB16674-M16*35EpZn-8.8
4030000164 O-RING GB3452.1-60.0*3.55G
29100010321 FLANGE
4030000232 O-RING GB3452.1-170*3.55G
4011000475 BOLT GB16674-M10*30EpZn-8.8
4011000458 BOLT GB16674-M8*20Ep.Zn-8.8
29100010351 OIL-RETURN FLANGE
4011000455 BOLT GB16674-M8*25EpZn-8.8
4190000008 RING MAGNET LG03-CT76*32*15
29100004061 STRAIN CORE
29100000051 SPRING
29100000041 FLANGE CAP
4120000452 OIL-SUPPLYING FILTER SFM-323M
29100008361 FLANGE SEAT
4030000452 O-RING GB3452.1-160*3.55G
4011000474 BOLT GB16674-M10*25EpZn-8.8
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
29100005041 SEALING PLATE
4120001088 GAS-EXCHANGE FILTER L1.00807-51
29100009991 BLIND FLANGE
4030000233 O-RING GB3452.1-65*3.55G
4120000099 BALL VALVE
29100009061 FITTING
4015000256 WASHER GB96.1-8EpZn-300HV
4011000105 BOLT GB5783-M8*20EpZn-8.8
F6-4120000868 DUMP CYLINDER
4120000868008 BUSHING
4120000868010 CYLINDER BADY
4120000868007 SEALING MEMBER AGGREGATE
4120000868007 SEALING MEMBER AGGREGATE
4120000868014 PISTON
4120000868007 SEALING MEMBER AGGREGATE
4120000868016 CYLINDER COVER
4120000868007 SEALING MEMBER AGGREGATE
4120000868007 SEALING MEMBER AGGREGATE
4120000868007 SEALING MEMBER AGGREGATE
4120000868007 SEALING MEMBER AGGREGATE
4014000147 SCREW GB70.1-M12*45EpZn-10.9
4015000026 WASHER GB93-12-65Mn
4120000868007 SEALING MEMBER AGGREGATE
4120000868007 SEALING MEMBER AGGREGATE
4120000868017 PISTON ROD
4120000868019 HOLDING BLOCK
4120000868020 SPHERICAL PLAIN BEARING
F7-4120000868 DUMP CYLINDER（371368）
4120000868102 PISTON ROD HSGF-180/90*542-1
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
4120000868104 CYLINDER COVER HSGF-140/80*502-2
4120000868101 SEALING MEMBER AGGREGATE
4120000868106 CYLINDER BODY HSGF-180/90*542-3
4120000868101 SEALING MEMBER AGGREGATE
4120000868101 SEALING MEMBER AGGREGATE
