Description

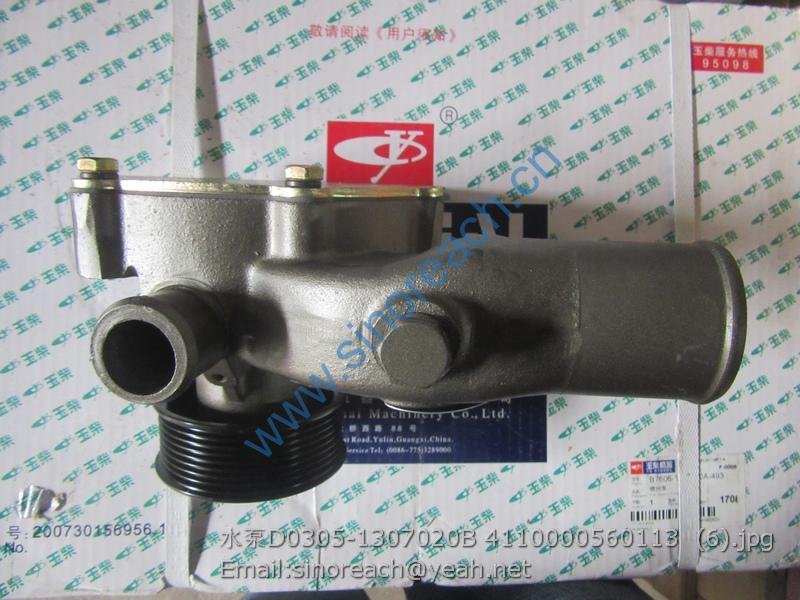

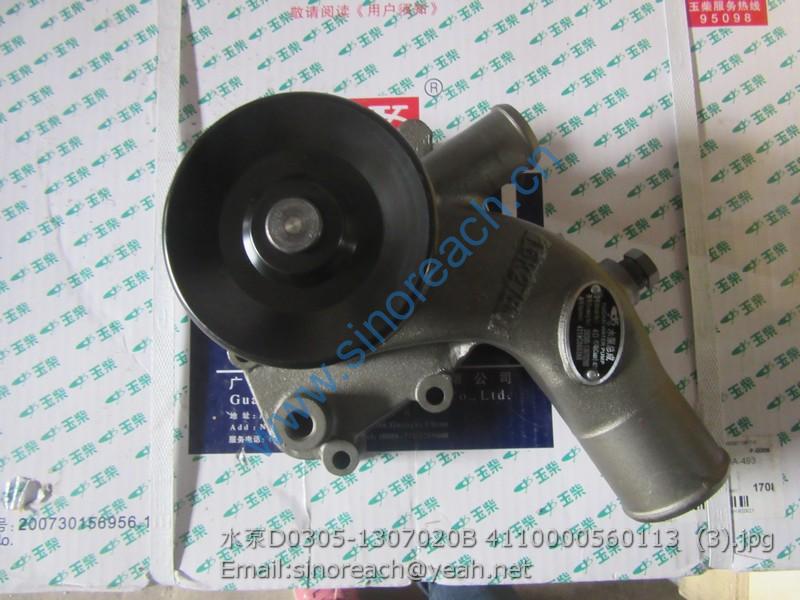

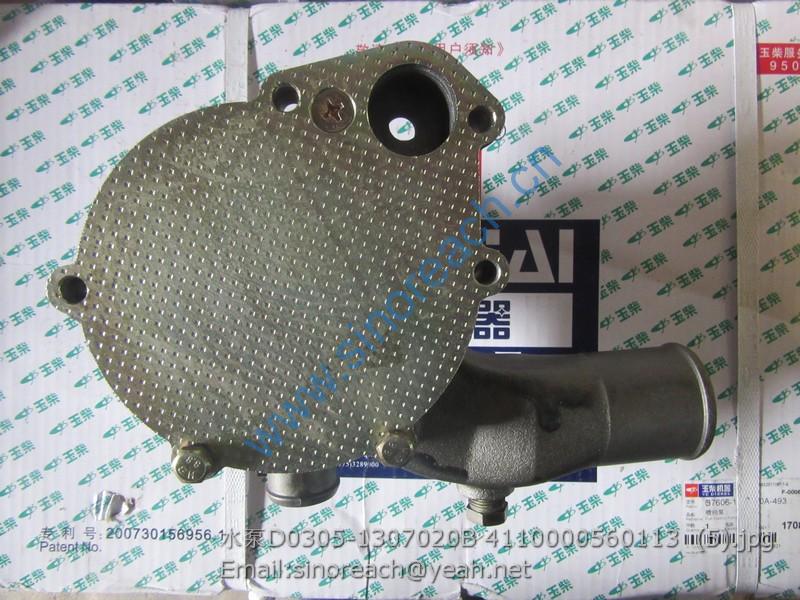

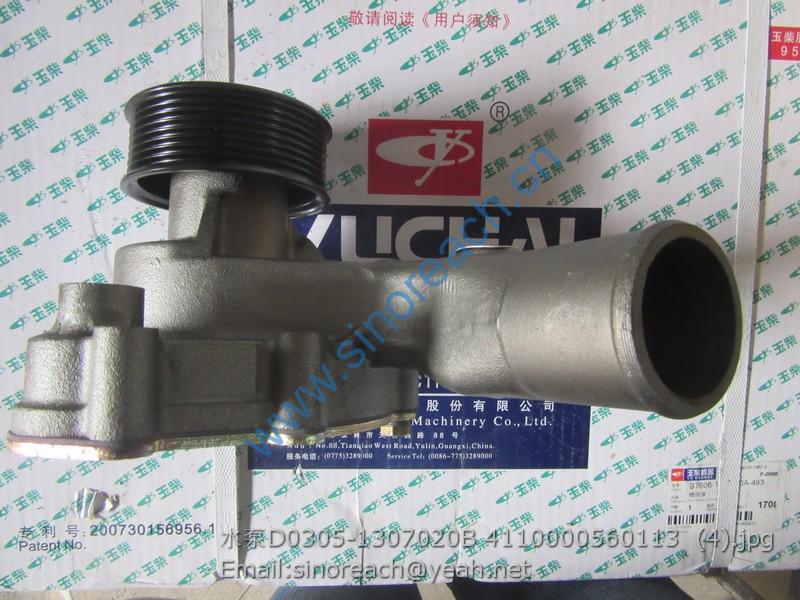

4110000560113 D0305-1307020B WATER PUMP SDLG A31-4110000560 D7200-1307000/06
32 4110000011227 齿轮ZL50.2.1-10 Gear Y 1
33 4110000011236 油温表接头 ZL50.2.1-9 Nipple Y 1
34 4110000011241 螺塞ZL50.2.1-29 Plug Y 1
35 4110000011234 管接头ZL50.2.1-15 Nipple Y 2
36 4110000011235 O型密封圈30×3.1 GB1235-76 O-ring Y 3
37 4110000011244 接头ZL50.2.1-19 Nipple Y 1
38 4110000011226 胶垫ZL50.2.1-6 Gasket Y 1
39 4110000011225 垫板ZL50.2.1-5 Plate Y 1
40 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 1 4011000448 螺钉GB70.1-M8*30EpZn-8.8 Screw Y 6
2 4015000036 垫圈GB93-8-65Mn Spring washer Y 6
3 4110000507052 上盖QF60M33G-1-01 Cover Y 1
4 4110000507053 旁通阀QF60M33G-1-02 By-pass valve N 1
5 4110000507054 O型圈QF60M33G-1-03 O-ring Y 1
6 4110000507007 滤清器滤芯（传动油滤清器滤芯） Filter insert Y 1
7 4110000507055 弹簧QF60M33G-1-06 Spring Y 1
8 4110000507056 筒体QF60M33G-1-05 Filter cartridge Y 11 4110002521101 螺栓GB5786-M12*1.5*22EpZn-10.9 Screw N 1
2 4015000026 垫圈GB93-12-65Mn Spring washer Y 1
3 4110000160107 弹性板0-07 Plate N 1
4 4110002521102 弹性板0-06 Plate N 1
5 4110000160106 弹性板总成0-10 Plate N 1
6 4110002521103 液力变矩器YJHSW315E-1-YB-245/0-0 Torque converter N 1
7 4110002521104 壳体0-04 Housing N 1
8 4110000160099 衬垫YB-1/0-012 Gasket N 1
9 4110000160104 观察盖YB-1/0-014 Cover N 1
10 4015000036 垫圈GB93-8-65Mn Spring washer Y 1
11 4011001523 P-螺栓GB5781-M8*16EpZn-4.8 Screw Y 1
12 4021000013 滚动轴承GB276-6016 Ball bearing Y 1
13 4015000242 P挡圈GB893.1-125-65Mn Retaining ring Y 1
14 4110002521105 导轮座YB-8/0-01 Seat N 1
15 4015000025 垫圈GB93-10-65Mn Spring washer Y 1
16 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 1
17 4110000160092 阀芯YB-1/0-06 Valve rod N 1
18 4110000160091 调整垫片YB-1/0-05 Shim N 1
19 4110000160094 弹簧ⅡYB-1/0-08 Spring N 1
20 4110000160093 盖板YB-1/0-07 Plate N 1
21 4110000160090 弹簧ⅠYB-1/0-04 Spring N 1
22 4110000160089 阀盖YB-1/0-03 Cover N
