Description

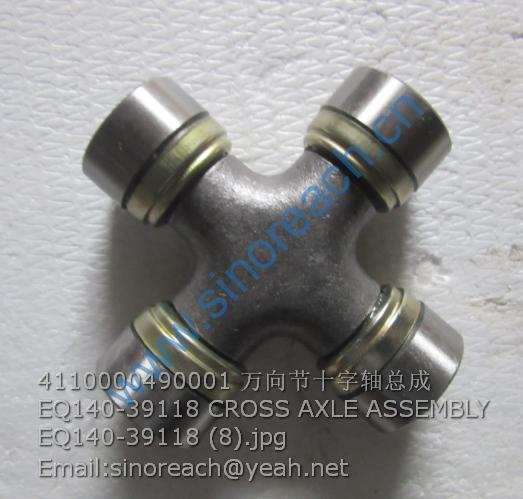

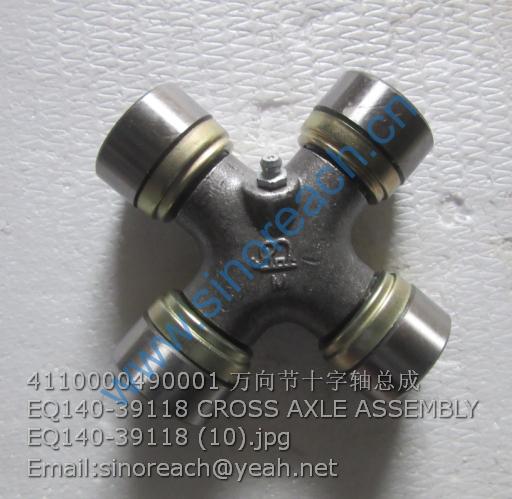

4110000490001 cross joint spider EQ140-39118 FOR SDLG Wheel loader parts

1 3050900002 螺栓 Bolt Y 20
2 4013000073 螺母GB889.2-M14*1.5EpZn-8 Lock nut Y 24
3 2050900055 前传动轴 Propeller shaft Y 1
4 2050900054 中间支承 Propeller shaft support Y 1
5 4011000241 螺栓GB5785-M14*1.5*55EpZn-8.8 Bolt Y 4
6 4015000177 垫圈GB97.1-14EpZn-300HV Washer Y 4
7 2050900053 中间传动轴 Propeller shaft Y 1
8 3050900001 螺栓 Bolt Y 4
9 3050900006 止动垫圈 Extension bar Y 2
10 4110000490 传动轴CDZP-343.5 Propeller shaft Y 1
11 4110002170001 突缘叉2201D-023D Flange yoke Y 4
12 4110000177001 突缘叉2201C-023 Link yoke Y 2
13 4120003178016 油杯M6 GB1152-89 Lubricating nipple Y 1
14 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 2
15 4110000490001 万向节十字轴总成EQ140-39118 Spider Y 6
16 4110002170006 卡簧2201C-026 Retaining ring Y 24

1 29090009651 A507后驱动桥总成 Axle Y 1
2 4011000521 螺栓GB5785-M24*2*95EpZn-8.8 Bolt Y 8
3 4013000157 螺母GB889.2-M24*2EpZn-8 Lock nut Y 8
4 29070016071 车轮总成 Wheel assembly N 2
5 4190000413 轮辋 Rim Y 1
6 4110000003 轮胎GB2980-17.5-25 Tire N 1

1 29070015331 轮边减速器 Hub reduction N 2
2 4120001739 制动钳 Brake caliper Y 2
3 4120001740 放气嘴 Nipple Y 4
4 29070000101 螺栓 Bolt Y 8
5 4015000030 垫圈GB93-20-65Mn Spring washer Y 8
6 2050900010 后桥壳总成 Rear axle casing Y 1
7 29070000051 透气管 Tube Y 1
8 4013000078 螺母GB6173-M10*1EpZn-05 Nut Y 1
9 4011000124 螺栓GB5786-M12*1.25*35EpZn-10.9 Bolt Y 14
10 4015000026 垫圈GB93-12-65Mn Spring washer Y 14
11 2050900033 后主传动 Final drive Y 1
12 3090900004 制动盘 Brake disc Y 2
13 3050900050 半轴 Shaft half Y 2
14 4011000452 螺栓GB5786-M18*1.5*50EpZn-8.8 Bolt Y 20
15 4015000029 垫圈GB93-18-65Mn Spring washer Y 20
16 3050900003 轮辋螺母 Nut Y 20
17 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
18 29090009661 A507后桥标牌 Name plate N 1
19 29070012481 磁性螺塞 Plug Y 2

1 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1
2 3050900007 垫圈 Washer Y 1
3 2050900011 输入法兰 Connection flange Y 1
4 4030000048 骨架油封HG4-692-SG70*95*10 Sealing ring Y 1
5 3050900009 密封盖 Sealing cover Y 1
6 3050900012 轴套 Sleeve Y 1
7 4011000067 螺栓GB5782-M14*55EpZn-8.8 Bolt Y 7
8 4015000027 垫圈GB93-14-65Mn Spring washer Y 7
9 4021000028 滚动轴承GB297-31310 Roller bearing Y 1
10 3050900172 垫片 Shim Y 1
11 3050900013 轴承套 Bearing bushing Y 1
12 3050900011 调整垫片 Shim Y 1
13 29070010611 调整垫片 Shim Y 4
14 29070010621 调整垫片 Shim Y 3
15 29070010631 调整垫片 Shim Y 1
16 3050900023 轴承座 Bearing seat N 2
17 4021000029 滚动轴承GB297-31311 Roller bearing Y 1
18 3050900015 主动螺旋伞齿轮 Crown wheel N 1
19 7300000287 托架总成 Bracket Y 1
20 3050900017 锥齿轮垫片 Thrust washer Y 4
21 3050900018 锥齿轮 Differential pinion Y 4
22 3050900019 调整螺母 Nut Y 2
23 4021000035 滚动轴承GB297-32215 Roller bearing Y 2
24 3050900020 差速器左壳 Differential housing N 1
25 3050900021 半轴齿轮 Differential side gear Y 2
26 3050900022 半轴齿轮垫片 Shim Y 2
27 3050900024 锁紧片 Lock washer Y 2
28 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 2
29 4015000025 垫圈GB93-10-65Mn Spring washer Y 2
30 29090007951 螺栓 Screw Y 8
