Description

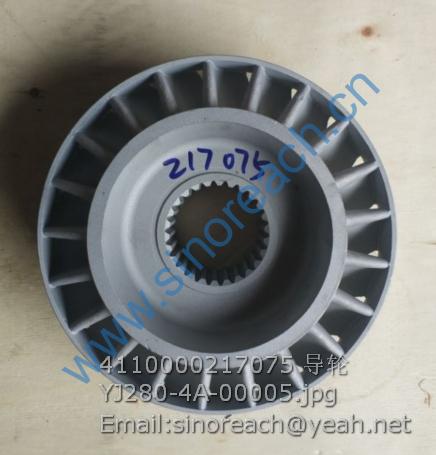

4110000217075 LEADING WHEEL YJ280-4A-00005 SDLG
4120000555 动臂油缸 HSGF-165*90*767-1427 LIFTING CYLINDER HSGF-165*90*767-1427 2
2 4011000473 螺栓 GB16674-M10*55EpZn-8.8 BOLT GB16674-M10*55EpZn-8.8 8
3 2913001053 右动臂缸小腔钢管 OIL TUBE TO SMALLL CHAMBER OF LEFT LIFTING CYLINDER 1
4 4030000026 O 形圈 GB3452.1-32.5*3.55G O-RING GB3452.1-32.5*3.55G 14
5 2913001055 左动臂缸小腔钢管 OIL TUBE TO SMALLL CHAMBER OF RIGHT LIFTING CYLINDER 1
6 2913001036 动臂联三通钢管 THREE-WAY OIL TUBE 2
7 4011000475 螺栓 GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 56
8 4030000029 O 形圈 GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G 2
9 2913001038 阀至左动臂缸大腔钢管 OIL TUBE OF LIFTING CYLINDER (L) 1
10 2913001074 左支架 FIX PLATE（L） 1
11 4011000479 螺栓 GB16674-M12*30EpZn-8.8 BOLT GB16674-M12*30EpZn-8.8 4
12 4041000958 U 形螺栓 LGB159-03040 U-BOLT LGB159-03040 6
13 4013000007 螺母 GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8 12
14 4015000162 垫圈 GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV 12
15 2913001041 阀至左动臂缸小腔钢管 OIL TUBE OF LIFTING CYLINDER (L) 1
16 4011000458 螺栓 GB16674-M8*20EpZn-8.8 BOLT GB16674-M8*20EpZn-8.8 8
17 2913000011 管夹 CLAMP 2
18 4041000043 分体法兰 LGB117-310490 FLANGE LGB117-310490 8
19 4041001118 软管 LGB107-010165 PIPE LGB107-010165 2
20 2913001057 动臂缸胶管 OIL PIPE OF LIFTING CYLINDER 2
21 2913001037 管夹 CLAMP 8
22 4041000869 缓冲套 LGB123-0740 CUSHION LGB123-0740 8
23 4013000033 螺母 GB6170-M8EpZn-8 NUT GB6170-M8EpZn-8 4
24 4015000072 垫圈 GB97.1-8EpZn-300HV WASHER GB97.1-8EpZn-300HV 4
25 2913001045 阀至右动臂缸小腔钢管 OIL TUBE OF LIFTING CYLINDER (R) 1
26 4015000168 垫圈 GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV 4
27 2913001070 右支架 FIX PLATE（R） 1
28 2913001043 阀至右动臂缸大腔钢管 OIL TUBE OF LIFTING CYLINDER (R) 1
29 4041001018 底板 LGB160-3040 PADDING LGB160-3040 6
1 4011000447 螺栓 GB16674-M10*20EpZn-8.8 BOLT GB16674-M10*20EpZn-8.8 2
2 4015000162 垫圈 GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV 2
3 4013000007 螺母 GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8 1
4 2914000002 固定板 CLAMPING PLATE 1
5 4120000554 转斗油缸 HSGF-180*90*538-1092 TILT CYLINDERHSGF-180*90*538-1092 1
6 2914000003 转斗指示杆 INDICATING ROD OF BUCKET 1
7 4011000488 螺栓 GB16674-M10*16EpZn-8.8 BOLT GB16674-M10*16EpZn-8.8 2
8 2914000004 转斗指示板 CONDUIT OF INDICATING ROD 1
9 4041000169 软管 LGB106-012165 TUBE LGB106-012165 2
10 4041000056 分体法兰 LGB117-312550 FLANGE LGB117310490 4
11 4011000475 螺栓 GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 24
12 4030000029 O 形圈 GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G 7
13 4041000774 螺塞 LGB135-01422 PLUG LGB135-01422 1
14 4041000767 O 形圈 LGB168-11124 O-RING LGB168-11124 1
15 4011000309 螺栓 GB16674-M10*50EpZn-8.8 BOLT GB16674-M10*50EpZn-8.8 2
16 4011000473 螺栓 GB16674-M10*55EpZn-8.8 BOLT GB16674-M10*55EpZn-8.8 2
17 2914000005 转斗缸大腔钢管 BIG CHAMBER TUBE OF TILT CYLINDER 1
18 2914000012 压板 CLAMPING PLATE 2
19 2914000013 橡胶板 RUBBER SPACER 2
20 2914000929 橡胶板 RUBBER SPACER 2
21 4011000528 螺栓 GB16674-M10*100EpZn-8.8 BOLT GB16674-M10*100EpZn-8.8 4
22 2914000972 转斗联过渡钢管 A OIL TUBE ASSEMBLY OF TILT CYLINDER A 1
23 4041000027 分体法兰 LGB117-312551 FLANGE LGB117-312551 2
24 2914000974 转斗联过渡钢管 B OIL TUBE ASSEMBLY OF TILT CYLINDER B
