Description

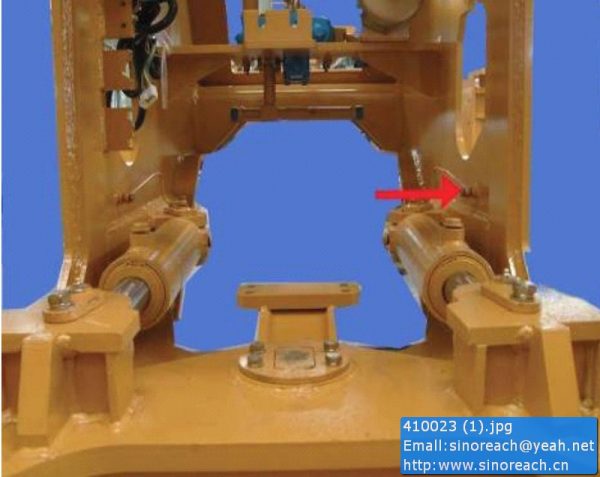

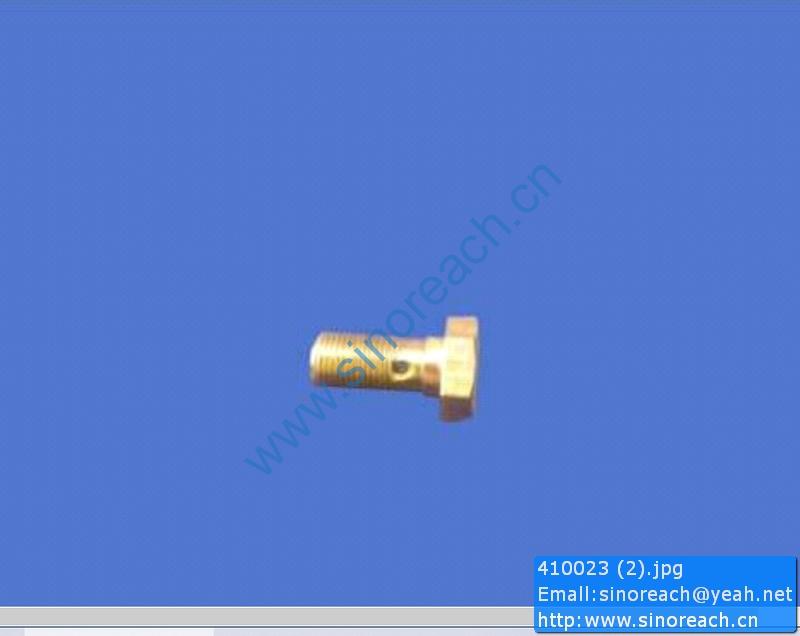

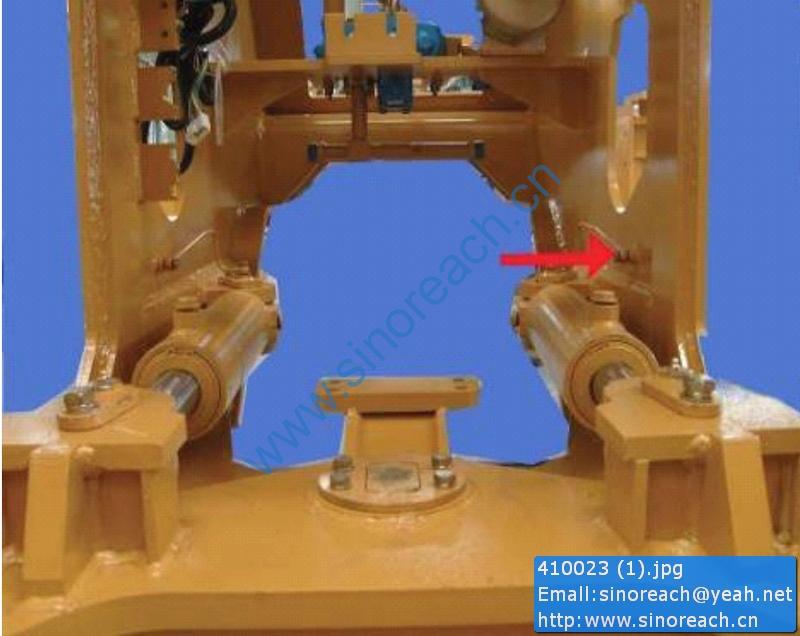

410023 Hollow bolt for CDM843 CDM855 CDM856 spare parts

1 WZ30-25.1.1.1 XZ油门操纵阀 Governor Control Valve 2
2 WZ30-25.1.1-2 软轴支架二 Cable Shaft Bracket Ⅱ 1
3 WZ30-25.1.1.3 软轴二 Cable Shaft Ⅱ　 1
4 WZ30-25.1.1-1 软轴支架一 Cable Shaft Bracket Ⅰ 1
5 GB5783-86 螺栓 M6×25 Bolt M6×25 6
6 GB93-87 垫圈 6 Washer 6 11
7 GB6170-86 螺母 M6 Nut M6 11
8 GB95-85 垫圈 6 Washer 6 3
9 GB882-86 销轴 B6×22 Pin Shaft B6×22 3
10 GB91-86 开口销 2×12 Pin 2×12 3
11 WZ30-25.1.1.2 软轴一 Cable Shaft Ⅰ　 1
12 GB5783-86 螺栓 M6×16 Bolt M6×16 4
13 WZ30-25.1.1.4 连接板 Connecting Plate 1
14 WZ30-25.1.1-3 销轴 Pin Shaft 1

1 GB1160.2-89 油标 B32 Oil Mark B32 2
2 WZ30-25.1A.2.1 燃油箱体 FUEL TANK BODY 1
3 ZL30F.1-14 过油螺栓 Female Screw 1
4 JB982-77 组合垫圈 14 Seal Washer 14 2
5 GB3452.1-92 O型圈 75×2.65G O-Ring 75×2.65G 1
6 WZ30-25.1A.2.2 加油管 Pump Oil Pipe 1
7 WZ30-25.1A.2-4 加油胶管 Pump Oil Hose 1
8 WZ30-25.1A.2-3 固定卡 Fixed Clip 1
9 W2/12.7 喉箍(Φ38～57) Clamp(Φ38～57) 2
10 WZ30-25.1A.2-2 接管 Connector 1
11 WZ30-25.1A.2-1 加油螺帽 Pump Oil Nut 1
12 GB5783-86 螺栓 M8×20 Bolt M8×20 4
13 GB93-87 垫圈 8 Washer 8 4
14 GB5783-86 螺栓 M16×40 Bolt M16×40 6
15 GB93-85 垫圈 16 Washer 16 6
16 GB95-87 垫圈 16 Washer 16 6
17 JB982-77 组合垫圈 24 Seal Washer 24 1
18 ZL50G.1B.1A-2 放油塞 Bleeder Plug 1
