Description

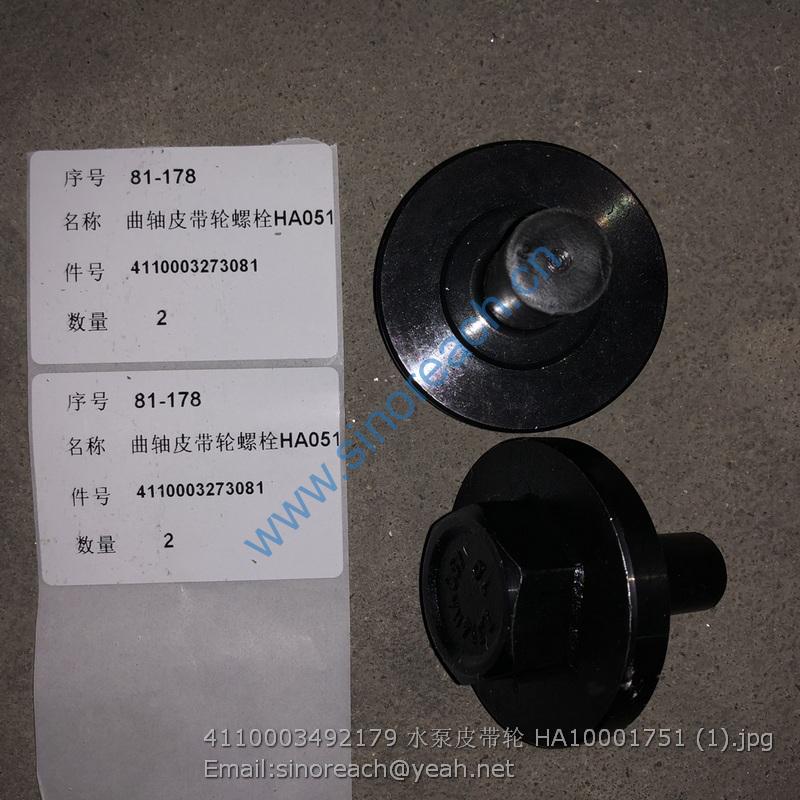

4110003273081 Bolt

1 4120007323001 螺钉M5X20 CL0211120803 Screw N 4
2 4120007323002 螺钉M5X12 CL0211196211 Screw N 4
3 4110000186589 螺母GB/T6170-M10 Nut N 2
4 4120007008017 10平垫GB/T97.1 Washer Y 2
5 4120007323004 压盘分总成CL3767990 Plate N 2
6 4120007322001 螺母M5 CL02612107 Nut N 7
7 4120007323006 垫圈CL3768001 Washer N 3
8 4120007323007 锚板分总成CL3768059 Plate N 3
9 4120007323008 接触销CL91271118 Pin N 1
10 4120007323009 电磁铁CL91271127 Magnet N 3
11 4120007323010 垫片CL91271122 Shim N 6
12 4120007323011 电磁铁托架CL3767922 Plate N 3
13 4014000475 P-螺钉GB70.1-M4*10EpZn-8.8 Screw Y 3
14 4015000302 垫圈GB96.1-4EpZn-300HV Washer Y 3
15 4013000122 P-螺母GB6172.1-M6EpZn-05 Nut Y 1
16 4120007322002 弹性螺钉CL3764809 Screw N 1
17 4120007323013 堵塞VSTI10X1.ORCF Plug Y 1
18 4120007323014 堵塞VSTI14X1.5ORCF Plug Y 1
19 4120007322003 螺柱CN221200032 Stud N 1
20 4120007322004 螺柱CN221200031 Stud N 2
21 4120007323017 阀体CL91223818-04 Valve body N 1
22 4120007323018 阀体CL91223251-04 Valve body N 1
23 4120007323019 O形圈CL066636127 O-ring N 2
24 4120007323020 连接板CN221200122 Plate N 1
25 4120007323023 操作杆CL91271126 Adjusting bar N 1
26 4120007323022 手柄球CL3766896 Handle ball N 2
27 4120007323021 操作杆CL91271123 Adjusting bar N 1
28 4120007323024 螺钉M4X20 CL91257024 Screw N 8
29 4016000410 P-销GB879.2-3*8 Spring pin Y 6
30 4120007323025 连接器总成CN221200022 Tool N 1

1 4120007323026 柱塞分总成CL9121590137 Piston N 4
32 4120007323027 阀杆分总成CN221200052 Valve rod N 4
33 4120007323028 弹簧CL91283768 Spring N 4
34 4120003693022 标牌CN221200047 Name plate N 1

1 4041000767 O形圈LGB168-11124 O-ring Y 6
2 4041000604 直接头LGB120-01614 Nipple Y 1
3 4041000133 直接头LGB120-01414 Nipple Y 4
4 4041000150 直接头LGB120-01814 Nipple Y 1
5 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 3
6 4120007322 先导阀总成PCL402-4MBM3H3B-C Control lever Y 1
7 29320010911 操纵箱上盖 Cover Y 1
8 4014000524 螺钉GB818-M6*16flZnyc-8.8-480 Screw Y 4
9 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 4

1 4120009098 动臂油缸HSGF-170*90*757-1378B Lifting cylinder Y 2
2 29130021711 右动臂缸小腔钢管 Pipe Y 1
3 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 16
4 4011001298 螺栓GB16674.1-M10*55flZnyc-8.8-480 Screw Y 8
5 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 8
6 29130013141 固定板 Anchor plate Y 2
7 4041001017 U形螺栓LGB159-13040 U-bolt Y 4
8 4041001018 底板LGB160-3040 Bracket Y 4
9 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 24
10 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 28
11 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4
12 29130013751 右动臂缸大腔钢管 Pipe Y 1
13 29130014321 胶管 Hose Y 4
14 29130013701 举升联右大腔钢管 Pipe Y 1
15 4041000026 分体法兰LGB117-310491 Flange half Y 12
16 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 44
17 4041000958 U形螺栓LGB159-03040 U-bolt Y 8
18 29130013691 支架 Bracket Y 2
19 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 8
20 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8
21 29130013721 举升联右小腔钢管 Pipe Y 1
22 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 12
23 4011001354 螺栓GB5782-M10*90flZnyc-8.8-480 Screw Y 4
24 29130013771 举升联左小腔钢管 Pipe Y 1
25 29130013781 举升联左大腔钢管 Pipe Y 1
26 29130010371 管夹 Clamp Y 4
27 4041000869 缓冲套LGB123-0740 Rubber sleeve Y 4
28 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 2
29 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 2
30 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2
