Description

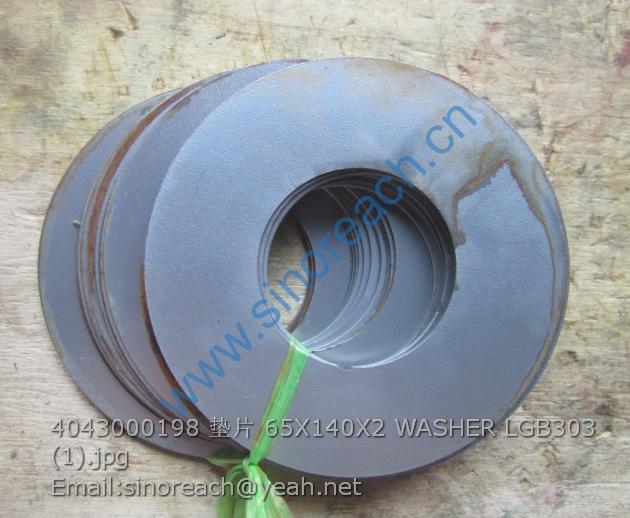

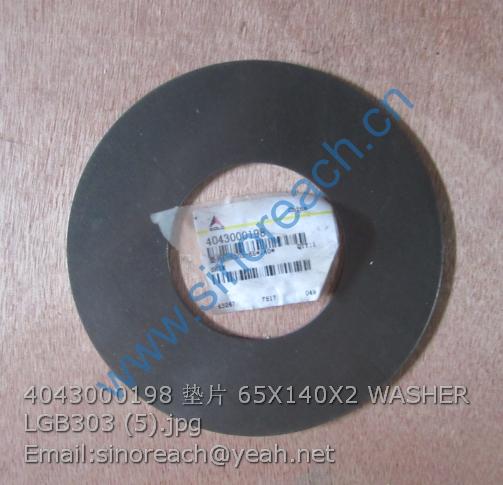

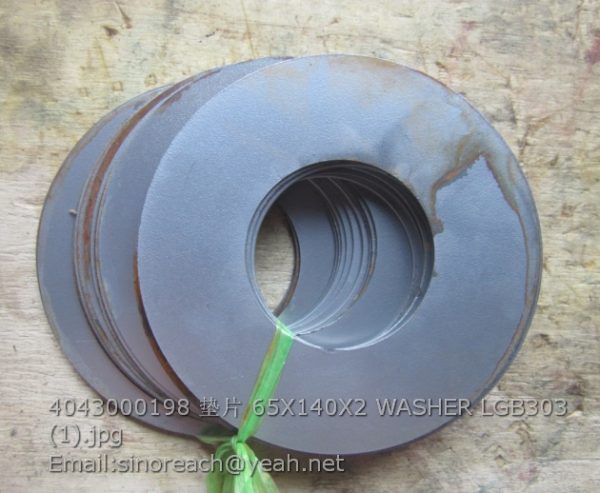

4043000198 LGB303-65*140*2 shim SDLG LG938L LG936L WHEEL LOADER PARTS
1 29070024991 轮边减速器 Hub reduction N 2
2 29070024161 轮辋螺母M18 Nut Y 20
3 29070019782 半轴 Shaft half Y 2
4 29070019772 桥壳总成 Axle casing Y 1
5 29070019762 主传动总成 Final drive Y 1
6 4011001430 螺栓GB5786-M12*1.25*35flZnyc-10.9- Bolt Y 14
7 29070015981 垫圈 Washer Y 14
8 4016000124 销GB119.2-10u8*30 Pin Y 2
9 29070023071 透气嘴 Breather cap Y 1
10 4013000425 螺母GB6173-M10*1flZnyc-05-480 Nut Y 1
11 29070021251 前桥标牌 Name plate N 1
12 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
13 29070021631 螺栓 Screw Y 8
14 29070011121 垫圈 Washer Y 8
15 4120001739 制动钳 Brake caliper Y 2
16 4120001740 放气嘴 Nipple Y 2
17 29070014671 防护板 Protecting plate Y 2
18 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 4
19 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 4
20 29070021441 磁性螺塞 Plug 1 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1
2 3050900007 垫圈 Washer Y 1
3 3050900172 垫片 Shim Y 1
4 4030000048 骨架油封HG4-692-SG70*95*10 Sealing ring Y 1
5 4030000768 密封圈GB13871.1-FB070095-F Sealing ring Y 1
6 4011001318 螺栓GB5782-M14*55flZnyc-8.8-480 Screw Y 7
7 29090007961 垫圈 Washer Y 31
8 29070019901 密封盖 Sealing cover Y 1
9 4021000028 滚动轴承GB297-31310 Roller bearing Y 1
10 29070019911 轴承套 Bearing bushing Y 1
11 4021000139 滚动轴承GB297-31312 Roller bearing Y 1
12 4021000105 滚动轴承GB297-32214 Ball bearing Y 2
13 4011001281 螺栓GB5782-M12*55flZnyc-8.8-480 Screw Y 1
14 29070015981 垫圈 Washer Y 1
15 29070019941 调整螺母 Adjusting nut Y 2
16 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 2
17 29050015481 垫圈10 Washer Y 2
18 3050900024 锁紧片 Lock washer Y 2
19 4011000345 螺栓GB5786-M14*1.5*30EpZn-10.9 Screw Y 16
20 29070019961 隔套 Sleeve Y 1
21 29070019971 调整垫片 Spacer sleeve Y 1
22 29070019981 调整垫片 Spacer sleeve Y 1
23 29070019991 调整垫片 Spacer sleeve Y 1
24 29070020001 调整垫片 Spacer sleeve Y 1
25 29070020011 调整垫片 Spacer sleeve Y 1
26 29070020021 调整垫片 Spacer sleeve Y 1
27 29070020031 调整垫片 Spacer sleeve Y 1
28 29070020041 调整垫片 Spacer sleeve Y 1
29 3050900011 调整垫片 Shim Y 5
30 29070010611 调整垫片 S
31 29070010621 调整垫片 Shim Y 3
32 29070010631 调整垫片 Shim Y 1
33 29070019891 输入法兰 Flange Y 1
34 29070020052 法兰 Connection flange Y 1
35 3050900058 防尘圈 Sealing ring Y 1
36 29070019951 主从动螺旋伞齿轮 Crown wheel Y 1
37 29070020061 从动螺旋伞齿轮 Crown wheel N 1
38 29070020071 主动螺旋伞齿轮 Crown wheel N 1
39 29070020102 差速器左右壳 Differential housing Y 1
40 29070020601 差速器左壳 Differential housing N 1
41 29070020122 差速器右壳 Differential housing N 1
42 29070019922 托架总成 Center housing Y 1
43 29070020082 托架 Centre housing N 1
44 29070020091 轴承座 Bearing seat Y 2
45 29070019751 垫片18 Washer Y 4
46 4011000951 螺栓GB5785-M18*1.5*75EpZn-10.9 Screw Y 4
47 29070019932 差速器总成 Differential Y 1
48 29070020611 一字轴 Shaft Y 2
49 29070020141 锥齿轮 Differential pinion Y 4
50 29070020151 锥齿轮垫片 Thrust washer Y 4
51 29070020161 半轴齿轮 Differential side gear Y 2
52 29070020171 半轴齿轮垫片 Thrust washer Y 2
53 29070000461 固定销 Pin Y 4
54 4011000964 螺栓GB5785-M14*1.5*70EpZn-10.9 Screw Y 8
