Description

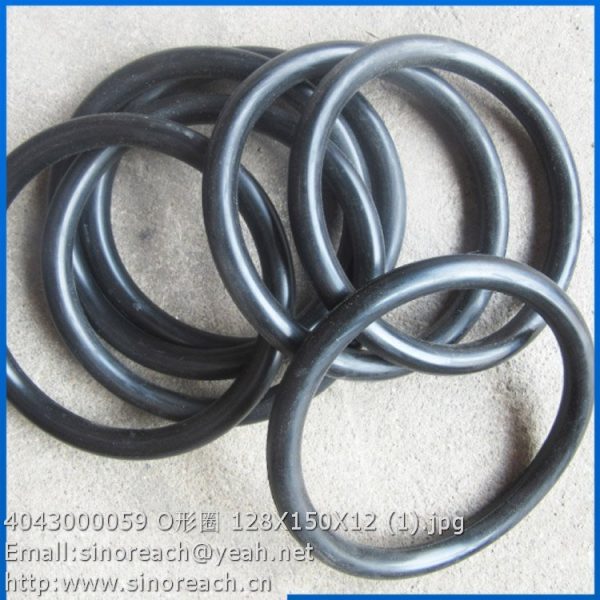

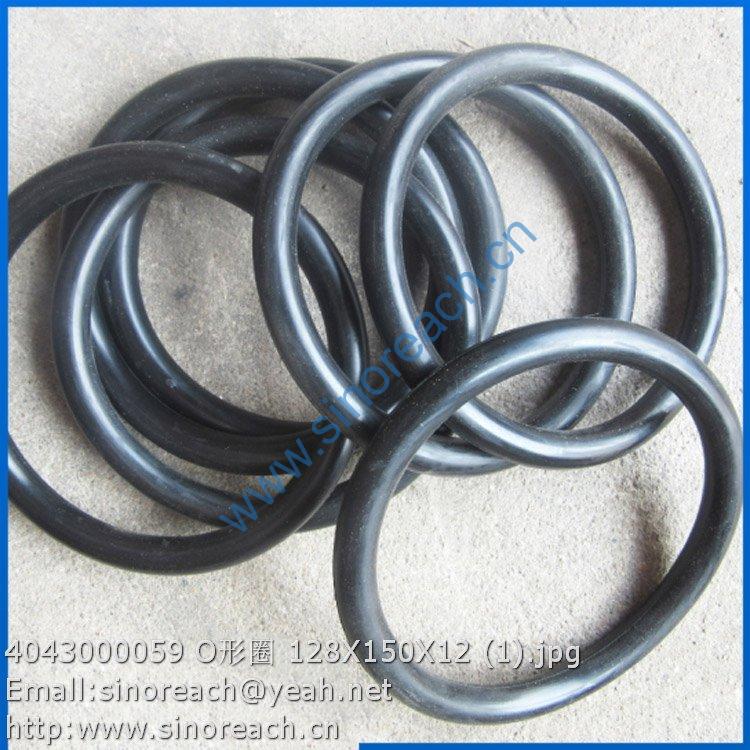

4043000059 O-ring 128X150X12

4011000082 BOLT GB5783-M10*25EpZn-8.8
4016000236 PIN GB119.2-8*22
C4-4110000499 FORE-OUTLET SHAFT(330101)
4021000166 P BEARING GB276-310
4110000038232 STOP WASHER
4110000038233 NEEDLEBEARING 55*60*30
4110000038235 GEAR
4110000038236 BUSHING
4110000038237 STEEL BALL 4
4110000038238 FROE-OUTLET SHAFT
4110000038239 GEAR
4110000038241 GUARD
4110000499222 BRAKE DISC
4110000038243 OUTLET SHAFT FLANGE
4110000038244 O-RING 52*5.7
4110000038245 CLAMPING PLATE
4110000038246 STOP WASHER
4011000082 BOLT GB5783-M10*25EpZn-8.8
4013000219 NUT GB6175－M14EpZn－8
4015000027 WASHER GB93-14-65Mn
4012000043 BOLT GB5783-M14*40EpZn-8.8
C5-4110000038 REAR-OUTPUT SHAFT(330101)
4011000082 BOLT GB5783-M10*25EpZn-8.8
4110000038246 STOP WASHER
4110000038245 CLAMPING PLATE
4110000038244 O-RING 52*5.7
4110000038243 OUTLET SHAFT FLANGE
4110000038241 GUARD
4021000184 BEARING GB276-211
4110000038258 REAR-OUTPUT SHAFT
4110000038259 HARNESS
4110000038260 NEEDLEBEARING 55*60*30
C6-4110000038 REVERSE SHAFT ASSEMBLY(330101)
4011000102 BOLT GB5783-M8*16EpZn-8.8
4110000038203 STOP SPACER
4110000038199 SHAFT PAD SNAP
4110000038205 PISTON RING Ф52
4110000038197 INTERNAL OIL SEAL BUSHING
6233000071 BEARING GB297-7507
4110000038267 SHAFT SLEEVE
4110000038175 PLUG 9
4110000038269 REVERSE SHAFT
4015000014 SNAP RING GB893.1-75-65Mn
4021000010 BEARING GB276-6009
4110000038272 GEAR
4110000038179 RING SNAP
4110000038180 EXTERNAL COVER
4110000038181 EXTERNAL FRICTION BLOCK 1201-0007A
4110000038182 INTERNAL FRICTION BLOCK
4015000284 RING SNAP GB894.2-60-65Mn
4110000038184 SPRING SEAT
4110000038185 SPRING
4110000038186 PISTON
4110000038187 OIL SEAL RING
4030000608 O-RING GB1235-60*3.1
4110000038189 CLUTCH SUMP ASS’Y
4090000126 STEEL BALL GB308-5-GCr15
4110000038191 VALVE SEAT
4110000038286 GEAR
4110000038193 STOP SPACER
4011000082 BOLT GB5783-M10*25EpZn-8.8
4016000236 PIN GB119.2-8*22
C8-4110000038 HIGH-LOW SPEED FORK SYSTEM(330101)
4110000038313 LRON CHANФ1
4110000038314 LOCK SCREW
4110000038315 DIAL FORK
4110000038316 PAPER SPACER
4110000038317 BRACKET
4015000025 WASHER GB93-10-65Mn
4011000084 BOLT GB5783-M10*30EpZn-8.8
7200000978 OIL SEAL HG4-692-67 18*35*10
4110000038321 SHAFT
4110000038322 PLUG M12*1.25
4110000038323 WASHER
4090000119 STEEL BALL GB308-10-GCr15
4110000038301 SPRING
C9-4110000038 CONTROL VALVE OF GEAR BOX (330101)
4110000038340 BOLT ZL20-039011
4110000038341 WASHER ZL20-039013
4110000038342 SPRING ZL20-039012
4090000008 STEEL BALL GB308-9.525-GCR15
4110000038343 DUST BUSHING ZL20-039023（Φ10）
4110000499229 JOINT ZL20-026010A
4110000038345 LOAD JOINT WASHER ZL20-026009
4110000038346 PLUG SCREW Q20-O1 M10*1-6H
4015000222 SNAP RING
4030000639 OIL SEAL HG4-692-14*30*10
4110000038348 ADJUSTING WASHER ZL20-039010
4110000038349 TRANSMISSION CONTROL VALVE ASS’Y ZL20-039000S
4110000038350 DUST BUSHING ZL20-039022 （Φ10）
4110000038351 PLUG SCREW ZL20-039015
4110000038352 O-RING Q26-O1 22*2.5
4110000038353 SLEEVE ZL20-039016
4110000038354 SLIDE VALVE ZL20-039017
4110000499224 SPRING ZL20-039018
4110000038356 O-RING Q26-O1 16*2
4110000038357 SPRING SEAT ZL20-039019
4110000038358 PLUG SCREW ZI20-039021
4110000038359 VALVE BODY ZL20-039007
4110000038360 PAPER WASHER ZL20-039020 δ0.5
4110000038361 PLATE ZL20-039008
4014000186 BOLT GB70-M6*16EpZn-8.8
