Description

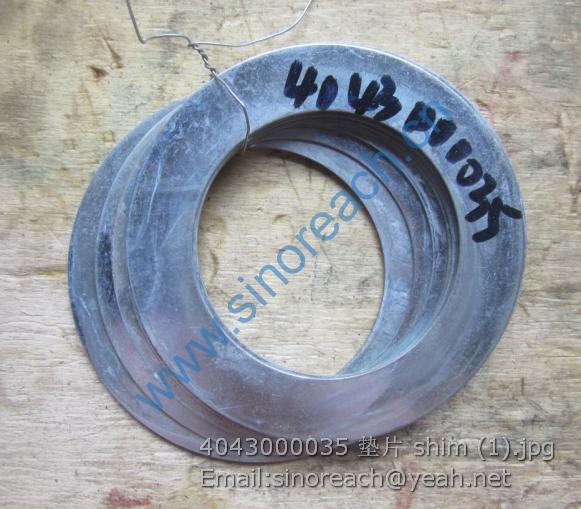

4043000035 SDLG WHEEL LOADER SHIM LGB303-85*130*1

1 4043000021 销轴LGB301-95*130R*240-40Cr Weld pin Y 1
2 4043000728 销轴LGB301-85*115*210/2G-40Cr Weld pin Y 2
3 4043000338 销轴LGB301-110*212R*405/2-40Cr Weld pin Y 1
4 4043000015 销轴LGB301-85*130R*240-40Cr Weld pin Y 1
5 4043000173 销轴LGB301-80*140*260-40Cr Weld pin Y 2
6 4043000060 销轴LGB301-85*142R*265-40Cr Weld pin Y 1
7 4043000026 轴套LGB302-80*90A2 Bushing Y 2
8 4043000027 轴套LGB302-85*95B3 Bushing Y 2
9 4043000028 轴套LGB302-85*80B2 Bushing Y 2
10 4043000035 垫片LGB303-85*130*1 Shim Y 4
11 4043000031 轴套LGB302-110*80B1 Bushing Y 2
12 4043000752 轴套LGB302-95*104C2 Bushing Y 2
13 4043000057 防尘圈LGB307-95 Sealing ring Y 4
14 4043000043 垫片LGB303-110*180*1 Shim Y 4
15 4043000058 防尘圈LGB307-110 Sealing ring Y 2
16 4043000056 防尘圈LGB307-85 Sealing ring Y 8
17 4043000055 防尘圈LGB307-80 Sealing ring Y 4
18 4043000034 垫片LGB303-80*130*2 Shim Y 4
19 4043000033 垫片LGB303-80*130*1 Shim Y 4
20 4043000059 O形圈LGB308-128*12 O-ring Y 8
21 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8
22 4011000094 螺栓GB5783-M16*30EpZn-8.8 Bolt Y 8
23 4040000002 垫圈LGB001-16 Washer Y 8

1 29190008891 出油块 Block Y 1
2 4011000476 螺栓GB16674-M10*70EpZn-8.8 Bolt Y 4
3 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
4 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 12
5 4041000043 分体法兰LGB117-310490 Flange half Y 2
6 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 2
7 4030000565 吸油胶管HG4-763-64*305 Hose assembly Y 1
8 4017000013 喉箍JB8870-d90 Clamp Y 4
9 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4
10 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
11 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4
12 4120004423 双联泵105/10 Gear pump Y 1
13 29110000042 泵用密封垫 Gasket N 1
14 29190000041 转向泵吸油钢管 Pipe Y 1
15 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 4
16 4041000011 分体法兰LGB117-314650 Flange half Y 1
17 4030000235 O形圈GB3452.1-43.7*3.55G O-ring Y 1
18 29190008941 转向泵出油胶管 Hose assembly Y 1
19 29120009921 直通接头 Nipple Y 2
20 4030000057 垫圈JB1002-14-T2 Washer Y 2
21 4041001023 组合接头LGB143-01608 Nipple Y 2
22 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 2
23 29200005051 优先阀进油钢管 Pipe Y 1
24 4041000027 分体法兰LGB117-312551 Flange half Y 1
25 4041000645 软管LGB165-004130 Hose assembly Y 1
26 4190001839 扎丝LG13-ZS4*160 Cable tie Y 2
27 4041002371 软管LGB126-004128 Hose assembly Y 1
28 4041000604 直接头LGB120-01614 Nipple Y 1
29 4041000775 O形圈LGB168-21124 O-ring Y 1

1 4120004423201 前盖574C-D0009 Cover N 1
2 4120004423202 中间体592C-D0009-1 Centering block N 1
3 4120004423203 一级泵体LZ-0577-25-027D Pump body N 1
4 4120004423204 一级主齿024C-D0108-25DR Drive shaft gear N 1
5 4120004423205 一级从齿JZ-0996L-25ID Shaft N 1
6 4120004423206 接轴022C-D0004 Shaft N 1
7 4120004423207 侧板X-0947-TC Side board N 2
8 4120004423208 孔用弹性挡圈W023-283 Retaining ring N 1
9 4120004423209 外置轴承W58-47 Bearing N 1
10 4120004423210 油封W62-26-17 Sealing ring Y 1
11 4120004423211 二次密封环MA-0558-1XS Sealing ring N 2
12 4120004423212 滚针轴承R-0921 Needle bearing N 4
13 4120005082214 堵油螺钉S-0280 Screw N 1
14 4120004423213 圆柱销280C-00002 Pin N 4
15 4120004423214 方型密封圈TA-2995-244 Sealing ring N 2
16 4120004423215 双头螺柱ZD-0391-6.5 Stud N 4
17 4120004423216 螺母W3-65 Nut N 4
18 4120005082221 垫圈W033-2 Washer N 4
19 4120004423217 卸油口堵W0-19 Plug N 1
20 4120004423218 后盖592C-L0015-2063 Cover N 1
21 4120004423219 二级泵体577-01109-05 Pump body N 1
22 4120004423220 二级主齿996C-L0039-05DR Drive shaft N 1
23 4120004423221 二级从齿996-01103-05ID Shaft N 1
24 4120005081210 侧板947-01105 Side board N 2
25 4120005081211 滑动轴承921-01108 Plain bearing N 4
26 4120005081212 圆柱销280-1971-071 Pin N 4
27 4120005081213 方型密封圈TA-2995-152 Sealing ring N 2
28 4120005081214 Ｅ型密封圈947-01107 Sealing ring N 2
29 4120005081215 Ｅ型挡圈947-01106 Retaining ring N 2
30 4120004423222 螺栓W1-88 Screw N 4

31 4120005081217 垫圈W033-1 Washer N 4
32 4120004423223 溢流阀5514C-00001-035 Valve Y 1
33 4120004423224 密封件包 Sealing ring kit Y 1

1 4120003945 转向器BZZ6-800A Control valve Y 1
2 29200010591 转向柱总成 Steering column N 1
3 29200010911 转向器R口出油胶管 Hose assembly Y 1
4 29200010901 转向器L口出油胶管 Hose assembly Y 1
5 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 4
6 29200008321 固定架 Bracket Y 1
7 4011000136 螺栓GB16674-M10*85EpZn-8.8 Bolt Y 2
8 4013000007 螺母GB6170-M10EpZn-8 Nut Y 4
9 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 2
10 4041000564 直接头LGB120-02620 Nipple Y 4
11 4041000783 O形圈LGB168-11724 O-ring Y 4
12 4041000187 直接头LGB120-02622 Nipple Y 1
13 4041000771 O形圈LGB168-11924 O-ring Y 1
14 4041001117 软管LGB165-010170 Hose assembly Y 1
15 4041000131 直接头LGB120-01412 Nipple Y 2
16 4041000784 O形圈LGB168-10924 O-ring Y 2
17 4041001047 组合接头LGB143-01406 Nipple Y 2
18 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 2
19 4041001525 软管LGB165-003128 Hose assembly Y 1
20 29200008341 压板 Plate Y 1
21 29200008332 橡胶板 Rubber plate Y 2
22 29200008801 转向器进油管 Hose assembly Y 1
23 4041000088 直接头LGB155-23326 Nipple Y 1
24 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 1
25 4011000335 螺栓GB5782-M12*100EpZn-8.8 Bolt Y 2
26 29200010471 平垫圈-12 Washer Y 2
27 4120005054 优先阀VLH-240S-16 Priority valve Y 1
28 4041001049 软管LGB128-003085 Hose assembly Y 1
29 4041000084 直接头LGB155-01214 Nipple Y 2
30 4030000285 O形圈GB3452.1-12.5*2.65G O-ring Y 2
