Description

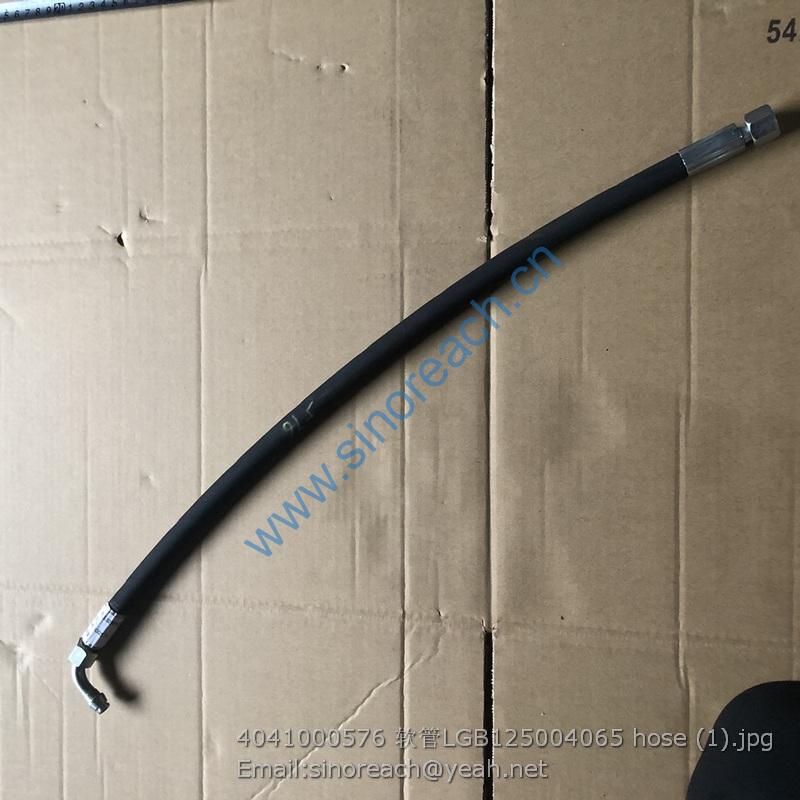

4041000576 LGB125004065 hose assembly  SDLG  LG933L LG936L LG958F LG959FSPARE PARTS

1 4041002009 软管LGB124-004297 Hose assembly Y 1
2 4041001927 软管LGB125-003290 Hose assembly Y 1
3 4041001435 软管LGB125-003280 Hose assembly Y 1
4 29120031091 多路阀DFSY-25-16部装 Control valve N 1
5 4041002010 软管LGB125-003233 Hose assembly Y 1
6 4041002348 软管LGB125-003240 Hose assembly Y 1
7 4041002007 软管LGB163-012194 Hose assembly Y 1
8 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 12
9 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 3
10 4041000056 分体法兰LGB117-312550 Flange half Y 3
11 29120030951 橡胶管夹 Hose clamp Y 2
12 29120030961 橡胶管夹 Hose clamp Y 2
13 29120030971 压板 Plate Y 2
14 4011000797 螺栓GB5782-M10*110EpZn-8.8 Bolt Y 4
15 29120020071 弯板 Plate Y 1
16 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 2
17 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 2
18 4011000493 螺栓GB16674-M8*90EpZn-8.8 Bolt Y 4
19 4013000033 螺母GB6170-M8EpZn-8 Nut Y 4
20 29120016351 固定板 Anchor plate Y 2
21 29120016741 管夹 Clamp Y 4
22 29120031101 先导阀总成GDXS2-DT部装 Control lever N 1
23 4120005063 压力选择阀SF8-D Valve Y 1
24 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 2
25 29120031111 压力选择阀固定板 Plate Y 1
26 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 2
27 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 2
28 29120005071 优先阀EF口胶管 Hose assembly Y 1
29 4041000150 直接头LGB120-01814 Nipple Y 2
30 4041000767 O形圈LGB168-11124 O-ring Y 3

31 4041001063 组合接头LGB143-01810 Nipple Y 3
32 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 3
33 29120031261 先导阀回油胶管 Hose assembly Y 1
34 4041002008 软管LGB164-005109 Hose assembly Y 1
35 4041000576 软管LGB125-004065 Hose assembly Y 1
36 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1
37 29120016021 固定板 Anchor plate Y 1
38 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 4
39 29120015081 接头 Nipple Y 2
40 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2
41 4041001521 组合接头LGB143-11608 Nipple Y 2
42 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 3
43 29120022931 先导进油管 Hose assembly Y 1
44 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 2
45 29120005081 二通接头 Nipple Y 1
46 29120024011 多路阀进油胶管 Hose assembly Y 1
47 29120016371 固定弯板 Plate Y 1
48 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 2
49 4041000604 直接头LGB120-01614 Nipple Y 1
50 4041001187 软管LGB125-004230 Hose Y 1
51 29120007661 接头 Nipple Y 1
52 29120014931 垫圈 Washer Y 2
53 29120007651 接头 Nipple Y 1
54 4041001023 组合接头LGB143-01608 Nipple Y 1
55 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1

1 4011000488 螺栓GB16674-M10*16EpZn-8.8 BOLT GB16674-M10*16EpZn-8.8 N 4
2 4120002027 先导阀总成DXS-00 PILOT VALVE DXS-00 Y 1
3 29120015911 操纵箱盖PS COVER PS Y 1
4 4014000058 螺钉GB70.1-M6*20EpZn-8.8 SCREW GB70.1-M6*20EpZn-8.8 N 6
5 29120016291 先导阀回油胶管 FEEDING HOSE OF PILOT VALVE Y 1
6 4011000366 螺栓JB999-M18*1.5*40EpZn-35 BOLT JB999-M18*1.5*40-35 N 1
7 29120015221 垫圈 WASHER Y 2
8 4041000150 直接头LGB120-01814 STAIGHT JOINT LGB120-01814 Y 2
9 4041000767 O形圈LGB168-11124 O-RING LGB168-11124 Y 9
10 29120010841 前部先导油管（a3） FRONT PILOT PTPE（a3） Y 1
11 4041000604 直接头LGB120-01614 JOINT LGB120-01614 Y 3
12 29120014931 垫圈 WASHER Y 18
13 4011000344 螺栓JB999-M14*1.5*32EpZn-35 BOLT JB999-M14*1.5*32-35 N 3
14 4041000532 软管LGB162-012105 TUBE LGB162012105 Y 1
15 4041000056 分体法兰LGB117-312550 FLANGE LGB117-312550 Y 4
16 4030000029 O形圈GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G Y 6
17 4011000475 螺栓GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 N 32
18 29120004031 回油钢管 TUBE Y 1

9 4011000556 U形螺栓JB/ZQ4321-33Zn-Q235A.F U-BOLT JB/ZQ4321-33Zn-Q235A·F N 2
20 4015000162 垫圈GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV N 6
21 4013000007 螺母GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8 N 6
22 29120011372 固定板 MOUNTED PLATE Y 1
23 4011000447 螺栓GB16674-M10*20EpZn-8.8 BOLT GB16674-M10*20EpZn-8.8 N 4
24 4011000057 螺栓GB5782-M12*165EpZn-8.8 BOLT GB5782-M12*165EpZn-8.8 N 2
25 4015000168 垫圈GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV N 5
26 4013000011 螺母GB6170-M12EpZn-8 NUT GB6170-M12 EpZn-8 N 5
27 4120001054 多路阀D32A-16 MULTIPLE UNIT VALVE D32A-16 Y 1
28 29120016301 先导胶管（2c） PIPE（2c） Y 1
29 29120007651 接头 JOINT Y 2
30 4041001061 软管LGB128-004250 PIPE LGB128-004250 Y 1
31 4041001189 软管LGB125-003055 HOSE LGB125-003055 Y 1
32 4041001047 组合接头LGB143-01406 CONNECTOR LGB143-01406 Y 1
33 4030000530 O形圈GB3452.1-6.00*1.80G O-RING GB3452.1-6.00*1.80G Y 1
34 4041000027 分体法兰LGB117-312551 FLANGE LGB117312551 Y 2
35 4041000716 防尘盖LGB134-01255 DUST-PREVENTION CAP Y 2
36 29120007671 管夹 CLAMP Y 2

37 4011000458 螺栓GB16674-M8*20EpZn-8.8 BOLT GB16674-M8*20Ep.Zn-8.8 N 8
38 4011000477 螺栓GB16674-M12*35EpZn-8.8 BOLT GB16674-M12*35EpZn-8.8 N 10
39 29120011391 固定支架 STEADY REST Y 1
40 29120016311 先导胶管（2B-a2-A2） PIPE（2B-a2-A2） Y 1
41 29120016321 先导胶管（2A-b2-B2） PIPE（2A-b2-B2） Y 1
42 29120016331 先导胶管（1B-a1-A1） PIPE（1B-a1-A1） Y 1
43 29120016341 先导胶管（1A-b1-B1） PIPE（1A-b1-B1） Y 1
44 29120016021 固定板 PLATE Y 1
45 4041000576 软管LGB125-004065 PIPE LGB125-004065 Y 1
46 29120015081 接头 JOINT Y 2
47 4030000276 O形圈GB3452.1-32.5*2.65G O-RING GB3452.1-32.5*2.65G Y 2
48 4120001954 滤油器PLF-C30*10 STRAINER Y 1
49 29120004041 二通块 TWO-WAY MASS Y 1
50 4120000448 压力选择阀SF8-C PRESSURE SELECTION VALVE SF8-C Y 1
51 4011000473 螺栓GB16674-M10*55EpZn-8.8 BOLT GB16674-M10*55EpZn-8.8 N 4
52 4041001146 软管LGB124-004110 PIPE LGB124-004110 Y 1
53 29120010801 过渡块回油管 RETURN PIPE OF TRANSITION BLOCK Y 1
54 29120011471 选择阀回油管 RETURN PIPE OF SELECTOR VALVE Y 1

55 29120010771 固定板 MOUNTED PLATE Y 1
56 29120010791 过渡块 TRANSITION BLOCK Y 1
57 4041000774 螺塞LGB135-01422 PLUG LGB13501421 Y 4
58 4041000043 分体法兰LGB117-310490 FLANGE LGB117310490 Y 2
59 4041000731 软管LGB107-010098 PIPE LGB107-010098 Y 1
60 4041001301 软管LGB163-012106 PIPE LGB163-012106 Y 1
61 29120016351 固定板 MOUNTED PLATE Y 2
62 29120016741 管夹 CLAMP Y 4
63 29120016951 固定板 MOUNTED PLATE Y 2
64 4011000493 螺栓GB16674-M8*90EpZn-8.8 BOLT GB16674-M8*90EpZn-8.8 N 4
65 4041000010 分体法兰LGB117-314651 FLANGE LGB117-314651 Y 1
66 4030000130 O形圈GB3452.1-47.5*3.55G O-RING GB3452.1-47.5*3.55G Y 2
67 29120010691 多路阀进油钢管 FEEDING TUBE OF MULTIPLE UNIT VALVE Y 1
68 29120016541 多路阀回油钢管 TUBE Y 1
69 4011000478 螺栓GB16674-M12*55EpZn-8.8 BOLT GB16674-M12*55EpZn-8.8 N 2
70 4011000793 螺栓GB16674-M12*65EpZn-8.8 BOLT GB16674-M12*65EpZn-8.8 N 2
71 4011000056 螺栓GB5782-M12*145EpZn-8.8 BOLT GB5782-M12*145EpZn-8.8 N 1
72 29120015401 接头 FITTING Y 10
