Description

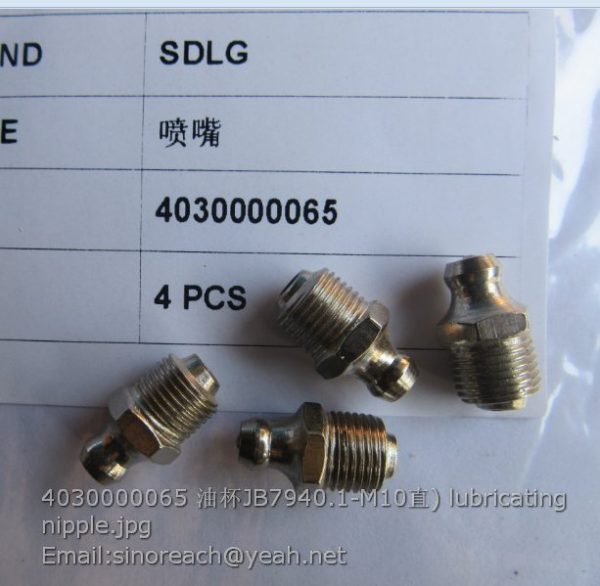

4030000065 lubricating nipple JB7940.1-M10
1 4017000006 喉箍JB8870-d100 Clamp Y 4
2 29110008681 工作泵吸油胶管 Hose Y 1
3 29110001061 工作泵吸油钢管 Pipe Y 1
4 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 4
5 4030000133 O形圈GB3452.1-56.0*3.55G O-ring Y 1
6 4041000009 分体法兰LGB117-320760 Flange half Y 1
7 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4
8 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
9 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4
10 4120001715 齿轮泵JHP3160 Gear pump Y 1
11 29110000042 泵用密封垫 Gasket N 1
12 29110009071 工作泵出油软管 Hose assembly Y 1
13 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 8
14 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
15 4041000056 分体法兰LGB117-312550 Flange half Y 2
16 29110008631 阀块 Valve block Y 1
17 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 4
18 4041000774 螺塞LGB135-01422 Plug Y 2
19 4041000767 O形圈LGB168-11124 O-ring Y 2
20 4041000192 螺塞LGB135-03341 Plug Y 1
21 4041000765 O形圈LGB168-12931 O-ring Y 1
1 4120001715001 挡圈41060100400 Retaining ring Y 1
2 4120001715002 旋转轴唇形密封圈 43020200200 Sealing ring Y 2
3 4120001715003 挡圈41060100300 Retaining ring Y 1
4 4120001715004 前盖21050200110 Cover Y 1
5 4120005081002 环形密封圈44020100700 Sealing ring Y 2
6 4120001715006 滚针轴承 42010100200 Needle bearing Y 4
7 4120001715007 定位套21050900110 Spacer sleeve Y 4
8 4120001715008 耳形挡片21050800110 Retaining ring Y 2
9 4120001715009 耳形密封垫21050700110 Sealing washer Y 2
10 4120001715010 侧板21050600110 Side board Y 2
11 4120001715011 主动齿轮轴21050117010 Drive shaft Y 1
12 4120001715012 从动齿轮轴21050417010 Shaft Y 1
13 4120001715013 泵体21050317010 Pump body Y 1
14 4120001715014 后盖21050500110 Cover Y 1
15 4120001715015 螺钉44010103080 Screw Y 4
16 4120001715016 弹簧垫圈41050200700 Spring washer Y 4
17 4120001715017 螺钉41010101780 Screw Y 4
18 4120001715018 弹簧垫圈41050200500 Spring washer Y 4
19 4120001715019 密封件包 Sealing ring kit Y 1
1 4120001715201 前盖574C-B0204 Cover N 1
2 4120001715202 后盖592C-B0027 Cover N 1
3 4120001715203 泵体577C-B007225005 Pump body N 1
4 4120001715204 主齿024C-B0087-25DR Drive shaft gear N 1
5 4120001715205 从齿996C-B0012-25ID Shaft N 1
6 4120001715206 侧板AZ-0947-TV Side board N 2
7 4120005082210 孔用弹性挡圈565C-00016 Retaining ring N 1
8 4120005082211 外置轴承W58-48 Beaing N 1
9 4120001715207 油封骨架QZ-0961 Sealing ring N 1
10 4120005082212 油封W62-26-10 Sealing ring N 1
11 4120001715208 Ｏ型圈K-2995-164 O-ring N 2
12 4120001715209 二次密封环VA-0558-1XS Sealing ring N 2
13 4120001715210 滚针轴承Q-0921 Needle bearing N 4
14 4120005082214 堵油螺钉S-0280 Screw N 1
15 4120001715211 圆柱销280C-00003 Pin N 4
16 4120001715212 方型密封环TA-2995-252 Sealing ring N 2
17 4120001715213 螺栓W1-89 Screw N 8
18 4120005082221 垫圈W033-2 Washer N 8
19 4120001715214 密封件包 Sealing ring kit N 1
