Description

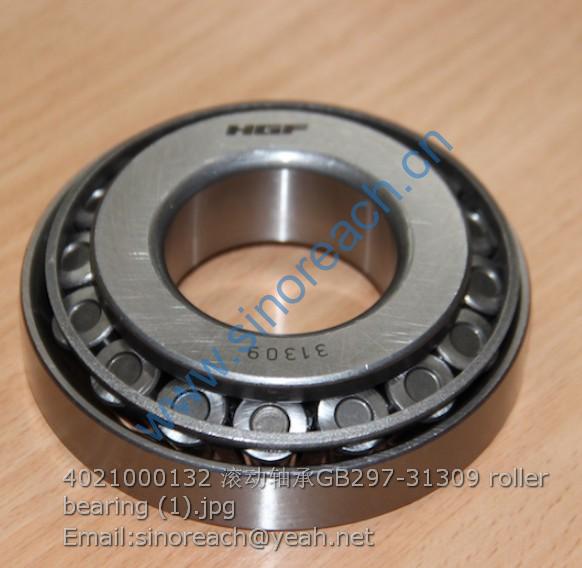

4021000132 roller bearing GB297-31309 SDLG PARTS

1 4013000042 螺母GB6171-M24*2EpZn-8 Nut Y 1
2 29070010521 垫圈 Washer N 1
3 29070010041 输入法兰 Connection flange Y 1
4 4030000854 密封圈GB13871.1-FB06008508-F Sealing ring Y 1
5 29070010071 密封盖 Sealing cover Y 1
6 29070010081 轴套 Sleeve Y 1
7 4011000048 螺栓GB5782-M10*50EpZn-8.8 Bolt Y 1
8 4015000025 垫圈GB93-10-65Mn Spring washer Y 3
9 4021000132 滚动轴承GB297-31309 Roller bearing Y 1
10 29070010301 密封垫片 Gasket Y 1
11 29070010091 轴承套 Bearing bushing Y 1
12 29070010261 调整垫片 Shim Y 1
13 29070010271 调整垫片 Shim Y 3
14 29070010281 调整垫片 Shim Y 4
15 29070010291 调整垫片 Shim Y 5
16 4015000130 挡圈GB894.1-25-65Mn Retaining ring Y 1
17 4021000028 滚动轴承GB297-31310 Roller bearing Y 1
18 29070010101 主动螺旋伞齿轮（左） Crown wheel (left) N 1
19 29070010121 托架总成 Center housing Y 1
20 29070014241 锥齿轮垫片 Thrust washer Y 4
21 29070010161 锥齿轮 Differential pinion Y 4
22 29070010321 调整螺母 Nut Y 4
23 4021000134 滚动轴承GB297-32212 Roller bearing Y 2
24 29070010201 差速器右壳 Differential housing N 1
25 29070010141 半轴齿轮 Differential side gear Y 2
26 29070014261 半轴齿轮垫片 Shim Y 2
27 3050900024 锁紧片 Lock washer Y 2
28 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 2
29 29070010331 轴承座 Bearing seat N 2
30 4011000699 螺栓GB5785-M12*1.25*50EpZn-10.9 Bolt Y 8

31 4011000599 螺栓GB5786-M12*1.25*30EpZn-10.9 Bolt Y 12
32 29070010131 垫圈 Washer Y 20
33 29070010171 十字轴 Spider Y 1
34 29070010151 差速器左壳 Differential housing N 1
35 4021000133 滚动轴承GB283-NUP2305 Roller bearing Y 1
36 29070010111 从动螺旋伞齿轮（右） Crown wheel(right) N 1
37 4016000124 销GB119.2-10u8*30 Pin Y 2
38 29070010211 固定销 Pin Y 4
39 4015000026 垫圈GB93-12-65Mn Spring washer Y 7
40 4011000064 螺栓GB5782-M12*50EpZn-8.8 Bolt Y 7
41 29070010221 调整垫片 Shim Y 2
42 29070010231 调整垫片 Shim Y 2
43 29070010241 调整垫片 Shim Y 3
44 29070010251 调整垫片 Shim Y 3
45 4011000231 螺栓GB5782-M16*70EpZn-8.8 Screw Y 4
46 29070009511 垫圈 Washer Y 4
47 29070010311 托架 Centre housing N 1
48 29070010051 输入法兰 Connection flange Y 1
49 21909001181 差速器壳 Housing Y 1
50 21909001171 前主从动螺旋伞齿轮 Crown wheel Y 1
51 21909006451 锥齿半齿总成 Gear kit Y 1
52 29070019581 差速器总成 Differential spider Y 1

1 29070014541 防尘罩 Dust cover Y 1
2 4030000559 密封圈GB9877.1-FB110*140*12D Sealing ring Y 1
3 29070010491 轴承隔套 Spacer sleeve Y 1
4 4021000036 滚动轴承GB297-32216 Roller bearing Y 1
5 29070010461 轮毂 Front wheel hub Y 1
6 29070010441 轮辋螺栓 Stud Y 8
7 4013000136 螺母GB6171-M18*1.5EpZn-8 Nut Y 8
8 4015000029 垫圈GB93-18-65Mn Spring washer Y 8
9 29070010381 内齿圈 Gear ring Y 1
10 3050900045 O形圈 O-ring Y 1
11 29070010371 行星轮架 Planet carrier Y 1
12 4120000080 螺塞Q/ZB286-ZG3/4″-Q235A Plug Y 2
13 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 8
14 4015000025 垫圈GB93-10-65Mn Spring washer Y 8
15 29070010401 轮边端盖 End plate Y 1
16 29070009161 定位块 Block Y 1
17 4090000006 钢球GB308-17.462-GCr15 Ball Y 1
18 4015000257 挡圈GB894.1-38-65Mn Retaining ring Y 1
19 29070010391 太阳轮 Sun gear Y 1
20 29070010881 垫片 Shim Y 6
21 4090000007 钢球GB308-8-GCr15 Ball Y 3
22 29070010421 行星齿轮轴 Planet gear shaft Y 3
23 3050900042 挡环 Retaining ring Y 6
24 29070010411 行星齿轮 Planet gear Y 3
25 4090000001 滚针GB309-4*35-GCr15 Needle roller Y 84
26 29070010511 圆螺母 Round nut Y 1
27 4014000118 螺钉GB70-M8*1*20-8.8 Screw Y 2
28 4021000135 滚动轴承GB297-32017 Roller bearing Y 1

1 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 12
2 4015000025 垫圈GB93-10-65Mn Spring washer Y 8
3 4120001827009 封油分泵盖JF.A.ZL15.08 Pump cover Y 1
4 4120001827006 进油分泵盖JF.A.ZL15.06 Pump cover Y 1
5 4120001827010 防漏垫圈 Washer Y 2
6 4030000747 O形圈JB7757.2-50*3.1 O-ring Y 2
7 4120001740 放气嘴 Nipple Y 1
8 4120001827007 孔塞JF.A.ZL15.09 Plug Y 1
9 4120001827011 放气嘴座JF.A.ZL15.10 Seat Y 2
10 4120001827003 销轴JF.A.ZL15.02 Pin Y 4
11 4013000007 螺母GB6170-M10EpZn-8 Nut Y 4
12 4120001827001 摩擦片总成JF.A.ZL15.03 Friction disc Y 2
13 4120001827004 防尘罩JF.A.ZL15.04 Dust cover Y 4
14 4120001827005 矩型圈JF.A.ZL15.05 Sealing ring Y 4
15 4120001827008 活塞JF.A.ZL15.07 Cylinder piston Y 4
16 4120001827002 夹钳体JF.A.ZL15.01 Binder N 1
