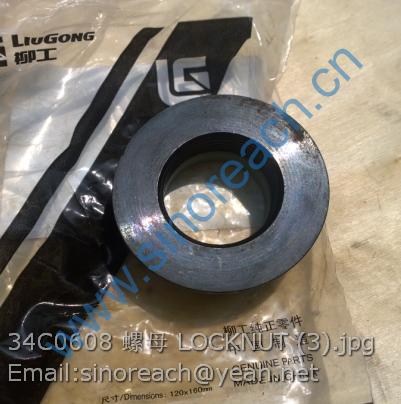

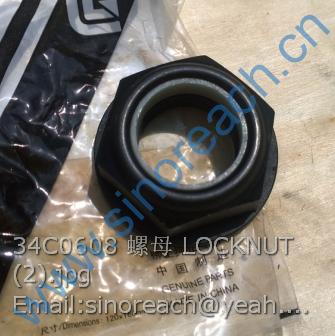

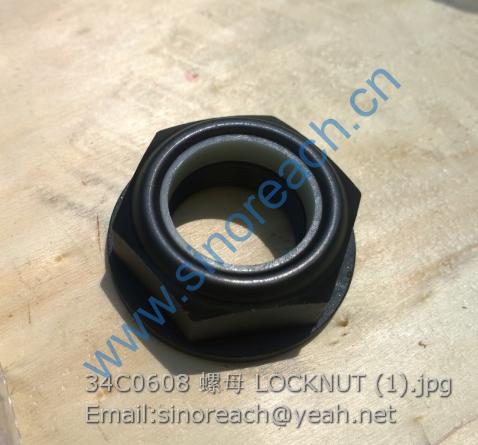

34C0608 LOCKNUT

1 04A0040 法兰 FLANGE 1
2 13B0169 油封 OIL SEAL 1 70×95×13
3 53A0110 油封座 OIL SEAL SEAT 1
4 70A0033 轴承座 BEARING
SUPPORT
1
5 主动螺旋锥齿轮 SPIRAL BEVEL
GEAR
G 1
6 51C0238 轴套 BUSHING C 1
7 23B0051 圆锥滚子轴承
HR30311DJ
TAP.ROLLER
BRG
2 55×120×31.5×29×
21
8 66A0013 销 PIN 2
9 28C0194 垫片 GASKET C 1
10 12B0246 O 形圈 O-RING 1 200×5.3
11 桥托架总成 AXLE DRIVE
HOUSING AS
F 1
12 03B0130 调整螺母 ADJUSTING NUT 2
13 03V0537 螺母 NUT Y 12 M14×1.5-10-ZN.D EC0000123809_9 替换
前
14 60A1028 螺栓 BOLT 12
15 06B0214 淬硬垫圈 HARD WASHER 12 14
16 大螺旋锥齿轮 SPIRAL BEVEL
GEAR
G 1
17 02B0012 螺栓 BOLT Y 2 M10×20-8.8-ZN.D EC0000123809_11 替换
前
18 06B0002 垫圈 WASHER 6 10
19 40B0006 铁丝 STEEL WIRE 2 Φ1.5×450
20 21A0040 锁紧片 FASTENER 2
21 06B0270 淬硬垫圈 HARD WASHER 4
22 02B0032 螺栓 BOLT Y 4 M22×90-10.9-ZN.D EC0000123809_10 替换
前
23 41C0110 A 型限滑差速器
总成
DIFFERENTIAL
AS
1
24 23B0017 圆锥滚子轴承
32215
TAP.ROLLER
BRG
2 75×130×33.25
25 07B0027 挡圈 SNAP RING 1 30
26 22B0005 圆柱滚子轴承
NUP2306ET
ROLLER
BEARING
1 30×72×27
27 06B0177 垫圈 WASHER 11
28 00B0095 螺栓 BOLT 11 M16×45-10.9-ZN.D
29 12B0034 O 形圈 O-RING 1 122×3.55
30 00B0012 螺栓 BOLT 4 M10×25-8.8-ZN.D
31 12B0105 O 形圈 O-RING 1 42.5×5.3
32 34C0608 锁紧螺母 LOCKNUT 1 M33×1.5

1 24D0042 轮边支承轴 SPINDLE 1
2 53A0300 防尘盖 DUST COVER 2
3 00A0044 放气嘴 DEFLATING VALVE 2
4 12B0246 O 形圈 O-RING 2 200×5.3
5 12B0380 O 形密封圈 O-RING 2 14×2.4
6 00A0963 放气嘴座 DEFLATING VALVE
SEAT
2
7 桥壳 AXLE HOUSING B 1
8 24D0043 轮边支承轴 SPINDLE 1
9 01B0402 螺栓 BOLT 32
10 56A0064 淬硬垫圈 HARD WASHER 32
11 31C0038 直角接头 CONNECTOR 2

1 铭牌 NAMEPLATE A 1
2 09B0002 铆钉 RIVET 4 2×5
3 62A0066 右半轴 HALF SHAFT-RH 1
4 03B1580 螺塞 PLUG 2
5 06B0055 垫圈 WASHER 2 27
6 60A0011 定位销 DOWEL PIN 2
7 41C0111 主传动总成 BEVEL GEAR AS 1
8 00B0188 螺栓 BOLT 18 M14×40-10.9-ZN.D
9 06B0103 淬硬垫圈 HARD WASHER 18
10 03B0406 通气塞 BREATHER PLUG 1 Z1/8-27
11 01B0380 螺栓 BOLT 8 M27×2×290-10.9-ZN.D
12 03B0197 锁紧螺母 LOCKNUT 8 M27×2
13 41C0143 桥壳轮边支承 HUB CARRIER AS 1
14 13B0282 密封圈 SEAL RING 2 170×200×15
15 07B0106 挡圈 SNAP RING 2 200
16 23B0057 圆锥滚子轴承
HR32026XJ
TAP.ROLLER
BRG
2 130×200×45×45×34
17 51C0114 轴套 BUSHING 2
18 23B0055 圆锥滚子轴承
HR32028XJ
TAP.ROLLER
BRG
2 140×210×45×45×34
19 83A1325 O 形圈 O-RING 2 97.5×3.55
20 03B0431 圆螺母 ROUND NUT 2
21 04B0022 螺钉 SCREW 4 M10×25-8.8-ZN.D
22 06B0002 垫圈 WASHER 4 10
23 01B0379 螺栓 BOLT 40
24 03B0150 螺母 NUT 40 M20×1.5-8-ZN.D
25 06B0271 淬硬垫圈 HARD WASHER 40
26 12B0424 O 形圈 O-RING 2 387×7
27 06B0177 垫圈 WASHER 40
28 00B0245 螺栓 BOLT 40 M16×50-10.9-ZN.D
29 70A0086 行星轮架 PLANETARY
CARRIER
2
30 41A0095 行星轮 PLANETARY
GEAR
8
31 20B0045 滚针 ROLLING
NEEDLE
224
32 56A0287 垫片 GASKET 16
33 61A0263 行星轮轴 PLANETARY
GEAR SHAFT
8
33 61A2519 行星齿轮轴 PLANETARY
GEAR SHAFT
8
34 20B0026 钢球 STEEL BALL 8 9.525
35 53A1701 端盖 COVER 2
