Description

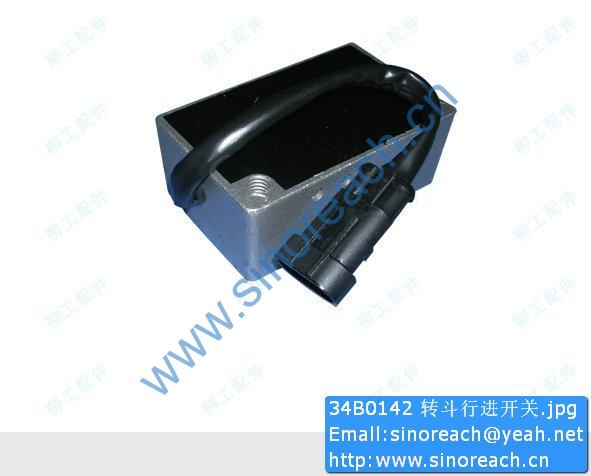

34B0142 Bucket travel switch for liugong spare part

41C0018X1 13B0169 oil seal; 70×95×13; 72 NBR 902
41C0018X1 12D0021 Input flange; 30E
41C0018X1 06B0214 Hardened washer; 14; 45
41C0018X1 07B0027 Retaining ring; GB894.1-86; 30; 65Mn
41C0018X1 06B0002 Washer; GB93-87; 10; 65Mn
41C0018X1 03V0537 Nut GB/T6171-2000; 14×1.5-10-Zn.D
41C0018X1 03B0154 Hexagon nut GB6173-86; M27×2-04-Zn.D
41C0018X1 03B0130 Adjusting nut
41C0018X1 02B0012 Bolt GB32.1-88; M10×20-8.8-Zn.D
60A0982J 60A0982 bolt
01E0016X0 41A0020 Sun wheel
01E0016X0 41A0019 Planetary gear; 20CrMnTi
01E0016X0 27A0052 Dust cover
01E0016X0 23B0010 Tapered roller bearing 32221; GB/T297-1994; 105×190×53
01E0016X0 23B0001 Tapered roller bearing 32022; GB/T297-1994; 110×170×38
01E0016X0 20B0026 Steel ball; GB308-89; 9.525; GCr6
01E0016X0 20B0022 Needle roller GB309-84; P5×50
01E0016X0 16A1000 Tee connector; Q345
01E0016X0 14A0346 fixed block; Q235
01E0016X0 13B0213 Lip seal BASL140×170×15
01E0016X0 12B0105 O-ring; GB3452.1-92; 42.5×5.3; YI9424
01E0016X0 12B0093 O-ring 445×5; YI9424
01E0016X0 09B0002 Rivet; GB827-86; 2×5; 1035
01E0016X0 07B0028 Retaining ring; GB894.1-86; 55; 65Mn
01E0016X0 06B0055 Washer; 27; AGGL
01E0016X0 06B0019 Washer; GB93-87; 20; 65Mn
01E0016X0 06B0014 Washer; GB93-87; 18; 65Mn
01E0016X0 06B0013 Washer; GB93-87; 14; 65Mn
01E0016X0 06B0008 Washer; GB93-87; 12; 65Mn
01E0016X0 06B0006 Washer; GB93-87; 8; 65Mn
01E0016X0 06B0002 Washer; GB93-87; 10; 65Mn
01E0016X0 04B0022 screw; GB70-85; M10×25-8.8-Zn.D; STL
01E0016X0 03B0406 Vent plug Z1/8 inch-27
01E0016X0 03B0212 plug
01E0016X0 03B0150 Nut; GB6171-86; M20×1.5-8-Zn.D; STL
01E0016X0 01C0022 Front axle rear end oil pipe
01E0016X0 01C0021 Front axle left end oil pipe
01E0016X0 01B0181 Rim bolt 20×1.5×120
01E0016X0 01B0043 Bolt
01E0016X0 00B0025 Bolt; GB5783-86; M14×35-8.8-Zn.D; STL
01E0016X0 00B0020 Bolt; GB5783-86; M8×30-8.8-Zn.D; STL
01E0016X0 00B0017 bolt; GB5783-86; M12×30-8.8-Zn.D; STL
01E0016X2 01B0211 Front axle mounting bolt
01E0174X2 03B0201 Rim nut; 35
01E0174X2 03B0195 Lock nut CB083033-3; M30×2
01E0174X2 01E0174X0 rear axle assembly; 30E
01E0174X0 74A4622 nameplate; SHEET 1035-O 1.0
01E0174X0 70A0557 wheel hub; ZG270-500
00B0375J 00B0375 bolt; GB5783-86; M14×45-10.9-Zn.D; STL
01E0174X0 06B0214 Hardened washer; 14; 45
01E0174X0 76A0020 Gasket
01E0174X0 76A0019 snap ring
01E0174X0 70A0018 Internal gear; 40Cr
01E0174X0 70A0017 Planetary wheel carrier; QT450-10; 40B
01E0174X0 62A0024 Half shaft; 20CrMnTi
01E0174X0 61A0019 axis
01E0174X0 60A0121 Planetary gear shaft
01E0174X0 60A0011 Locating pin
01E0174X0 53A0064 cover
01E0174X0 52A0038 brake disc
01E0174X0 45C0004X1 clamp assembly; ordinary bridge
45C0004X1 12B0245 O-ring; GB3452.1-92; 20×1.8; YI9424
45C0004X1 56A0045 Washer; T2
45C0004X1 00A1965 pipe joint; 20
45C0004X1 00A0356 pipe joint bolt; 35
45C0004X1 71A0018 clamp; QT450-10
45C0004X1 61A0045 pin shaft
45C0004X1 53A0043 Upper cylinder head
45C0004X1 53A0042 Lower cylinder head
45C0004X1 50A0009 Piston
45C0004X1 35C0025 Friction pad assembly
45C0004X1 13B0108 Rectangular sealing ring; 69.2×79.2×4; EPDM
45C0004X1 13B0008 Dust ring; 63.5×94×13.6; rubber 1-1
45C0004X1 12B0481 O-ring seal; GB1235-76; 70×3.1; EPDM
45C0004X1 06B0002 Washer; GB93-87; 10; 65Mn
45C0004X1 05C0007 oil pipe assembly
45C0004X1 04B0027 Stop screw ZL50C.2.2-14
45C0004X1 03B0053 Nut; GB6170-86; M10-8-Zn.D; STL
45C0004X1 00B0019 bolt; GB5783-86; M10×30-8.8-Zn.D; STL
45C0004X1 00A0044 Vent nozzle
45C0004X1 00A0041 Vent nozzle seat
45C0004X1 00A0040 connector
01E0174X0 41C0276X1 Rear axle main drive; 30E
41C0276X1 34C1773 differential case; AGGL; 40B
01B0545J 01B0545 Bolt
01B0545J 01B0545 Bolt
41C0276X1 43A0140X0 Active spiral and large spiral bevel gear assembly; 20CrMnTiH5
41C0276X1 34C0608 lock nut; M33×1.5; assembly
41C0276X1 55A2553 shaft sleeve; h=16.41; 45
41C0276X1 81A0073 Gasket; green shell paper
41C0276X1 81A0037 gasket
41C0276X1 76A0011 Locking piece
41C0276X1 63A0031 cross shaft
41C0276X1 56A0075 Bevel gear gasket
41C0276X1 56A0042 Axle shaft gear gasket; 65Mn
41C0276X1 55A0218 bearing sleeve
41C0276X1 53A0308 Sealing cover
41C0276X1 44C0019 Thrust bolt
44C0019 55A0080 Copper sleeve
44C0019 01B0180 bolt; Q235
