Description

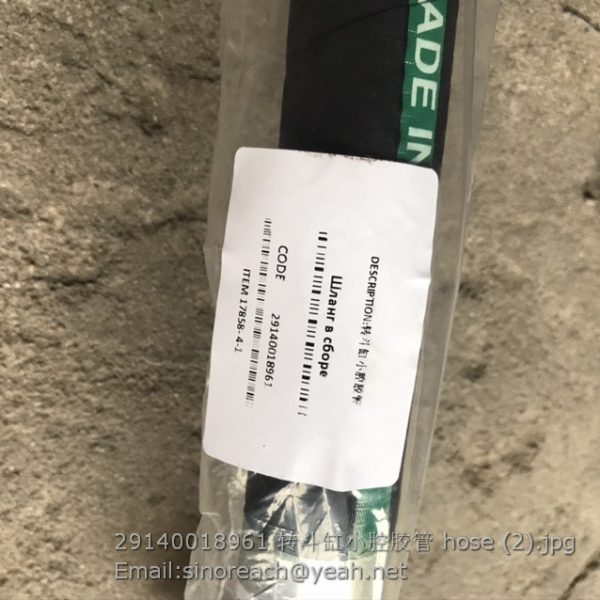

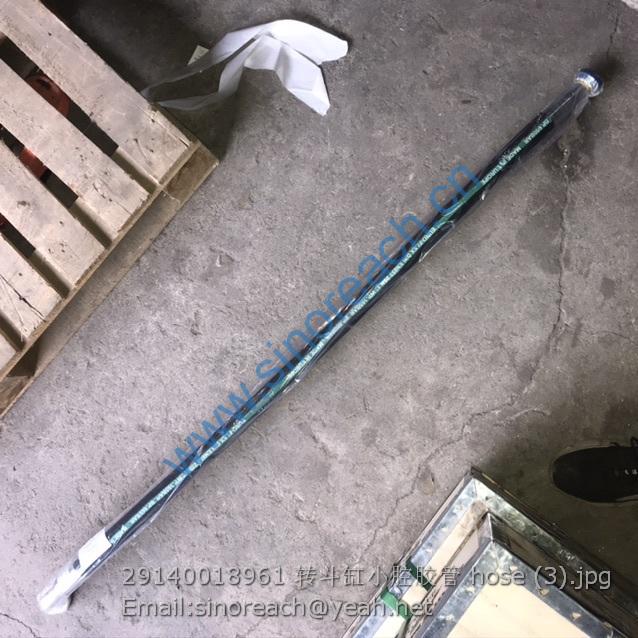

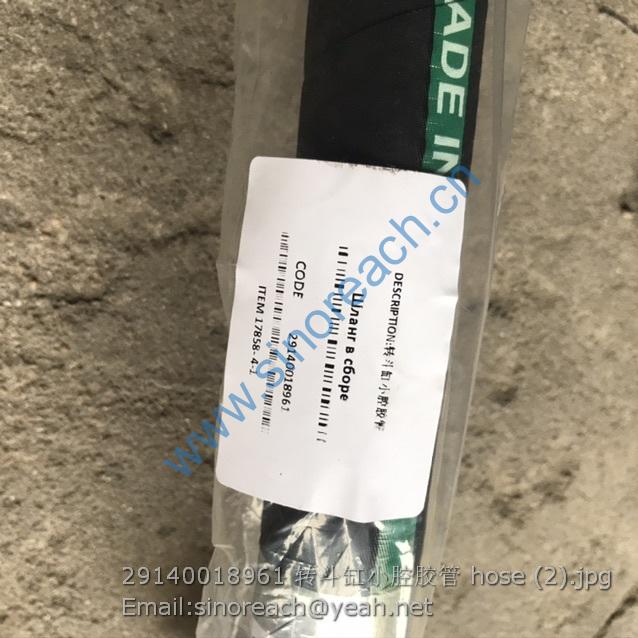

29140018961 hose SDLG
1 4120006001 转斗油缸HSGF-200*105*550-1064B Tilt cylinder Y 1
2 29140019081 放平护板 Plate Y 1
3 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4
4 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 12
5 29140018961 转斗缸小腔胶管 Hose assembly Y 1
6 4041000144 分体法兰LGB117-312552 Flange half Y 4
7 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 16
8 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 5
9 29140012931 U形螺栓 U-bolt Y 4
10 4041001018 底板LGB160-3040 Bracket Y 4
11 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 8
12 29140018971 转斗缸大腔胶管 Hose assembly Y 1
13 29140016451 动臂指示板 Indicator plate Y 1
14 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 2
15 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 2
16 29140019071 转斗缸大腔钢管 Pipe Y 1
17 4011001529 螺栓GB16674.1-M12*55flZnyc-8.8-480 Screw Y 2
18 4011001530 螺栓GB16674.1-M12*60flZnyc-8.8-480 Screw Y 2
19 29140019001 转斗联小腔钢管 Pipe Y 1
20 29140019031 转斗联大腔钢管 Pipe Y 1
21 4041000774 螺塞LGB135-01422 Plug Y 2
22 4041000767 O形圈LGB168-11124 O-ring Y 2
23 4041000026 分体法兰LGB117-310491 Flange half Y 4
24 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 12
25 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 4
26 4041000818 防尘盖LGB134-01049 Cover Y 2
27 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4
28 4011001354 螺栓GB5782-M10*90flZnyc-8.8-480 Screw Y 4
29 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 2
30 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2
1 4120006001001 缸筒总成24A139180 Cylinder tube Y 1
2 4120006001002 活塞杆总成24A114190 Piston rod Y 1
3 4120006001003 缸盖24C101200 Cover Y 1
4 4120006001004 衬套24S2A5601 Bushing Y 1
5 4120006001005 钢丝挡圈-孔用24C090250 Retaining ring Y 1
6 4120006001006 密封件-缓冲24H010504 Sealing ring N 1
7 4120006001007 密封件-活塞杆24F210503 Sealing ring N 1
8 4120006001008 挡圈-U形圈24E010515 Retaining ring N 1
9 4120006001009 密封件-防尘24D210502 Sealing ring N 1
10 4120006560009 钢丝挡圈-孔用24C090280 Retaining ring Y 1
11 4120006001010 O形圈24K11900A O-ring N 1
12 4120006001011 挡圈-O形圈24M12000D O-ring N 1
13 4120006001012 O形圈 24K320001 O-ring N 1
14 4120006001013 活塞24C102140 Piston Y 1
15 4120006001014 密封件-活塞24P220002 Sealing ring N 1
16 4120006001015 O形圈 24K11050A O-ring N 1
17 4120006001016 挡圈-O形圈24M11100D O-ring N 1
18 4120006001017 支承环24G220027 Sealing ring N 2
19 4120006001018 活塞背母24C103080 Nut Y 1
20 4120006560007 螺钉-内六角凹端紧定24T910161 Screw Y 1
21 4120006560006 钢球24U006501 Ball N 1
22 4120006001019 轴套24C116140 Bushing Y 1
23 4120006001020 销边防尘24R308030 Sealing ring N 2
24 4120005997017 螺钉-内六角圆柱头 24T522905 Screw Y 12
25 4120006001021 密封件包24A103160S Sealing kit Y 1
1 4120006001 转斗油缸HSGF-200*105*550-1064B Tilt cylinder Y 1
2 29140019081 放平护板 Plate Y 1
3 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 4
4 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 12
5 29140018961 转斗缸小腔胶管 Hose assembly Y 1
6 4041000144 分体法兰LGB117-312552 Flange half Y 4
7 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 16
8 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 5
9 29140012931 U形螺栓 U-bolt Y 4
10 4041001018 底板LGB160-3040 Bracket Y 4
11 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 8
12 29140018971 转斗缸大腔胶管 Hose assembly Y 1
13 29140016451 动臂指示板 Indicator plate Y 1
14 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 2
15 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 2
16 29140019071 转斗缸大腔钢管 Pipe Y 1
17 4011001529 螺栓GB16674.1-M12*55flZnyc-8.8-480 Screw Y 2
18 4011001530 螺栓GB16674.1-M12*60flZnyc-8.8-480 Screw Y 2
19 29140019001 转斗联小腔钢管 Pipe Y 1
20 29140019031 转斗联大腔钢管 Pipe Y 1
21 4041000774 螺塞LGB135-01422 Plug Y 2
22 4041000767 O形圈LGB168-11124 O-ring Y 2
23 4041000026 分体法兰LGB117-310491 Flange half Y 4
24 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 12
25 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 4
26 4041000818 防尘盖LGB134-01049 Cover Y 2
27 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4
28 4011001354 螺栓GB5782-M10*90flZnyc-8.8-480 Screw Y 4
29 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 2
30 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2
