Description

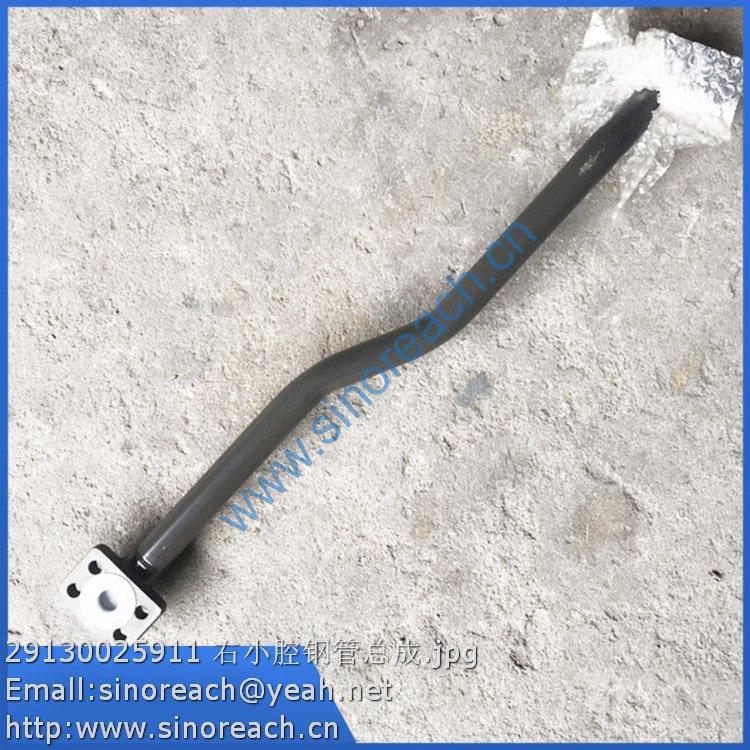

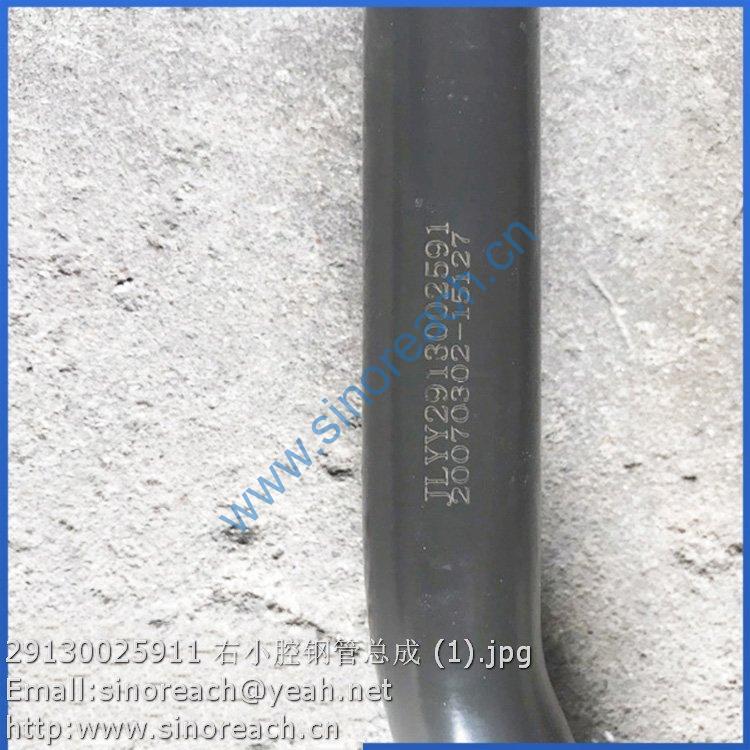

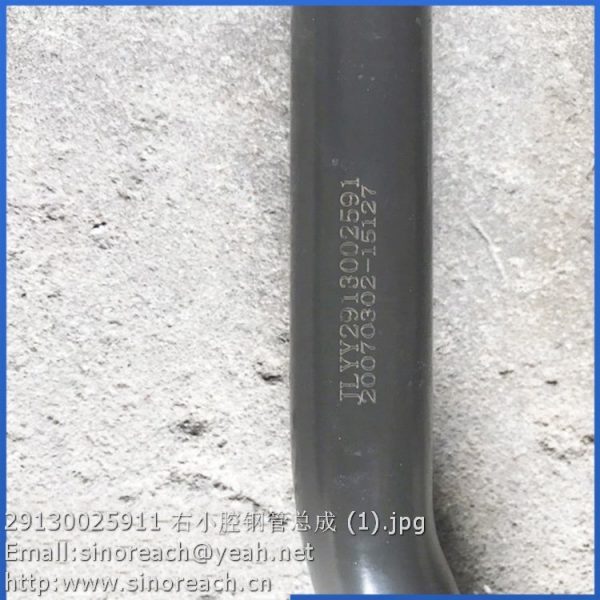

29130025911 Right small cavity steel pipe assembly

29120001402 CONTROL AXIS
4120001019 OPERATING GEAR LG12-953CZJG01
29120009111 COVER SHEET
29120000071 PIN
4016000035 SPLIT PIN 4*20
4030000031 O-RING GB3452.1-42.5*3.55G
4011000479 BOLT GB16674-M12*30EpZn-8.8
F2-2911000101 WORKING PUMP ASSEMBLY
4120001715 GEAR PUMP JHP3160
4011000473 BOLT GB16674-M10*55EpZn-8.8
29110001021 OUT-OIL TUBE
4030000029 O-RING GB3452.1-37.5*3.55G
4012000003 DOUBLE-SCREW BOLT GB898-M12*35EpZn-8.8
4013000011 NUT GB6170-M12 EpZn-8
4015000168 WASHER GB97.1-12EpZn-300HV
29110000041 SEALING WASHER
4030000133 O-RING GB3452.1-56.0*3.55G
4041000009 FLANGE LGB117-320760
4011000320 BOLT GB16674-M12*40EpZn-8.8
29110001061 INTAKE OIL TUBE OF PUMP
4120000683 HOSE HG4-763-76*500
4017000006 ADMAS APPLE JB8870-d100
F3-2913000101 LIFTING CYLINDER ASSENBLY
4120000558 LIFTING CYLINDER HSGF-160*90*812-1310
4030000026 O-RING GB3452.1-32.5*3.55G
4011000473 BOLT GB16674-M10*55EpZn-8.8
29130001021 SMALL CHAMBER TUBE OF LEFT LIFT CYLINDER
29130001171 BIG CHAMBER TUBE OF LEFT LIFT CYLINDER
29130001031 SMALL CHAMBER TUBE OF RIGHT LIFT CYLINDER
29130001181 BIG CHAMBER TUBE OF RIGHT LIFT CYLINDER
4011000475 BOLT GB16674-M10*30EpZn-8.8
4030000029 O-RING GB3452.1-37.5*3.55G
29130008152 TUBE
29130008181 BIG CHAMBER RIGHE TUBE OF LIFTING
4041000043 FLANGE LGB117310490
29130008201 SMALL CHAMBER RIGHE TUBE OF LIFTING
29130011991 LEFT BRACKET
29130008221 BIG CHAMBER LEFT TUBE OF LIFTING
29130008241 SMALL CHAMBER LEFT TUBE OF LIFTING
29130000111 CLAMP
4011000458 BOLT GB16674-M8*20Ep.Zn-8.8
4041001017 U-BOLT LGB159-13040
4013000007 NUT GB6170-M10EpZn-8
4015000162 WASHER GB97.1-10EpZn-300HV
29130012011 BRACKET
29130001211 OIL PIPE OF LIFTING CYLINDER
4011000447 BOLT GB16674-M10*20EpZn-8.8
4011000474 BOLT GB16674-M10*25EpZn-8.8
4011000309 BOLT GB16674-M10*50EpZn-8.8
F4-2914000101 DUMP CYLINDER ASSENBLY
4011000081 BOLT GB5783-M10*20EpZn-8.8
29140009531 INDICATING ROD
4120001744 TILT CYLINDER HSGF-180*90*542-1025B
4041000177 PIPE LGB106012143
4041000056 FLANGE LGB117-312550
4011000475 BOLT GB16674-M10*30EpZn-8.8
4030000029 O-RING GB3452.1-37.5*3.55G
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
4011000309 BOLT GB16674-M10*50EpZn-8.8
4011000473 BOLT GB16674-M10*55EpZn-8.8
29140001021 BIG CHAMBER TUBE OF TILT CYLINDER
29140001131 PRESS PLATE
29140001141 RUBBER PLATE
29140009281 RUBBER PLATE
4011000797 BOLT GB5782-M10*110EpZn-8.8
29140001091 BIG CHAMBER TUBE OF TILT CYLINDER
29140001111 SMALL CHAMBER TUBE OF TILT CYLINDER
4015000162 WASHER GB97.1-10EpZn-300HV
4015000197 WASHER GB96.1-10EpZn-300HV
29140010821 STEEL TUBE
F5-2910000101 HYDRAULIC TANK ASSEMBLY
29100011251 HYDRAULIC TANK BODY
4030000130 O-RING GB3452.1-47.5*3.55G
4011000479 BOLT GB16674-M12*30EpZn-8.8
29100011341 TUBE
29100001041 PLANGED CAP
4030000234 O-RING GB3452.1-212*5.30G
4041000192 PLUG LGB13503341
4041000765 O-RING LGB168-12931
4190000008 RING MAGNET LG03-CT76*32*15
4011000082 BOLT GB5783-M10*25EpZn-8.8
4015000130 RING SNAP GB894.1-25-65Mn
29020001071 WASHER
29020001051 JOIN LEAF
29020001061 PIN
4030000065 GREASE NIPPLE JB7940.1-M10*1
4030000232 O-RING GB3452.1-170*3.55G
29100000041 FLANGE CAP
29100000051 SPRING
29100001051 STRAIN CORE
4011000458 BOLT GB16674-M8*20Ep.Zn-8.8
4030000303 O-RING GB3452.1-195*3.55G
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
29100001061 FLANGE
4120001088 GAS-EXCHANGE FILTER L1.00807-51
29100007691 PLANGED CAP
4030000233 O-RING GB3452.1-65*3.55G
4011000096 BOLT GB5783-M16*40EpZn-8.8
