Description

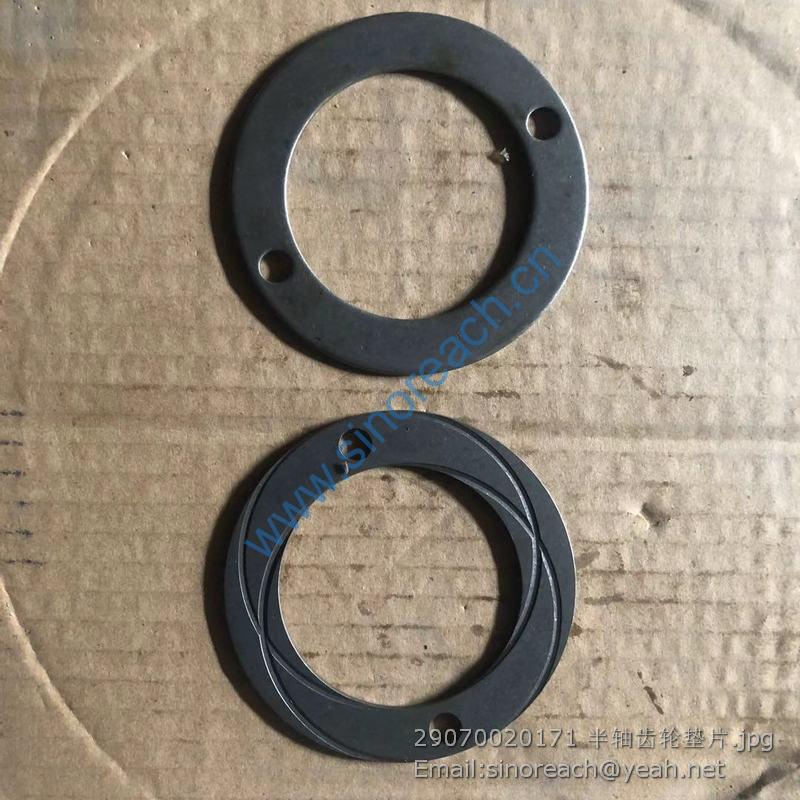

29070020171 half shaft gear gasket SDLG
55 29070000211 垫片 SPACER Y 3
56 2050900104 托架总成-371102 CARRIER ASSEMBLY-371102 Y 1
57 2050900107 前主从动螺旋伞齿轮 FRONT SPIRAL BEVEL GEAR PINION Y 1
58 2050900079 差速器左右壳 LEFT 、RIGHT CASE DIFFERENTIAL MECHANISM Y 1
1 29070000541 垫片 SPACER Y 6
2 29070000551 挡环 RETAINER RING Y 6
3 29070000561 行星齿轮 PLANET GEAR Y 3
4 4090000004 滚针GB309-5*45-GCr15 ROLLER GB309-5*45-GCR15 Y 93
5 29070000081 轮辋螺母 RIM NUT Y 10
6 29070000621 轮辋螺栓 RIM BOLT Y 10
7 29070000601 半轴 DIFFERENTIAL AXLE Y 1
8 4013000203 螺母GB6171-M20*1.5EpZn-10 NUT GB6171-M20*1.5EpZn-10 N 10
9 4015000030 垫圈GB93-20-65Mn WASHER GB93-20-65Mn N 10
10 29070010931 轮毂 HUB WHEAL Y 1
11 29070010921 行星轮架 PLANET PINION CARRIER Y 1
12 4090000008 钢球GB308-9.525-GCr15 STEEL BALL GB308-9.525-GCR15 Y 3
13 29070000611 行星齿轮轴 PLANET PINION SHAFT Y 3
14 4120000080 螺塞Q/ZB286-ZG3/4″-Q235A PLUG Q/ZB286-ZG3/4″-Q235A Y 1
15 4090000006 钢球GB308-17.462-GCr15 STEEL BALL GB308-17.462-GCr15 Y 1
16 29070009161 定位块 LOCK BLOCK Y 1
17 29070000511 太阳齿轮 GEAR-SUN Y 1
18 4015000022 挡圈GB894.1-52-65Mn RETAINER RING GB894.1-52-65Mn N 1
. 19 29070007621 盖 COVER Y 1
20 4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn N 10
21 4011000084 螺栓GB5783-M10*30EpZn-8.8 BOLT GB5783-M10*30EpZn-8.8 N 10
22 4014000016 螺钉GB70-M10*1*20EpZn-8.8 SCREW GB70-M10*1*20EpZn-8.8 N 1
23 29070000571 圆螺母 ROUND NUT Y 1
24 29070000481 驱动桥内齿轮 AXLE RING GEAR Y 1
25 4041000020 O形圈LGB308-440*3.5 O-RING LGB308-440*3.5 Y 1
26 4021000038 滚动轴承GB297-32224 BEARING GB297-32224 Y 1
27 4021000034 滚动轴承GB297-32028 BEARING GB297-32028 Y 1
28 29070000581 隔套 ISOLATED BUSHING Y 1
29 4030000146 油封HG4-692-SG170*200*15 OIL SEAL HG4-692-SG170*200*15 Y 1
30 29070000591 密封垫 SPACER Y 1
31 29070000471 油封端盖 COVER OF OIL SAL Y 1
32 4015000036 垫圈GB93-8-65Mn WASHER GB93-8-65Mn N 6
33 4011000298 螺栓GB5782-M8*45EpZn-8.8 BOLT GB5782-M8*45EpZn-8.8 N 6
