Description

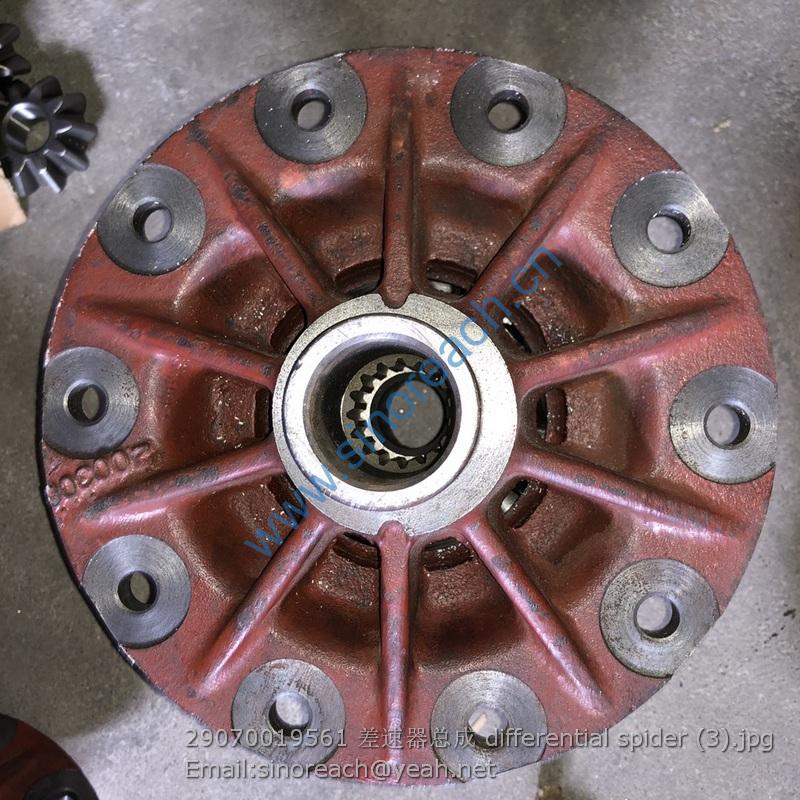

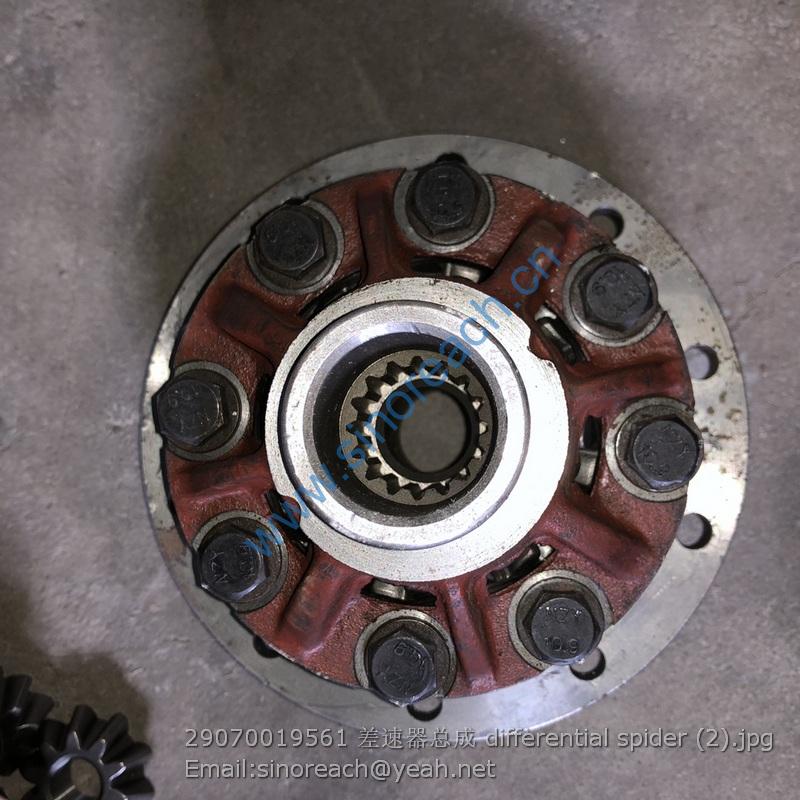

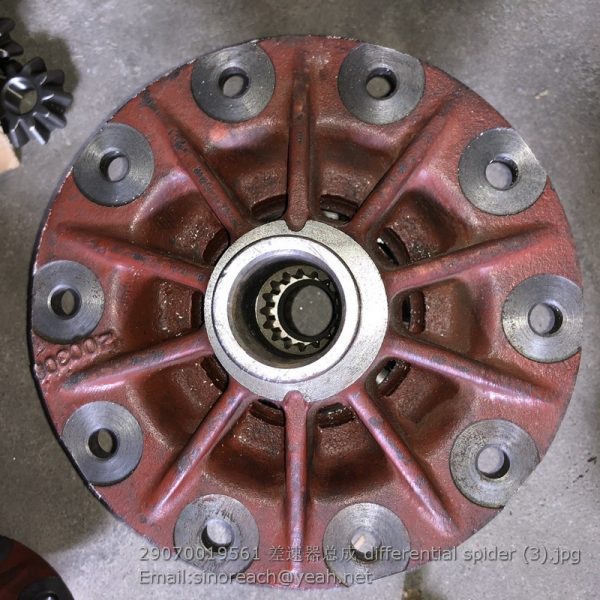

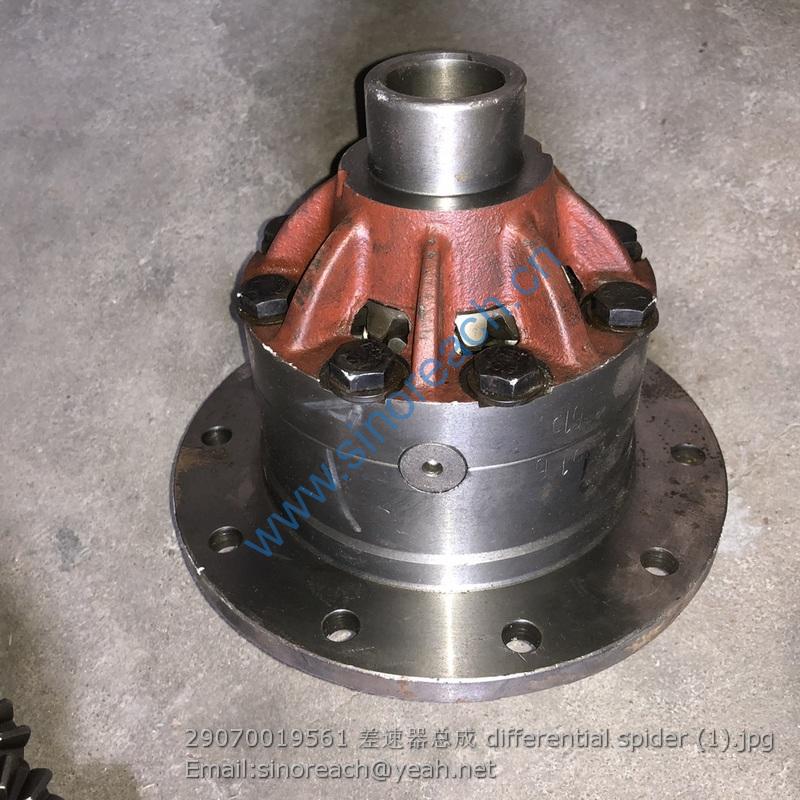

29070019561 differential spider FOR SDLG LOADER L918

31 4021000239 滚动轴承GB297-32310 Roller bearing Y 1
32 29090009201 主动螺旋伞齿轮（右） Crown wheel N 1
33 29070014241 锥齿轮垫片 Thrust washer Y 4
34 29070010161 锥齿轮 Differential pinion Y 4
35 29070010171 十字轴 Spider Y 1
36 29090009211 从动螺旋伞齿轮（左） Crown wheel N 1
37 29070014271 半轴齿轮 Differential side gear Y 2
38 29070014261 半轴齿轮垫片 Shim Y 2
39 29070010211 固定销 Pin Y 4
40 29070014281 差速器左壳 Differential housing N 1
41 29070015981 垫圈 Washer Y 18
42 4011000967 螺栓GB5786-M12*1.25*25EpZn-8.8 Screw Y 10
43 29070014311 差速器右壳 Differential housing N 1
44 4011000699 螺栓GB5785-M12*1.25*50EpZn-10.9 Bolt Y 8
45 29070010251 调整垫片 Shim Y 3
46 29070019561 差速器总成 Differential spider Y 1
47 21909005161 A513差速器左右壳 Differential housing Y 1
48 21909005151 A513后主从动伞齿轮 Crown wheel Y 1
49 21909006481 锥齿半齿总成 Gear kit Y 1

1 29120009931 多路阀固定板 Anchor plate Y 1
2 4011000479 螺栓GB16674-M12*30EpZn-8.8 Bolt Y 4
3 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 8
4 4013000011 螺母GB6170-M12EpZn-8 Nut Y 8
5 4120002125 装载多路阀ZL20DYL1-02 Control valve Y 1
6 4011000467 螺栓GB16674-M12*45EpZn-8.8 Screw Y 6
7 4041000582 直接头LGB120-02630 Nipple Y 1
8 4041000685 O形圈LGB168-12631 O-ring Y 2
9 29120006551 组合直角接头 Nipple Y 2
10 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2
11 29120006601 压板 Plate Y 1
12 29120006611 橡胶板 Rubber plate Y 2
13 4011000314 螺栓GB16674-M10*80EpZn-8.8 Bolt Y 2
14 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 2
15 4013000007 螺母GB6170-M10EpZn-8 Nut Y 2
16 4041002322 软管LGB165-014133 Hose assembly Y 1
17 4041000511 软管LGB128-012112 Hose assembly Y 1
18 4011000481 螺栓GB16674-M8*30EpZn-8.8 Bolt Y 4
19 29190008061 压盖 Flange half Y 1
20 4030000279 O形圈GB3452.1-25.0*3.55G O-ring Y 1
21 29120006591 回油胶管 Hose assembly Y 1
22 4041000796 直接头LGB120-02628 Nipple Y 1
23 4041000779 O形圈LGB168-12331 O-ring Y 1
24 4041000510 软管LGB129-012045 Hose assembly Y 1
25 29120027941 过渡块 Block Y 1
26 26130001471 螺塞 Plug Y 1
27 4041001211 组合接头LGB143-03625 Nipple Y 1
28 4030000504 O形圈GB3452.1-25.8*1.80G O-ring Y 1
29 4041000676 直接头LGB120-03630 Nipple Y 1
30 4041000756 O形圈LGB168-02631 O-ring Y 1

1 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1
2 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 2
3 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 2
4 29120015081 接头 Nipple Y 2
5 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2
6 29190007921 直通接头体 Nipple Y 1
7 29120014931 垫圈 Washer Y 15
8 4190000141 接头EW12LOMDA3C Nipple Y 1
9 29120009921 直通接头 Nipple Y 3
10 4041000592 软管LGB125-004055 Hose assembly Y 1
11 29120031511 操纵箱盖 Cover Y 1
12 4014000058 螺钉GB70.1-M6*20EpZn-8.8 Screw Y 6
13 4120002027 先导阀总成DXS-00 Control lever Y 1
14 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 3
15 4041000580 软管LGB125-004040 Hose assembly Y 1
16 4190000176 过渡接头EW10LOMDA3C Nipple Y 1
17 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 2
18 29120027921 固定板 Anchor plate Y 1
19 4011000279 螺栓GB16674-M10*60EpZn-8.8 Bolt Y 2
20 4120005063 压力选择阀SF8-D Valve Y 1
21 29120015661 固定板 Anchor plate Y 1
22 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 4
23 4011000169 螺栓GB16674-M8*70EpZn-8.8 Screw Y 4
24 4013000033 螺母GB6170-M8EpZn-8 Nut Y 4
25 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 4
26 29120018741 橡胶管夹 Clamp Y 2
27 29120018751 橡胶管夹 Clamp Y 2
28 29120015381 板 Plate Y 2
29 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2
30 29120007671 管夹 Clamp Y 431 4041001023 组合接头LGB143-01608 Nipple Y 1
32 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 2
33 29120015701 动臂大腔至选择阀胶管 Hose assembly Y 1
34 29120015401 接头 Nipple Y 8
35 4041001927 软管LGB125-003290 Hose assembly Y 1
36 4041002446 软管LGB125-003295 Hose assembly Y 1
37 4041001434 软管LGB125-003245 Hose Y 1
38 4041001451 软管LGB125-003250 Hose Y 1
39 29120015671 固定板 Anchor plate Y 1
40 4041002445 软管LGB165-004080 Hose assembly Y 1
41 4041000508 螺塞LGB135-01824 Plug Y 2
42 4041000768 O形圈LGB168-11524 O-ring Y 2
43 4041000709 直接头LGB120-01616 Nipple Y 1
44 4041000780 O形圈LGB168-11324 O-ring Y 2
45 4041000831 直接头LGB120-01816 Nipple Y 1
46 4041002431 软管LGB125-005070 Hose assembly Y 1
47 4041000774 螺塞LGB135-01422 Plug Y 1
48 4011000344 螺栓JB999-M14*1.5*32EpZn-35 Bolt Y 1
49 29120029011 先导阀进油胶管 Hose assembly Y 1
50 29120024241 先导回油管 Hose Y 1
51 4011000366 螺栓JB999-M18*1.5*40EpZn-35 Bolt Y 1
52 29120015221 垫圈 Washer Y 2
53 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1
