Description

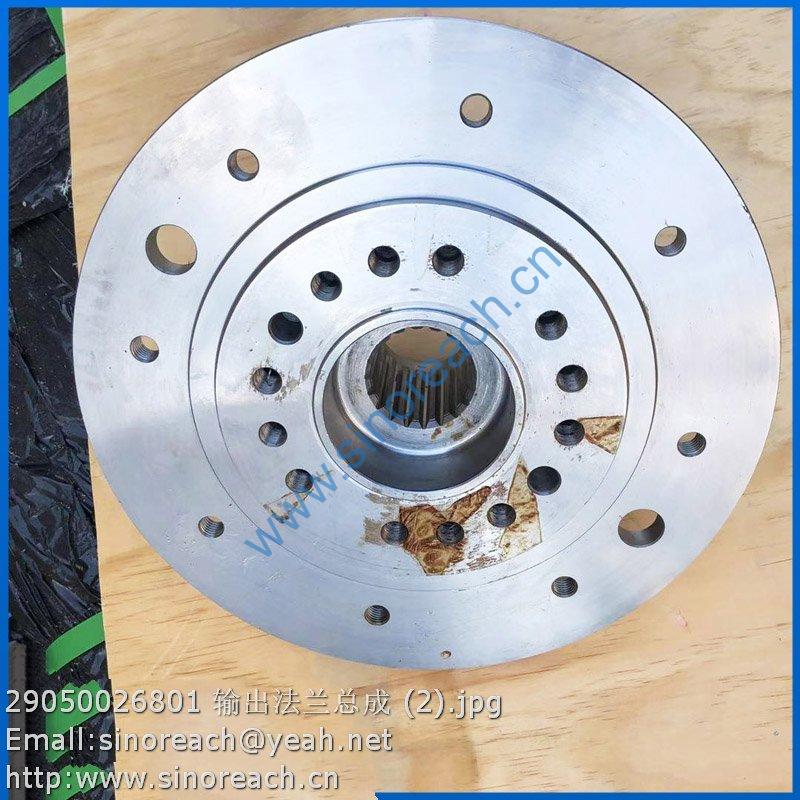

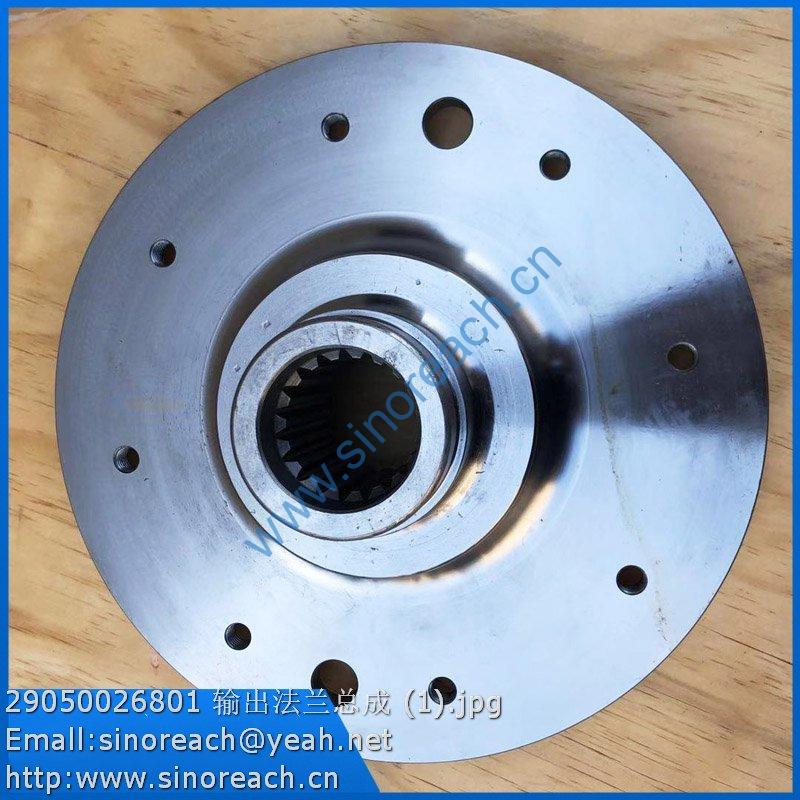

29050026801 Output flange assembly

4120002432413 CHECK VALVE GDF-32-08
4120002432401 RELIEF VALVE DFX-32-09
4120002432414 PLATE GDF-32-09
4120002432415 SPRING SEAT GDF-32-10
4120002432416 SEAT GDF-32-11
4120002432417 END CAP GDF-32-12
4090000162 STEEL BALL GB308-11.112-GCr15
4120002432418 BUSH GDF-32-13
4120002432419 BUSH GDF-32-14
4120002432420 SPRING 407428
4120002432421 SPRING SEAT GDF-32-15
4030000011 O-RING GB1235-20*2.4
4120002432422 PLUG D32-3
4030000013 O-RING GB1235-32*3.1
4120002432423 PLUG DF-32-20A
4030000610 O-RING GB3452.1-11.8*1.80G
4120002432424 PLUG DXS-18-04
4011000708 BOLT M8×20
4015000036 WASHER GB93-8-65Mn
4120002432402 SAFETE VALVE ZL50106C
4030000760 O-RING GB1235-50*3.1
4120002432425 RETURN SPRING GDF-32-16
F14-4120002418 LIFT ARM CYLINDER
4120002418302 PISTON ROD
4120002418301 SEALING KIT
4120002418301 SEALING KIT
4120002418301 SEALING KIT
4120002418301 SEALING KIT
4120002418301 SEALING KIT
4120002418303 CYLINDER COVER
4120002418301 SEALING KIT
4120002418301 SEALING KIT
4120002418301 SEALING KIT
4120002418304 CYLINDER BODY
4120002418301 SEALING KIT
4120002418301 SEALING KIT
4120002418301 SEALING KIT
4120002418301 SEALING KIT
4090000126 STEEL BALL GB308-5-GCr15
4014000171 SCREW GB70.1-M8*25-8.8
4120002418305 PISTON
4120002418306 BUSHING
4120002418301 SEALING KIT
4014000204 SCREW GB70.1-M16*55EpZn-12.9
4015000098 WASHER GB93-16-65Mn
4120002418307 SEAT
F2-2911000882 WORKING PUMP ASSEMBLY
4120000684 GEAR PUMP CBGj3166
29110008881 INTAKE OIL HOSE OF PUMP
4017000006 ADMAS APPLE JB8870-d100
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
29110001021 OUT-OIL TUBE
4030000029 O-RING GB3452.1-37.5*3.55G
4011000473 BOLT GB16674-M10*55EpZn-8.8
4012000003 DOUBLE-SCREW BOLT GB898-M12*35EpZn-8.8
4013000011 NUT GB6170-M12 EpZn-8
4015000168 WASHER GB97.1-12EpZn-300HV
29110000041 SEALING WASHER
4041000009 FLANGE LGB117-320760
4030000133 O-RING GB3452.1-56.0*3.55G
4011000320 BOLT GB16674-M12*40EpZn-8.8
29110008581 INTAKE OIL TUBE OF PUMP
F3-2913001229 LIFT ARM CYLINDER ASSEMBLY
4120002418 LIFTING CYLINDER HSGF-160*80*812-1310
29130001021 SMALL CHAMBER TUBE OF LEFT LIFT CYLINDER
4030000026 O-RING GB3452.1-32.5*3.55G
4011000475 BOLT GB16674-M10*30EpZn-8.8
29130001031 SMALL CHAMBER TUBE OF RIGHT LIFT CYLINDER
29130012421 STEEL TUBE
4030000029 O-RING GB3452.1-37.5*3.55G
29130008181 BIG CHAMBER RIGHE TUBE OF LIFTING
4041000043 FLANGE LGB117310490
29130008201 SMALL CHAMBER RIGHE TUBE OF LIFTING
29130011991 LEFT BRACKET
4011000474 BOLT GB16674-M10*25EpZn-8.8
29130000111 CLAMP
4011000458 BOLT GB16674-M8*20Ep.Zn-8.8
4011000447 BOLT GB16674-M10*20EpZn-8.8
29130001181 BIG CHAMBER TUBE OF RIGHT LIFT CYLINDER
4011000473 BOLT GB16674-M10*55EpZn-8.8
4011000309 BOLT GB16674-M10*50EpZn-8.8
29130012011 BRACKET
4041001017 U-BOLT LGB159-13040
4013000007 NUT GB6170-M10EpZn-8
4015000162 WASHER GB97.1-10EpZn-300HV
29130012411 LIFTING CYLINDER HOSE
29130001171 BIG CHAMBER TUBE OF LEFT LIFT CYLINDER
29130008241 SMALL CHAMBER LEFT TUBE OF LIFTING
29130008221 BIG CHAMBER LEFT TUBE OF LIFTING
F4-2914001061 TILT CYLINDER ASSEMBLY
4011000081 BOLT GB5783-M10*20EpZn-8.8
4015000197 WASHER GB96.1-10EpZn-300HV
29140009531 INDICATING ROD
4120001744 TILT CYLINDER HSGF-180*90*542-1025B
4015000162 WASHER GB97.1-10EpZn-300HV
4041001387 PIPE LGB106-012146
4041000056 FLANGE LGB117-312550
4011000475 BOLT GB16674-M10*30EpZn-8.8
4030000029 O-RING GB3452.1-37.5*3.55G
4041001388 PIPE LGB106-012132
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
