Description

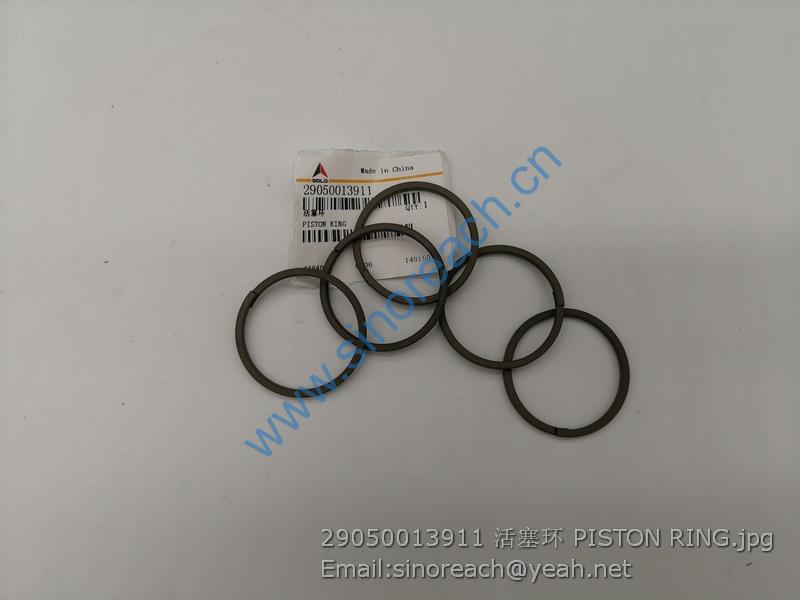

29050013911 PISTON RING

1 4011000966 螺栓GB5782-M6*35-8.8 Screw Y 2
2 29050015461 垫圈6 Washer Y 4
3 29050013751 管 Tube Y 1
4 4030000811 O形圈GB3452.1-14.0*1.80G-FPM O-ring Y 1
5 29050013791 管接头 Nipple Y 1
6 4040000019 O形圈LGB168-21324 O-ring Y 2
7 4041001459 螺塞LGB135-11422 Plug Y 1
8 4011000717 螺栓GB5782-M8*60-8.8 Screw Y 3
9 29050015471 垫圈8 Washer Y 11
10 29050014701 螺塞 Plug Y 4
11 29050013581 油分流块 Connection block Y 1
12 4030000810 O形圈GB3452.1-11.8*1.80G-FPM O-ring Y 6
13 29050018421 销 Pin Y 2
14 29050013621 回油管 Tube Y 1
15 29050013121 螺栓 Screw Y 2
16 4030000056 垫圈JB1002-12-T2 Washer Y 7
17 29050013221 管 Hose assembly Y 1
18 4030000809 O形圈GB3452.1-12.5*1.80G-FPM O-ring Y 1
19 29050014201 直接头 Nipple Y 1
20 4011000723 螺栓GB5783-M8*20-8.8 Bolt Y 2
21 29050013771 管 Tube Y 1
22 29050012991 螺栓 Screw Y 1
23 4011000715 螺栓GB5783-M8*35-8.8 Screw Y 2
24 29050013741 配油器 Oil distributor Y 1
25 4011000713 螺栓GB5782-M6*40-8.8 Screw N 2
26 29050013151 密封垫 Gasket Y 1
27 29050012981 变矩器润滑阀 Lubricating oil valve Y 1
28 29050013131 胶管 Hose assembly Y 1
29 4030000058 垫圈JB1002-18-T2 Washer Y 2
30 29050014221 螺栓 Screw Y 1

1 29070012881 轮边减速器 Hub reduction N 2
2 4120001739 制动钳 Brake caliper Y 4
3 4120001740 放气嘴 Nipple Y 8
4 29070012581 半轴 Shaft half Y 2
5 4110000818 透气嘴 Nozzle Y 1
6 4011000494 螺栓GB5786-M16*1.5*45EpZn-8.8 Bolt Y 14
7 4015000098 垫圈GB93-16-65Mn Spring washer Y 14
8 29070012591 前主传动总成 Final drive Y 1
9 29070012861 前桥壳总成 Front axle casing Y 1
10 29070000101 螺栓 Bolt Y 12
11 4015000030 垫圈GB93-20-65Mn Spring washer Y 32
12 29070000071 制动盘 Disc brake Y 2
13 29070000081 轮辋螺母 Nut Y 20
14 4011000130 螺栓GB5786-M20*1.5*50EpZn-8.8 Bolt Y 20
15 29070012481 磁性螺塞 Plug Y 2
16 29070012721 前桥标牌 Name plate N 1
17 4019000012 铆钉GB827-3*5-BL2 Rivet Y 4
18 4011000941 螺栓GB5785-M20*1.5*60EpZn-10.9 Screw Y 4
19 29070014552 防护板 Guard plate Y 2
20 29070011121 垫圈 Washer Y 4

1 29070000151 调整垫片 Shim Y 3
2 29070000161 调整垫片 Shim Y 4
3 29070000171 调整垫片 Shim Y 5
4 4011000067 螺栓GB5782-M14*55EpZn-8.8 Bolt Y 7
5 4015000027 垫圈GB93-14-65Mn Spring washer Y 7
6 4013000066 螺母GB889.2-M33*1.5-8 Lock nut Y 1
7 29070000221 垫圈 Washer Y 1
8 4030001002 密封圈GB13871.1-FB08010010-D Sealing ring Y 1
9 4030000035 O形圈GB3452.1-53.0*5.30G O-ring Y 1
10 29070000241 挡圈 Retaining ring Y 1
11 4030000789 密封圈GB13871.1-FB08010012-F Sealing ring Y 1
12 29070000251 密封盖 Sealing cover Y 1
13 29070000261 密封垫 Gasket Y 1
14 4021000030 滚动轴承GB297-31313 Roller bearing Y 1
15 4011000186 螺栓GB5782-M12*55EpZn-8.8 Bolt Y 1
16 4015000026 垫圈GB93-12-65Mn Spring washer Y 1
17 29070000271 轴承座 Bearing seat Y 1
18 29070022561 隔套 Sleeve Y 1
19 4021000032 滚动轴承GB297-31314 Roller bearing Y 1
20 29070012601 主动螺旋伞齿轮（左） Crown wheel N 1
21 4021000027 滚动轴承GB283-NUP2307 Roller bearing Y 1
22 4015000020 挡圈GB894.1-35-65Mn Retaining ring Y 1
23 29070000301 止推螺栓 Screw N 1
24 4013000052 螺母GB6173-M27*2-05 Nut Y 1
25 29070000311 锁紧片 Lock washer Y 1
26 4016000124 销GB119.2-10u8*30 Pin Y 2
27 4041000019 O形圈LGB308-430*3.5 O-ring Y 1
28 29070000321 托架 Center housing N 1
29 29070000331 锥齿轮垫片 Thrust washer Y 4
30 29070000341 锥齿轮 Differential pinion Y 4
