Description

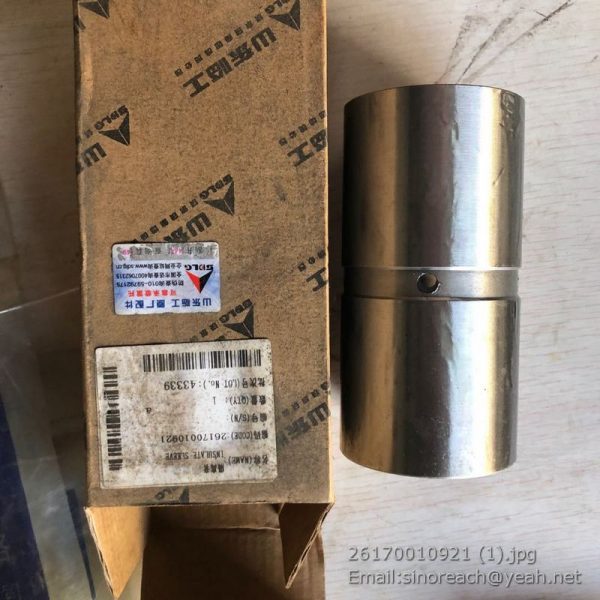

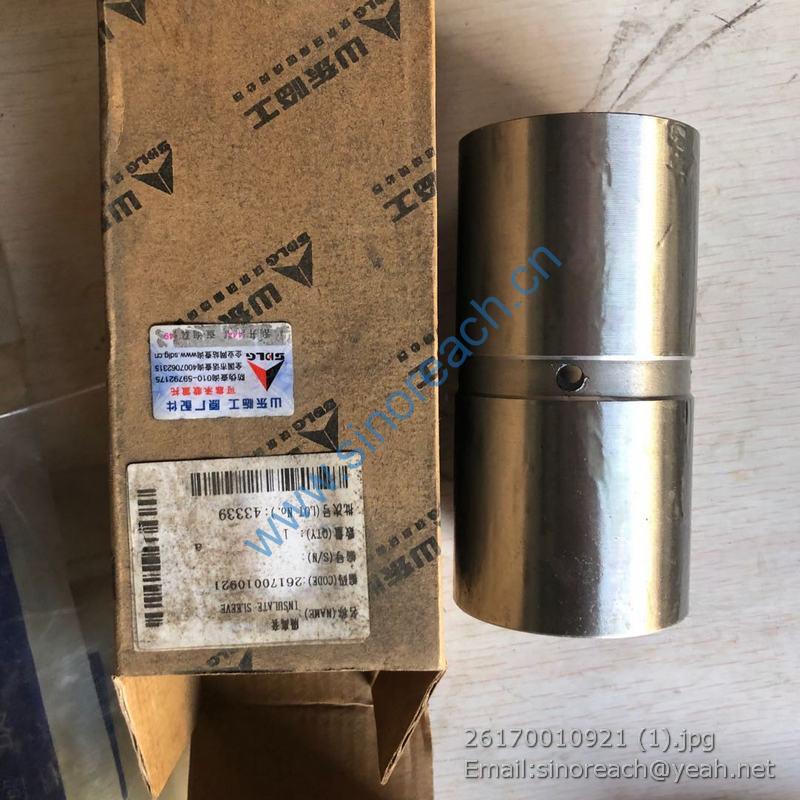

26170010921 bushing
3030900153 GEAR-SUN
4021000019 BEARING GB276-6210N
4015000024 RETAINNER RING GB894.1-90-65Mn
3030900152 CONNECTING DISH FOR THE DIRECT RANGE
4015000026 WASHER GB93-12-65Mn
4011000125 BOLT GB5786-M12*1.25*35EpZn-8.8
3030900172 INTERNAL GEAR-RING ASSEMBLY FOR FIRST RANGE
3030900144 FIRST RANGE PISTION
3030900113 SEALING RING
3030900159 MOUNTING PLATE
3030900145 CYLINDER-HOUSING FOR THE FIRST RANGE
3030900146 SQUARE SEAL
7200000115 REVERSING PLANET CARRIER ASSENBLY
7200000114 ONE STEP PLANET CARRIER ASSENBLY
C6-2030900019 4TH SHAFT ASS’Y（Ⅱ）
4021000015 BALL BEARING GB276-6022
3030900112 PIN
3030900103 BACK DISK FOR THE SECOND SPEED
4013000162 NUT GB6170-M8-8
4015000036 WASHER GB93-8-65Mn
2030900020 DRIVE DISK ASS’Y FOR THE SECOND SPEED
3030900104 SHAFT FOR THE SECOND SPEED
3030900106 DRIVEN DISK FOR THE SECOND SPEED
4011000105 BOLT GB5783-M8*20EpZn-8.8
4021000016 BALL BEARING GB276-6204
4015000023 RIONG SNAP GB894.1-65-65Mn
3030900114 DISH SPRING
3030900107 PISTION
3030900113 SEALING RING
3030900115 PIN
3030900109 CYLINDER ASS’Y FOR THE SECOND SPEED
3030900108 OUTPUT GEAR OF THE INTER-SHAFT
4021000024 BALL BEARING GB276-6312
3030900111 SEAL
4090000011 STEEL WIRE GB343-1.2*1200-SZ
3030900105 BOLT M12X1.25X100
4015000026 WASHER GB93-12-65Mn
3030900110 SEAL
C7-2905001745 OUTPUT SHAFT ASSEMBLY
4011000084 BOLT GB5783-M10*30EpZn-8.8
29050011151 THRUST SPACER
29050011161 WASHER
4030000536 O-RING GB3452.1-122*3.55G
29050017481 OIL SEAL SEAT
4021000024 BALL BEARING GB276-6312
29050017461 OUTPUT SHAFT
3030900121 GAER OF THE OUT SHAFT
29050016931 circlip
4030000768 SEALING RING GB13871.1-FB070095-F
29050017471 PACKET
29050012731 ADJUST SHIM
29050012741 ADJUST SHIM
29050012751 ADJUST SHIM
29070000221 WASHER
4013000066 NUT GB889.2-M33*1.5-8
D1-2906000785 TRANSMISSION ASSEMBLY
4110000746 SPEED CONTROL SETUP LG936L
4110000747 SPEED CONNECTION SETUP
4011000137 BOLT GB16674-M12*20EpZn-8.8
4016000143 PIN GB882-B8*26EpZn-35
4015000072 WASHER GB97.1-8EpZn-300HV
4016000183 PIN GB91-3.2*22EpZn-Q235A
29060009291 INDUCT BLOCK
4013000033 NUT GB6170-M8EpZn-8
29060009281 BEARER
4011000102 BOLT GB5783-M8*16EpZn-8.8
D2-4110000746 TRANSMISSION CONTROL INSTITUTION LG936L
4110000172006 HAND BALL LGHD9530001
4110000172007 HANDLE PARTS LGHD9530002
4110000172008 COVER LGHD9530003
4110000172025 BUSHING LGHD9530004
4110000172010 NUT LGHD9530005 M10
4110000172011 NUT LGHD9530006 M36
4110000172012 NUT LGHD9530007 M5
4110000172013 BOX LGHD9530008
4110000172009 MOUNTED PLATE
4110000172015 BOLT LGHD9530010 M8
4110000172016 NUT LGHD9530011 M8
4110000172017 WASHER LGHD9530012
4110000172018 PIN LGHD9530013
4110000172019 CIRCLIP LGHD9530014
4110000172020 GEARED SLEEVE PARTS LGHD9530015
4110000172021 RACK LGHD9530016
4110000172022 RACK CANISTER LGHD9530017
4110000746001 FLEXIBLE ASSEMBLY LGHD9360001
4110000746002 FLEXIBLE BRACKET LGHD9360002
4110000659001 CONNECTING LINK LGHD9560004
D3-4120000064 TRANSMISSION CONTROL LG03-BSF VALVE(350802)
4120000064005 VALVE BODY ZL30.05.17-1
4015000209 WASHER JB982-30
4120000064003 BOLT ZL30.05.17-2
4120000064007 VALVE ROD ZL30.05.17-4
4120000064013 VALVE ROD ZL30.05.17-5a
4120000064002 SPRING ZL30.05.17-6
4120000064006 MANOMETER JOINT 403727-A
4120000064028 SPRING ZL30.05.17-7
4090000120 STEEL BALL GB308-12.7-GCr15
4120000064024 VALVE ROD ZL30.05.17-8
4015000122 WASHER JB982-24
4120000064031 BOLT ZL30.05.17-10
4120000064034 WASHER ZL30.05.17-11/2
