Description

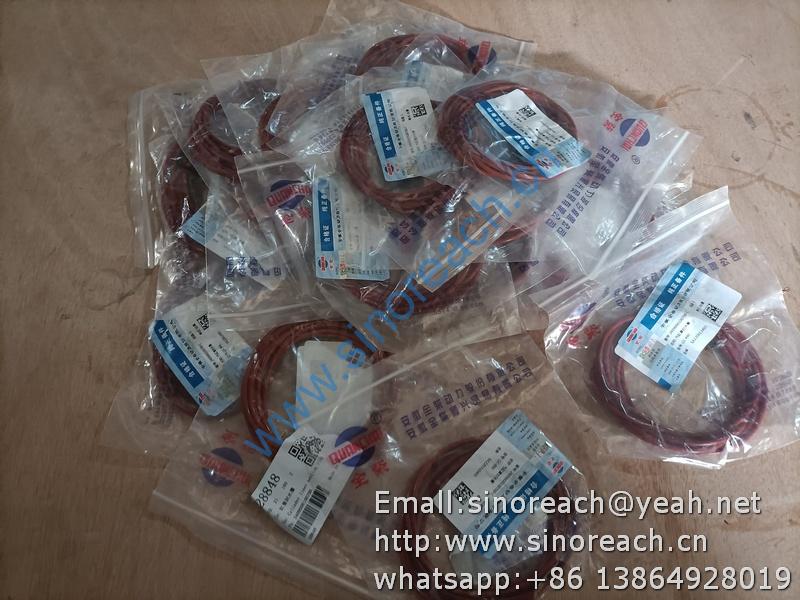

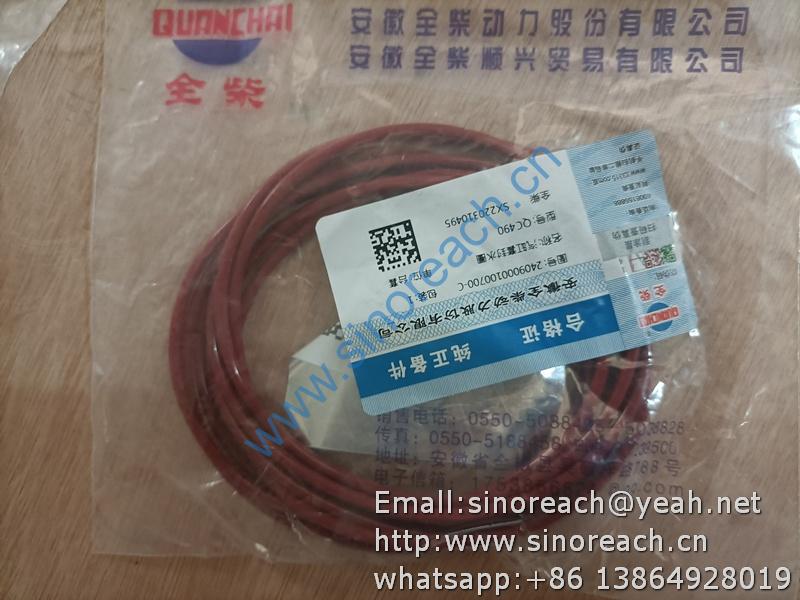

2409000100700 Cylinder liner seal water ring for QUANCHAI QC490 spare parts

17
M8×20
螺栓 Bolt
4
GB/T5783
18
B8×20
销 Pin
1
GB/T119
19
 16
垫圈 Washer
2
HG4-330-66
20
2410200203600
回油接头
1
4102Q-02036
21
DR55×75×12
油封 Oil seal
1
HG4-692-67
22
2408001201000
定时指针 Timing pinter
1
QC480Q-12010
23
M8×65
螺栓 Bolt
4
GB/T5782

1
2408001410000
第 一 缸 高 压 油 管 部 件 first High pressure
injection line
1
QC480Q—14100
2
2408001420000
第二缸高压油管部件 Second High pressure
injection line
1
QC480Q—14200
3
2408001430000
第三缸高压油管部件 High pressure injection
line
1
QC480Q—14300
4
1408501400100
夹箍
2
N85-14001
5
M5×20
螺钉 Bolt
2
GB/T823
6
￠5
垫圈 Washer
2
GB/T859
7
M5
螺母 Nut
2
GB/T6170
