Description

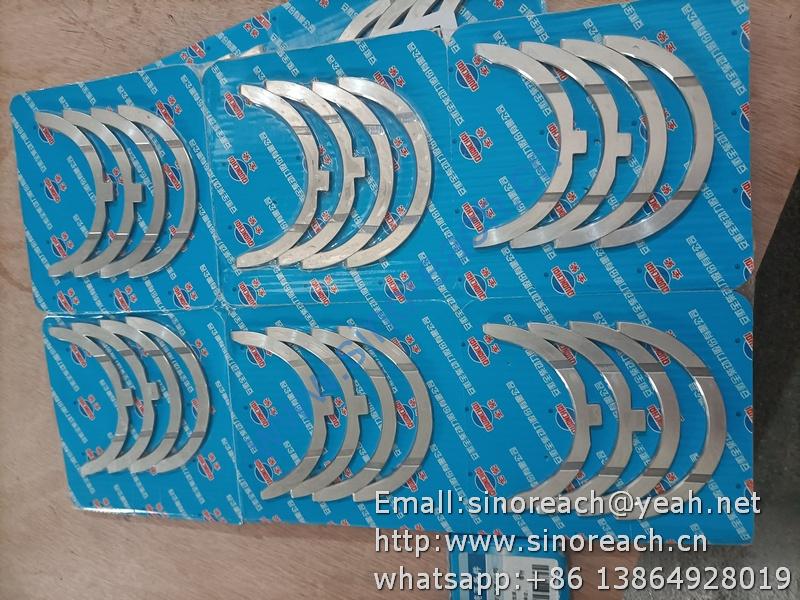

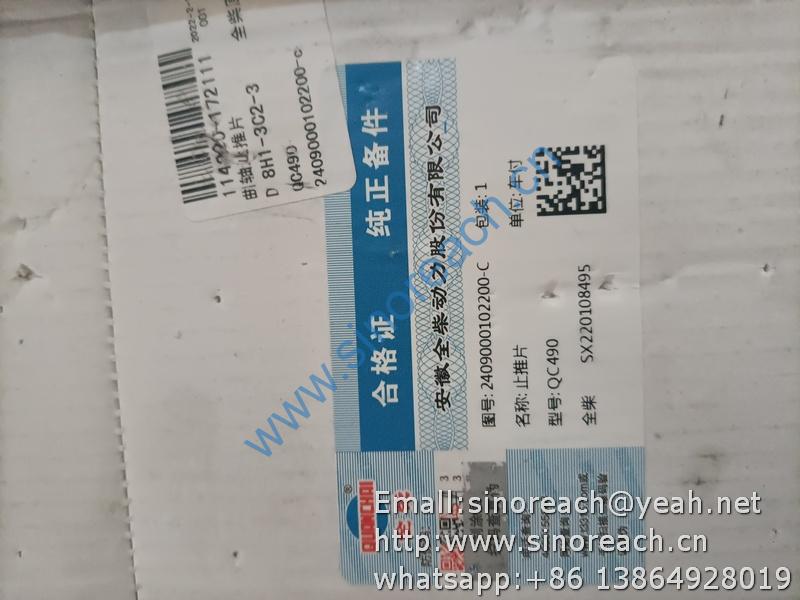

2409000102200 2409000102100 Thrust piece for QUANCHAI QC490 spare parts

1
2308001500200
机油泵盖 Pump cover
1
QC380Q-15002
2
2308001500300
机油泵体垫片 Lubricating oil pump gasket
根据需要
QC380Q-15003
3
2308001500700
机油泵外转子 Outer
1
QC380Q-15007
4
2308001500100
机油泵体 Pump body
1
QC380Q-15001
5
2308001500600
机油泵体衬套 Pump body bush
1
QC380Q-15006
6
2308001520100
滤油网撑 Circlip
1
QC380Q-15201
7
2308001520200
滤网焊合件 Filter screen assembly
1
QC380Q-15202
8
M8×20
螺栓 Bolt M8×20
4
GB/T5783
9
￠8
垫圈 Washer 8
4
GB/T93
10
2308001520300
滤网体 Filter screen
1
QC380Q-15203
11
2308001510000
机油泵内转子合件 Inner assembly
1
QC380Q-15100
12
3×13
半圆键 Woodruff key 3×5×13
1
GB/T1099
13
2408001510100
机油泵传动齿轮 Lubricating oil pump driven gear
1
QC480Q-15101
14
￠10
垫圈 Washer 10
1
GB/T93
15
M10
螺母 Nut M10
1
GB/T6170
