Description

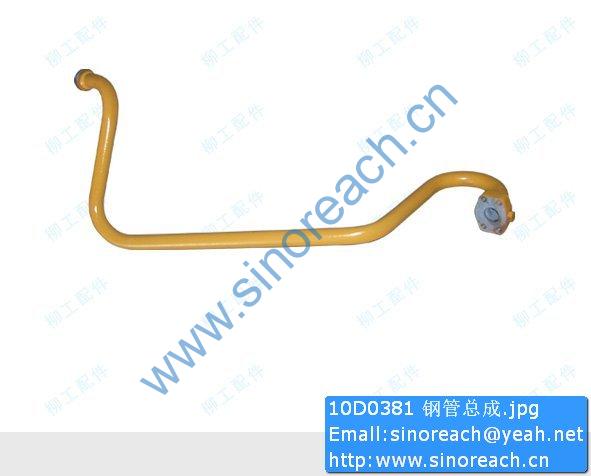

10D0381 steel pipe assembly for LIUGONG part
Hydraulic system
47A0077 Double roller 30TT4.5SMC120001
07B0044 Retaining ring GB893.1-86;47
21B0009 Ball bearing 6204 GB/T276-1994; 20×47×14
07B0070 Retaining ring GB894.1-86;20
34A1191 Roller shaft 30CD100001C
06B0008 washer GB93-87;12
01B0268 Bolt GB5782-86; M8×60-8.8-Zn.D
13A2755 connection board
00B0102 Bolt GB5783-86; M8×35-8.8-Zn.D
06B0005 Washer GB97.1-85; 8-140HV-Zn.D
00B0002 Bolt GB5783-86; M10×35-8.8-Zn.D
06B0002 washer GB93-87;12
03B0053 Nut GB6170-86; M10-8-Zn.D
00D2636 Four-way base 30TT4.5SMC140500
12B0285 O-ring GB3452.1-92; 10.6×1.8
00A2436 connector
05C1439 Hose assembly 30TT4.5SMC140600
11A2998 fixed plate 30CD100003C
17A2221 Mounting seat 30CD100002C
00A2435 Take over
06C4249 Hose assembly
Multi-way valve control assembly
24C0781X0 Multi-way valve control assembly GB97.1-85 10-140HV-Zn.D
06B0001 Washer GB882-86 B8×28
08B0007 pin
60A1149 pin GB97.1-85 6-140HV-Zn.D
86A0883 handle GB5783-86 M10×25-8.8-Zn.D
06B0066 Washer GB97.1-85 12-140HV-Zn.D
86A0885 handle GB6170-86 M10-8-Zn.D left
03B0053 Nut GB93-87 10
86A0884 handle
00B0012 Bolt GB5783-86 M6×12-8.8-Zn.D
06B0002 Washer GB93-87 6
Multi-way valve assembly
12C1917 Triple multi-way valve
12B0339 O-ring GB1235-76; 24×2.4; YI9424
30C1518 connector
To
To
Optional side shifter
Side shifter
12B0380 O-ring seal GB1235-76; 14×2.4
06C3937 Hose assembly
43C1631 side shifter (domestic)
06C3936 Hose assembly
Side shifter
06C3937 Hose assembly
12B0380 O-ring seal GB1235-76; 14×2.4
06C3936 Hose assembly
43C0847 side shifter (Cascade)
