Description

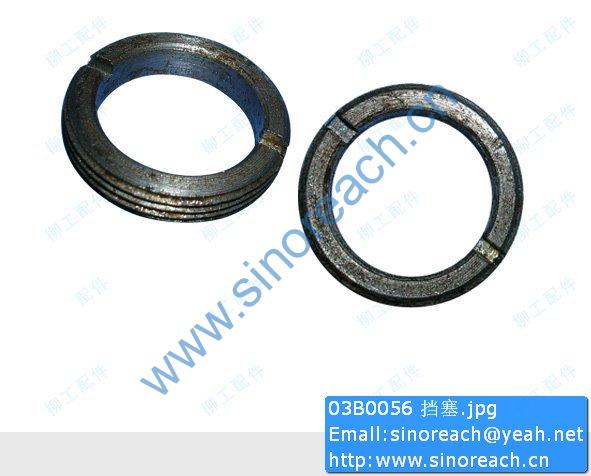

03B0056 Stop plug for liugong part

11D0047 ZL40B.25.6 铰接销 Pin
72A0005 ZL40B.11-4 齿套 Teeth Sleeve
57A0138 ZLC40B.11-3 铜垫 Washer
55A0176 ZL40B.25-3 下钢套 Bushing
55A0177 ZL40B.25-4 上钢套 Bushing
11D0045 ZL40B.25.4 缸头销 Pin
60A0115 ZLC50C.11-3 轴 Shaft
57A0058 ZLC50C.11-2 调整垫 Washer
55A0178 ZL40B.25-6 十字轴钢套 Bushing
10B0014 GB1152-89 油杯M10×1 Grease Fitting
34C0034 ZL20.11.3 密封圈 Seal
20A0241 ZLC50C.11-4 罩 Cap
22D0017 ZLC50C.11.1 铲斗 Bucket
11E0026 ZLC50C.25 侧卸斗液压系统 Hydraulic System
25D0011 ZLC50C.11.3 托架 Carrier Assem
35C0013 ZL50C.11.10 密封圈 Seal
11D0004 ZL50C.11.11 铲斗下销轴 Pin
16A0175 ZLC50C.11-6 左底板 Plate
16A0176 ZLC50C.11-7 右底板 Plate
11D0001 ZL50C.11.2 铲斗上销轴 Pin
57A0058 ZLC50C.11-2 调整垫 Washer
11A0085 ZLC50C.11.2 销 Pin
00B0014 GB5783-86 螺栓M16×40 Bolt
06B0015 GB93-87 垫圈16 Washer
60A0009 ZL40B.11-5 销 Pin
76A0003 ZL40B.11-6 垫圈 Washer

10C0034 ZLC50C.25.1 侧卸斗油缸码 Cylinder Assem
06C0121 ZLC50C.25.3 油缸大腔φ19软管 Hose Assem
06C0120 ZLC50C.25.2 油缸小腔φ19软管 Hose Assem
10D0262 ZLC50C.25.5 侧卸缸大腔钢管 Tube Assem
02C0113 ZL50C.25.2.4 叉体动臂间φ19软管 Hose Assem
32C0016 ZL50C.25.2.7 活动铰接头 Rolational Fitting
10D0248 ZL50C.25.2.8 左动臂上小腔钢管 Tube Assem
10D0249 ZL50C.25.2.9 右动臂上大腔钢管 Tube Assem
02C0017 ZL50C.10.14A 分配阀回油钢管 Tube Assem
02C0118 ZL50C.25.2.12 分配阀叉缸大腔钢管 Tube Assem
02C0117 ZL50C.25.2.10 分配阀叉缸小腔钢管 Tube Assem
06C0118 ZL50C.25.2.11 车架动臂间φ19软管 Hose Assem
12C0018 FPF32III 分配阀 Valve
23C0013 ZL50C.25.2.13 操纵杆系 Hydraulic Hand Control Group
02C0109 ZL50Ca.10.13 接转斗油缸小腔钢管 Tube Assem
02C0108 ZL50Ca.10.12 分配阀至转斗大腔钢管 Tube Assem
02C0107 ZL50Ca.10.11 分配阀至动臂油缸小腔钢管 Tube Assem
02C0101 ZL50Ca.10.10 分配法至动臂大腔钢管 Tube Assem
21A0794 ZL50C.25.2-2 板 Clamp
21A0777 ZL50.27.2.3-1 固定板 Clamp
10D0261 ZLC50C.25.4 侧卸缸小腔钢管 Tube Assem
02C0120 ZLC50C.25.1.1A 侧卸斗油缸大腔钢管 Tube Assem
02C0126 ZLC50C.25.1.4A 侧卸斗油缸小腔钢管 Tube Assem
03A0042 ZL50C.25.2.7-1 接头芯子 Fitting Core
15D0068 ZL50C.25.2.7.1 接头体 Fitting
12B0379 GB1235-76 O形圈30*3.1 “O”Ring
35A0089 ZL50C.27.2.9-1 挡圈 Snap Ring
ZL50C.27.2.9-2 垫圈 Washer
07B0027 GB894.1-86 挡圈30 Snap Ring

23C0035 操纵手柄总成 Control Group
12C0099 DJS3-XU/UU/XX 先导阀 Valve GP-Pilot
30C0016 ZL50E.10.22 接头 Tie-in
05C0148 软管总成 Hose Assem
07C0249 软管总成 Hose Assem
12C0100 分配阀 Distributing Valve
10D0596 钢管 Tube Assem
10D0592 钢管 Tube Assem

34C0113 GB10708.3-89 防尘圈 Seal
72A0126 ZLC50C.25.1-5 缸盖 Head
14D0015 ZLC50C.25.1.2 活塞杆 Rod Assem
13B0126 唇形密封圈 Seal
34C0030 GS55013-0700-46K337-8307 斯特封 Seal
12B0107 GB3452.1-92 O形圈 “O”Ring
76A0027 ZLC50C.25.1-7 挡圈 Seal
13D0054 ZLC50C.25.1.3 缸体 Cylinder Assem
12B0048 GB3452.1-92 O形圈 “O”Ring
34C0032 GS55044-1250-46N347-830 格来圈 Seal
50A0028 ZLC50C.25.1-4 活塞 Piston
80A0074 ZLC50C.25.1-1 支撑环 Ring
03B0383 CB084245-3 尼龙锁紧螺母M42X2 Nut
80A0075 ZLC50C.25.1-6 支撑环 Ring
01B0235 GB5785-86 螺栓 Bolt
06B0019 GB93-87 垫圈20 Washer
