Description

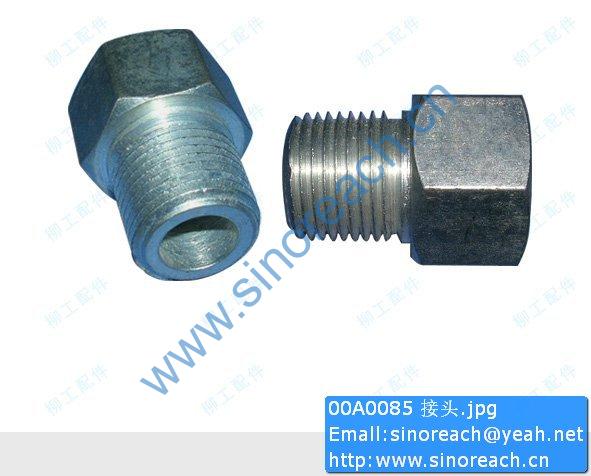

00A0085 connector for liugong part

D02A-302-01a Pressure valve body
D02A-110-01a Main bearing upper bush
D02A-111-03 crankshaft thrust bearing
GB/T879-12*12 Elastic cylindrical pin
D02A-129-30a Gear chamber gasket
GB/T119-A10*20 cylindrical pin
Q/SC622-M12*50 Hexagon flange bolts
Q/SC622-M8*20 Hexagon flange bolts
D02A-114-01c camshaft thrust plate
D02A-162-01 Cam bearing seat hole bulkhead (φ70)
GB/T5783-M8*20-10.9 Hexagon head bolts
D02A-115-01b rear cover
D02A-121-01a Rear cover gasket
GB/T119-A12*24 cylindrical pin
Q/SC1294-10 Composite sealing hard washer
Q/SC584.2-M10*1 Hexagon socket head plug
Q/SC622-M6*16 Hexagon flange bolts
D02A-116-01 rear cover O-ring seal
D02A-118-02b crankshaft rear end oil seal
D19-001-02 Welded parts of suction pipe
D19-105-01 Suction pipe bracket
D19-114-01a Suction pipe flange gasket
GB/T6170-M6-Y Type I Hexagon Nut
GB/T70-M6*50 Hexagon socket head screw
GB/T93-6 standard spring washer
GB/T97.2-6-200HV-Y flat washers
Q/SC622-M6*12 Hexagon flange bolts
Q/SC622-M6*20 Hexagon flange bolts
D02A-164-01 Hexagon socket screw plug (Z1/2)
D03-001-40a Welding parts of oil pan
D03-110-02+A gasket
D03-110-03+A gasket
Q/SC587.1-M18*1.5 screw plug
Q/SC587.1-M22*1.5 Hexagon head plug
Q/SC622-M8*16 Hexagon Flange Bolt
D02C-101-01B+B flywheel housing
D02C-103-01 pointer
D02C-104-05 cover
GB/T5782-M8*45 six hexagon head bolts
GB/T6177-M8-Y Hexagon Flange Nut
Q/SC587.1-M18*1.5 screw plug
Q/SC622-M12*40-10.9 Hexagon flange bolts
Q/SC622-M6*12 Hexagon flange bolts
D59-001-08A+B Solenoid valve bracket welding parts
D59-105-06a Shutdown solenoid
D59-114-01 Slotted flat point set screws
GB/T5783-M6*16 Hexagon flange bolts
GB/T5783-M6*20 Hexagon Bolt
GB/T6170-M8-Y Type I Hexagon Nut
GB/T6177-M6-Y Hexagon flange bolts
GB/T91-2*12-Zn.D Split pin
GB/T93-6 standard spring washer
GB/T93-8 standard spring washer
GB/T97.1-6-200HV-Y flat washer
GB/T97.1-8-200HV-Zn.D flat washers
D26-010-01 Bracket welding parts
D26-310-01 bolt
D02A-013-30a Welding parts of oil pump fixing bracket
D02A-173-31 Oil pump bracket
D07-103-02 high pressure oil pump gear
D26-030-02a Fuel return joint
GB/T6177-M10-Y Hexagon flange nuts
GB/T849-8 spherical washer
GB/T899-GM10-M10*35-8.8-Y stud bolt
GYD226 fuel injection pump assembly
Q/SC622-M10*20 Hexagon flange bolts
Q/SC622-M10*30 Hexagon flange bolts
Q/SC622-M8*80 Hexagon Flange Bolt
D02C-104-03 cover
D02C-105-03 Cover plate gasket
Q/SC622-M8*16 Hexagon Flange Bolt
D00-142-01+B air compressor end cover
D02A-164-01 Hexagon socket screw plug (Z1/2)
D02B-106-01a PTO interface gasket
D02B-115-02 Steering pump gasket
GB/T6177-M12-Y Hexagon flange nuts
GB/T900-GM12-M12*35-8.8-Y Stud bolt
D02A-107-30 Cylinder head long bolt
D02A-108-30 Cylinder head short bolt
D02A-109-30b Cylinder head gasket
D02A-312-01 cylindrical pin
D02A-005-01 Welding Parts of Filling Pipe
D02A-006-01a Fuel cap parts
D04-007-30 Rocker arm shaft assembly
D04-120-30 Remote arm shaft fastening bolt
D04-128-30A+B push rod
Q/SC622-M8*45-10.9 Hexagon flange bolts
D02A-166-01 Screw plug (Z1/8″)
D04-144-30 Exhaust pipe gasket
D04-145-30a Exhaust pipe bolt
D04-320-01 stop washer
D13-101-38 Exhaust pipe
D04-147-32 Injector pressure plate
D04-148-30 Injector fastening bolt
D04-302-02 Injector pressure plate spacer
D28-001-32 Injector parts
D26-001-30c High pressure oil pipe components (first cylinder)
D26-002-30b High-pressure oil pipe components (second cylinder)
D26-003-30b High-pressure oil pipe components (third cylinder)
D26-004-33 high pressure oil pipe parts (fourth cylinder)
D26-005-30b High-pressure tubing parts (fifth cylinder)
D26-006-30b High-pressure oil pipe parts (sixth cylinder)
D26-034-01 Upper clip welding parts
D26-035-01 Welding parts of oil pipe fixing bracket
D26-104-01 Clip liner
D26-104-02 Clip liner
