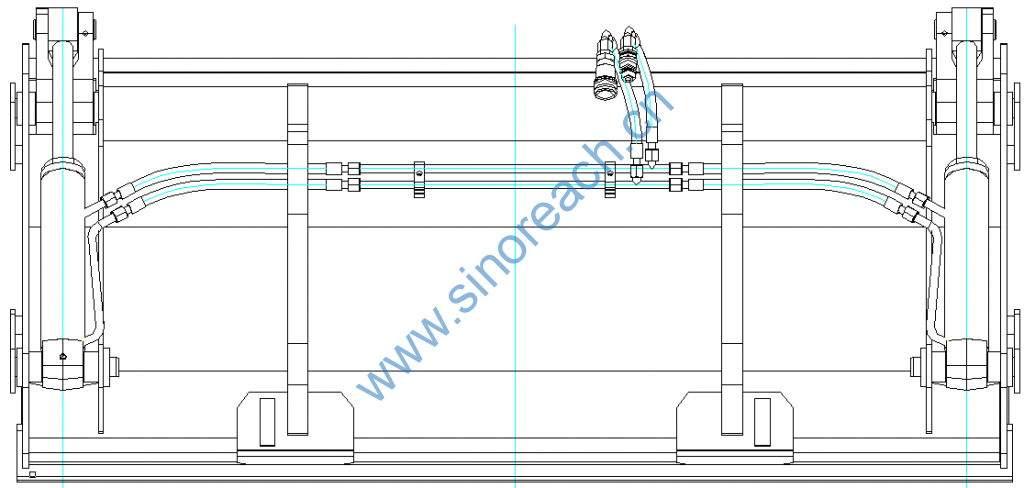

43C1540 Bucket LIUGONG parts

43C1540 (including bucket and hydraulic system components) 43C1540 0.72 CLG816G, CLG816C including bucket and hydraulic system components

43C1540 铲斗 1 43C1540(000)-/1
22D0651 后斗身 1 43C1540(000)-1/1
16A5525 切削刃 1 22D0651(002)-7/1
22D0652 前斗身 1 43C1540(000)-2/1
16A4345 主切削板 1 22D0652(000)-4/1
16A5525 切削刃 1 22D0652(000)-6/1
00C1291 铲斗油缸管路 1 43C1540(000)-3/1
10C0134 左夹斗油缸 1 00C1291(001)-1/1
06C5666 软管总成 6 00C1291(001)-2/6
12B0489 O形圈 7.5×1.5 12 00C1291(001)-3/12
15H0060 管夹 2 00C1291(001)-4/2
00B0002 螺栓 M10×35-8.8-Zn.D 2 00C1291(001)-5/2
06B0347 垫圈 10-Zn.D 2 00C1291(001)-6/2
10D4621 钢管总成 1 00C1291(001)-7/1
10D4622 钢管总成 1 00C1291(001)-8/1
30C0064 快换接头 20 1 00C1291(001)-9/1
12B0491 O形圈 23.47×2.62 2 00C1291(001)-10/2
07J0002 挡圈 2 00C1291(001)-11/2
00A4240 接头 2 00C1291(001)-12/2
30C0063 快换接头 20 1 00C1291(001)-13/1
10K0020 右夹斗油缸 1 00C1291(001)-15/1
60H0047 销 2 43C1540(000)-4/2
01B0033 螺栓 M10×80-8.8-Zn.D 2 43C1540(000)-5/2
03B0058 螺母 M10-8-Zn.D 2 43C1540(000)-6/2
11L0030 销 4 43C1540(000)-7/4
13B0424 防尘圈 40×55×7 4 43C1540(000)-8/4
55H0038 轴套 40×55×95 2 43C1540(000)-9/2
00B0011 螺栓 M12×25-8.8-Zn.D 4 43C1540(000)-10/4
06B0028 淬硬垫圈16 4 43C1540(000)-11/4
06B0127 垫圈 12-140HV-Zn.D 4 43C1540(000)-12/4
10B0014 油杯 M10×1 2 43C1540(000)-13/2
