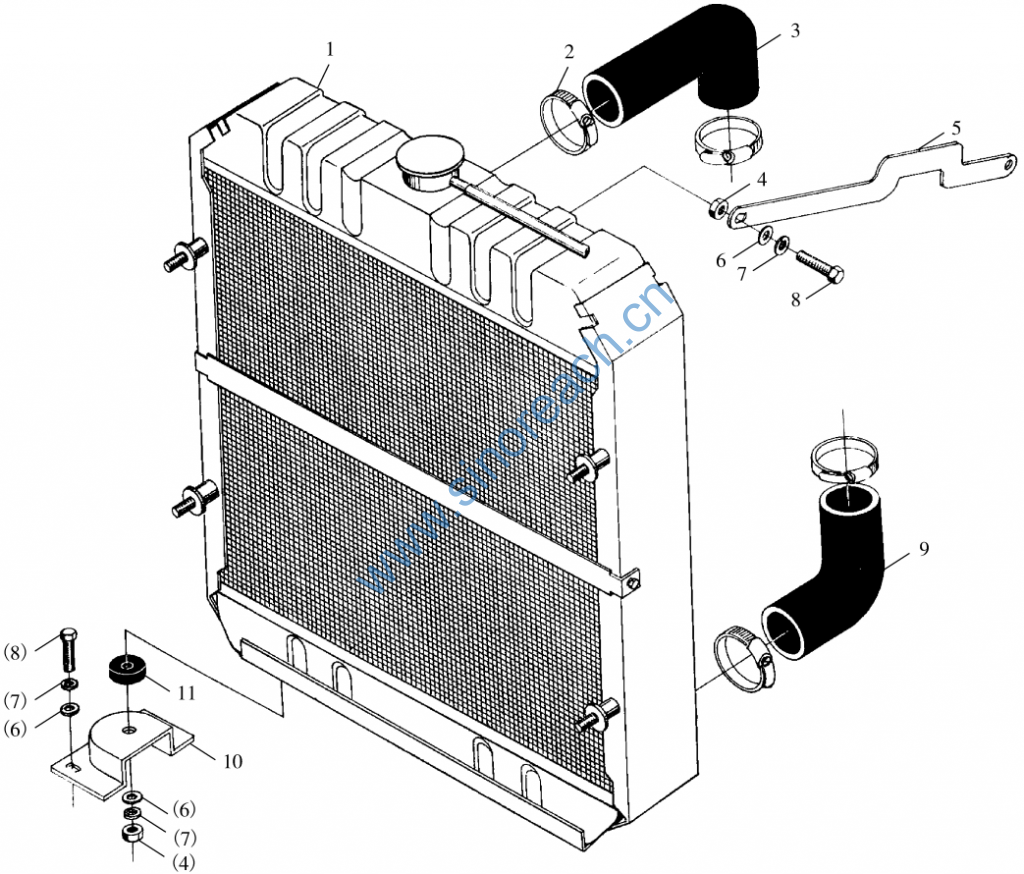

YTR4105T1.540100 SP119852 Radiator assy YTO

1 YTR4105T1.540100 SP119852 SP119852 散热器总成 Radiator assy

2 JK12A SP119804 SP119804 胶管卡箍 Hoop, rubber hose

3 YTR4105T1.540002 SP111782 改用32H0001 散热器进水胶管 Water inlet rubber hose, radiator

4 GB/T6170-2000 螺母M10-Zn.D Nut M10

5 YTR4105T1.540005 拉板 Pull band

6 GB/T95-1985 垫圈10-Zn.D Washer10-Zn.D

7 GB/T93-1987 垫圈10 Washer10

8 GB/T5783-2000 螺栓M10×25-Zn.D Bolt M10×25-Zn.D

9 YTR4105T1.540001A SP111781 散热器出水管 Water outlet pipe, radiator

10 YTR4105T1.540003 散热器支座 Supporting seat, radiator

11 YTR4105T1.540004 橡胶垫 Rubber, gasket
