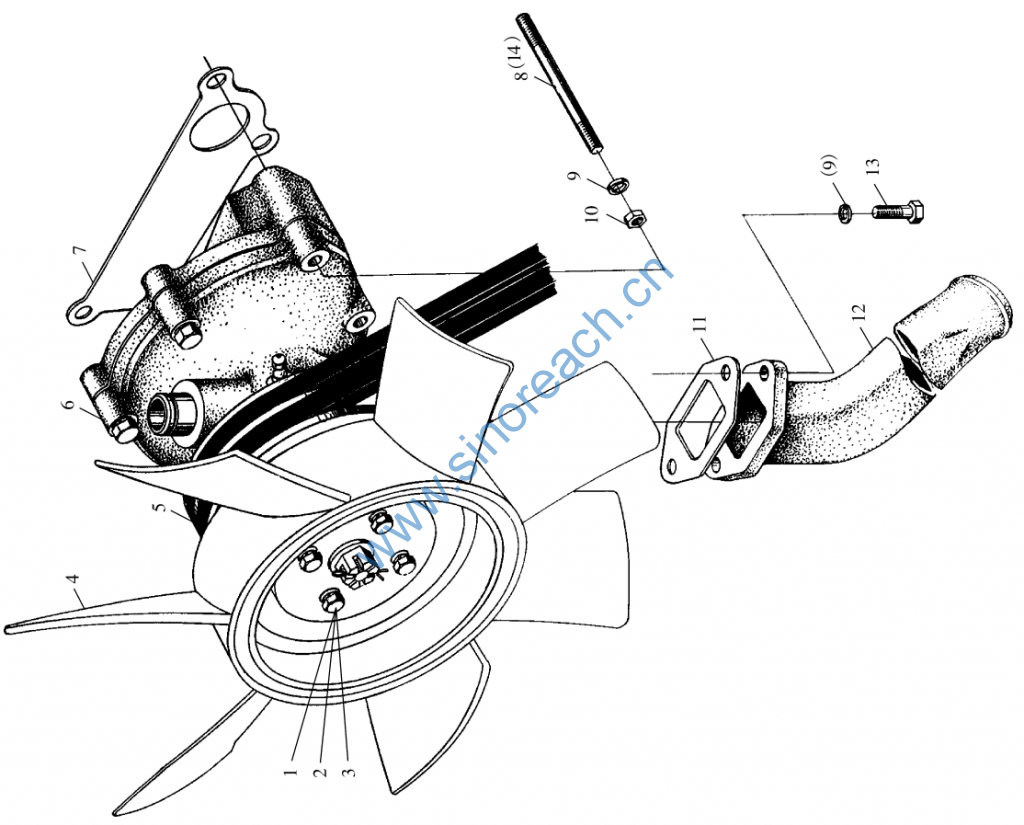

Fan pulley retaining pulley and tensioner assembly YTO

1 GB/T5783-2000 螺栓M8×20-Zn.D BoltM8×25

2 GB/T93-1987 垫圈8 Washer8

3 GB/T95-1985 垫圈8-Zn.D Washer8

4 F-490-42-64-7 SP109132 风扇叶 Cooling fan assy

5 6RTF.520001 SP105704 传动皮带AV1320 Driving pulley

6 YTR4105D51.510000 SP109149 水泵总成 Water pump assy

7 YTR4105G69.510007 水阀接头 Tie-in，water valve

8 GB/T899-1998 螺柱M10×90-Zn.D Stud M10×90

9 GB/T93-1987 垫圈10 Washer10

10 GB/T6170-1986 螺母M10-Zn.D Nut M10

11 6RTF.510002AZ SP111754 水泵进水管垫片 Gasket,water inlet pipe

12 YTR4105.510016 SP111774 水泵进水管 Water inlet pipe

13 GB/T5783-2000 螺栓M10×25-Zn.D Bolt M10×25

14 R010016 SP113846 摇臂座螺柱 Stud, rocker shaft seat

15 YTR4105G52.510007B SP113910 水暖回水接头 Tie-in,backwater4
