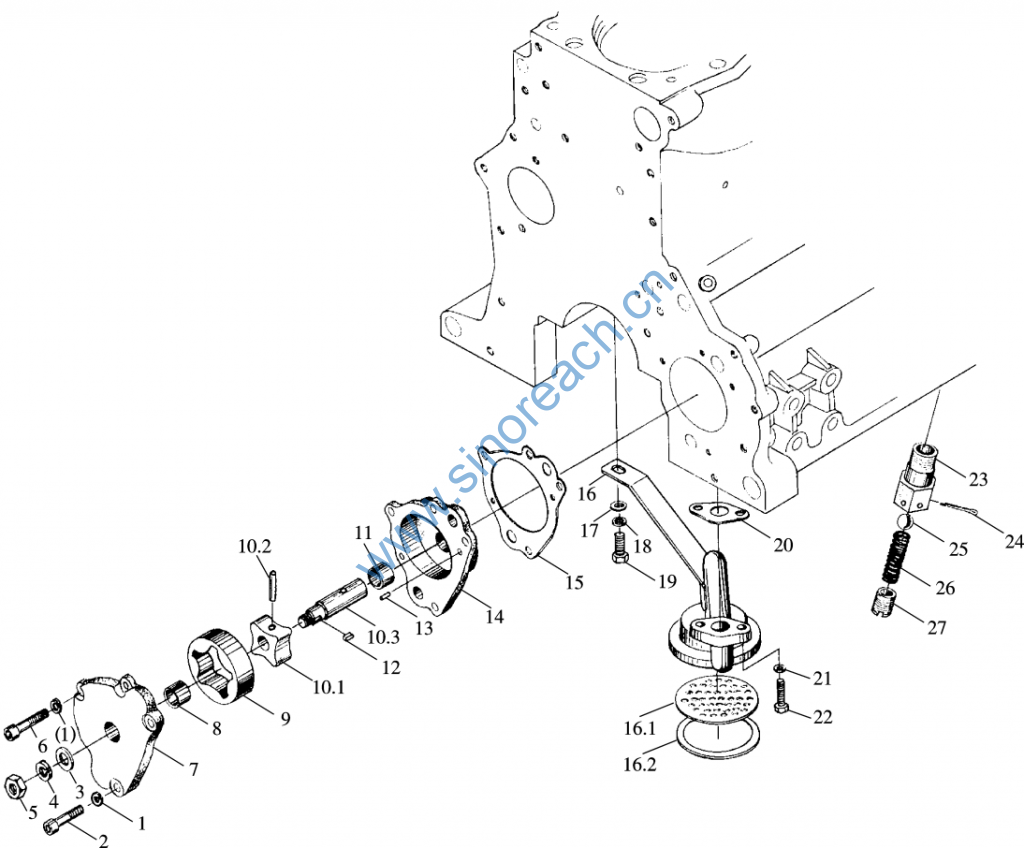

YTR4105.41000 SP110905 SP113909 Oil pump assy YTO

YTR4105.420000 SP115902 SP115902 机油集滤器总成 Oil suction strainer assy

YTR4105.41000 SP110905 改用SP113909 机油泵总成 Oil pump assy

LR412100-2 SP113836 限压阀部件 Pressare washer 10

1 GB/T93-1987 垫圈8 Spring washer 8

2 GB/T70-1985 螺栓 M8×35-Zn.D Bolt M8×35-Zn.D

3 GB/T97.1-1985 垫圈12-Zn.D Spring washer 12-Zn.D

4 GB/T93-1987 垫圈12-Zn.D Spring washer 12-Zn.D

5 BG/T6172-2000 螺母 M12-Zn.D Nut M12-Zn.D

6 BG/T5783-2000 螺栓M10×40-Zn.D Bolt M10×40-Zn.D

7 YTR4105.410002 机油泵盖 Cover,oil pump

8 YTR.410005 机油泵盖衬套 Bush,oil pump cover

9 YTR4105.410003 外转子 Outer rotor

10 YTR4105.410100 机油泵内转子总成 Inner rotor assy,oil pump

10.1 YTR4105.410102 内转子 Inner rotor

10.2 YTR.410103 销钉 Pin

10.3 YTR4105.410101 机油泵轴 Shaft,oil pump

11 YTR.410004 衬套 Bush

12 GB/T1096-1979 键C5×5×10 Flat keyC5×5×10

13 GB/T119-1986 销A5×12 PinA5×12

14 YTR.410001 机油泵体 Case,oil pump

15 YTR.410006 SP111770 机油泵垫片 Gasket,oil pump

16 YTR4105G55.420000 SP113912 集滤器焊接部件 weldment,suction strainer

16.1 6RQ2B.420105 滤网 Strainer

16.2 6RQ2B.420106 滤网压环 Chuck ring,strainer

17 GB/T848-1984 垫圈10-Zn.D Washer10

18 GB/T93-1987 垫圈10 Washer10

19 GB/T5782-2000 螺栓M10×20-Zn.D Bolt M0×20

20 YTR.420001 SP113904 吸油管法兰垫片 Gasket,oil suction pipe flange

21 GB/T93-1987 垫圈8 Washer8

22 GB/T5782-2000 螺栓M8×20-Zn.D Bolt M8×20

23 LR412102-2 限压阀体 Pressure relief valve body

24 GB/T91-2000 销3.2×32 Pin3.2×32

25 GB308-1977 钢球15×6 Ball 15×6

26 R412103 机油泵限压阀弹簧 Spring,pressure relief valve

27 LR412101A 限压阀座 Seat,pressure relief valve
