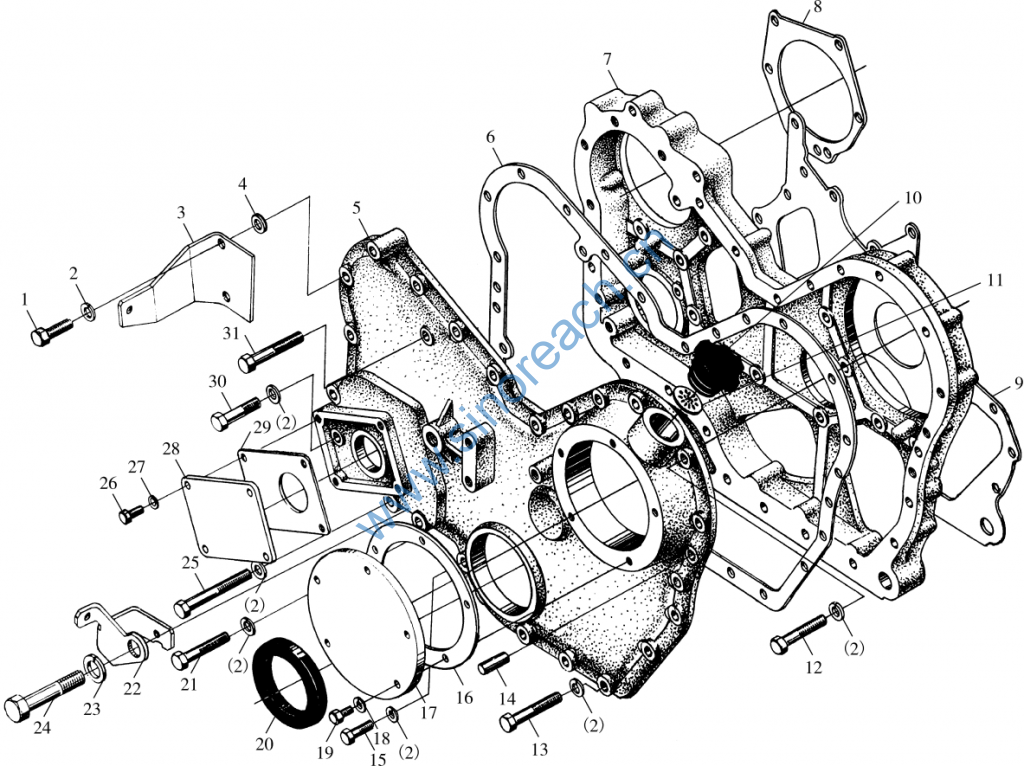

YTO YTR4105T1.080000 Timing Gear Chamber Assy

YTR4105T1.080000 正时齿轮室总成 Timing gear chamber assy

1 GB/T5783-2000 螺栓M10×40-Zn.D Bolt M10×40

2 GB/T93-1987 垫圈10-Zn.D Spring washer 10

3 YTR4105T2.910009 支架Ⅱ Bracket Ⅱ

4 RT060032 液压泵传动齿轮止推板垫片 Thrust plate washer,hydraulic pump gear

5 YTR4105T55.080006 SP113918 正时齿轮室盖 Cover assembly,timing gear chamber

6 YTR4105T1.080003 SP102931 正时齿轮室盖垫片 Gasket,timing gear chamber cover

7 YTR4105T1.080001 SP111780 正时齿轮室 Timing gear chamber

8 R080011 SP111767 压气机垫片 Gasket,air compressor

9 YTR.080002 SP115453 正时齿轮室垫片 Gasket,timing gear chamber

10 R080015 SP113880 加油口盖 Cover,refill opening

11 R080008 SP113879 滤网 Strainer

12 GB/T5782-2000 螺栓M10×65-Zn.D Bolt M10×65

13 GB/T5782-2000 螺栓M10×70-Zn.D Bolt M10×70-Zn.D

14 GB/T119.2-2000 销10×20 Pin 10×20

15 GB/T5782-2000 螺栓M10×30-Zn.D Bolt M10×30

16 R080005 SP113878 检查口盖垫片 Gasket,observation port cover

17 R080004 SP113877 喷油泵正时检查口盖 Observation port cover,injection pump timing gear

18 GB/T93-1987 垫圈8-Zn.D Spring washer 8

19 GB/T5783-2000 螺栓M8×20-Zn.D Bolt M8×20

20 LR080150 SP100509 前油封65×90×12 Oil sealing 65×90×12

21 GB/T5782-2000 螺栓M10×60-Zn.D Bolt M10×60

22 YTR4105T2.910008 支架Ⅰ Bracket Ⅰ

23 GB/T93-1987 垫圈16-Zn.D Spring washer 16

24 GB/T5783-2000 螺栓M16×85-Zn.D Bolt M16×85

25 GB/T5782-2000 螺栓M10×90-Zn.D Bolt M10×90

26 GB/T5783-86 螺栓M8×18-Zn.D Bolt M8×18

27 GB/T93-1987 垫圈8-Zn.D Spring washer 8

28 RT060028 SP113893 盖板 Cover plate

29 LRT060029 SP113838 液压泵垫片 Gasket,hydraulic pump

30 GB/T5782-2000 螺栓M10×50-Zn.D Bolt M10×50

31 GB/T5782-2000 螺栓M10×70-Zn.D Bolt M10×70
