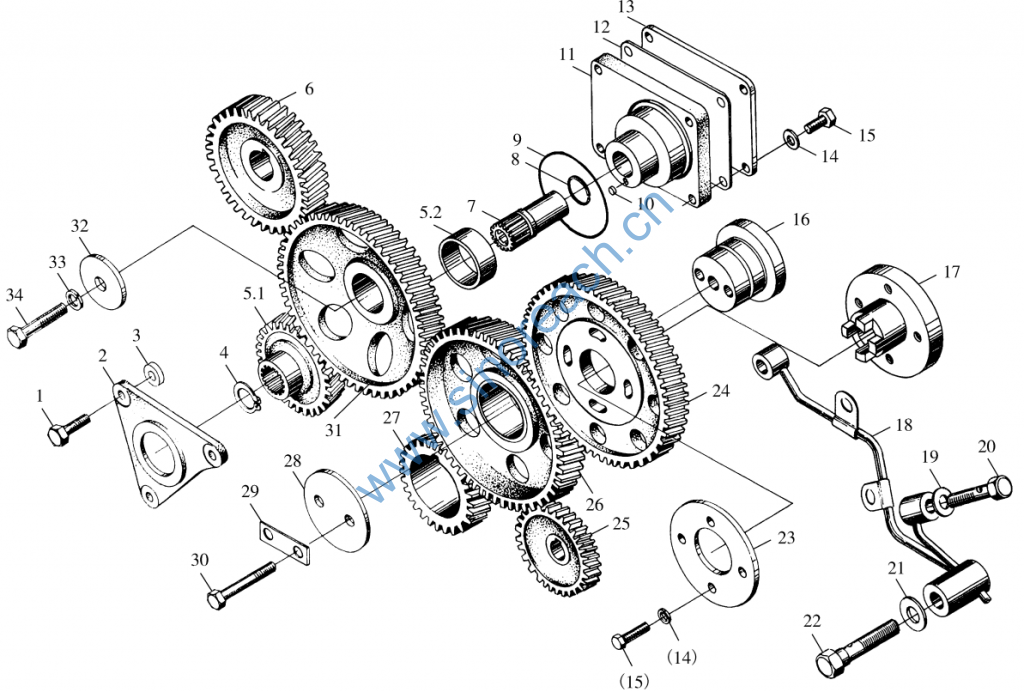

YTO Gear Train Assy

YTR3105G2.060000 齿轮系总成 Gear train assy

1 GB/T5782-2000 螺栓M10×25-Zn.D Bolt M10×25

2 RT.060026-1A 液压泵转动齿轮止推板 Thrust plate,hydraulic pump gear

3 RT060032 液压泵转动齿轮止推板垫片 Thrust plate washer,hydraulic pump gear

4 GB/T894.1-1986 挡圈25 Retaining ring 25

5 RT.061100A SP119846 SP119846 液压泵传动齿轮部件 Driving gear assembly,hydraulic pump

5.1 YTR.061101 SP119848 SP119848 液压泵传动齿轮 Driving gear ,hydraulic pump

5.2 RT061102 SP115903 SP115903 液压泵传动齿轮衬套 Driving gear bush,hydraulic pump

6 R060021A SP109124 空压机齿轮 Gear，air compressor

7 RT060025A 液压泵传动花键套 Driving splind sleeve,hydraulic pump

8 GB/T895.2-1986 挡圈25 Retaining ring 25

9 RT060019-1 密封圈 Sealing ring

10 RT060027 堵塞 Plug

11 LRT.060024-3 液压泵传动齿轮轴 Driving gear shaft,hydraulic pump

12 LRT060029 SP113838 液压泵垫片 Gasket,hydraulic pump

13 RT060028 SP113893 盖板 Cap board

14 GB/T93-1987 垫圈8 Spring washer 8

15 GB/T5782-2000 螺栓M8×30-Zn.D Bolt M8×30

16 R060009 SP113875 惰齿轮轴 Idle gear shaft

17 YTR4105T1.060006A SP113914 喷油泵传动齿轮轮毂 Hub,injection pump driving  gear

18 YTR3105G1.060200 SP109141 正时齿轮润滑油管部件 Oil pipe assemboy,timing gear

19 R320002 SP113882 溢油管接头螺钉垫圈 Washer,overflow fuel pipe adaptor screw

20 RT060022 SP113890 润滑油道螺钉 Screw,lubrication oil passages

21 54.02.453 SP115128 转向管接头垫圈 Washer,elbow adaptor

22 YTR4105T1.060012 SP113915 主供油接头螺钉 Joint bolt,main oil supply

23 YTR.060007 SP113902 喷油泵齿轮压板 Clamp plate,injection pump gear

24 YTR.060005 SP109138 喷油泵齿轮 Jnjection pump gear

25 YTR.060002 SP115207 机油泵传动齿轮 Driving gear,oil pump

26 YTR.060100 SP109140 改用SP126733 惰齿轮部件 Idle gear assembly

27 YTR.060001 SP113901 曲轴齿轮 Crankshaft gear

28 R060011 SP113876 惰齿轮止推板 Thrust plate,idle gear

29 GB/T93-1987 垫圈10 Spring washer 10

30 GB/T5782-2000 螺栓M10×65-Zn.D Bolt M10×65

31 YTR.060003 SP109139 凸轮轴齿轮 Camshaft gear

32 R060004 SP113874 凸轮轴齿轮挡圈 Retaining ring ,camshaft gear

33 GB/T93-1987 垫圈12 Spring washer 12

34 GB/T5782-2000 螺栓M12×55-Zn.D Bolt M12×55
