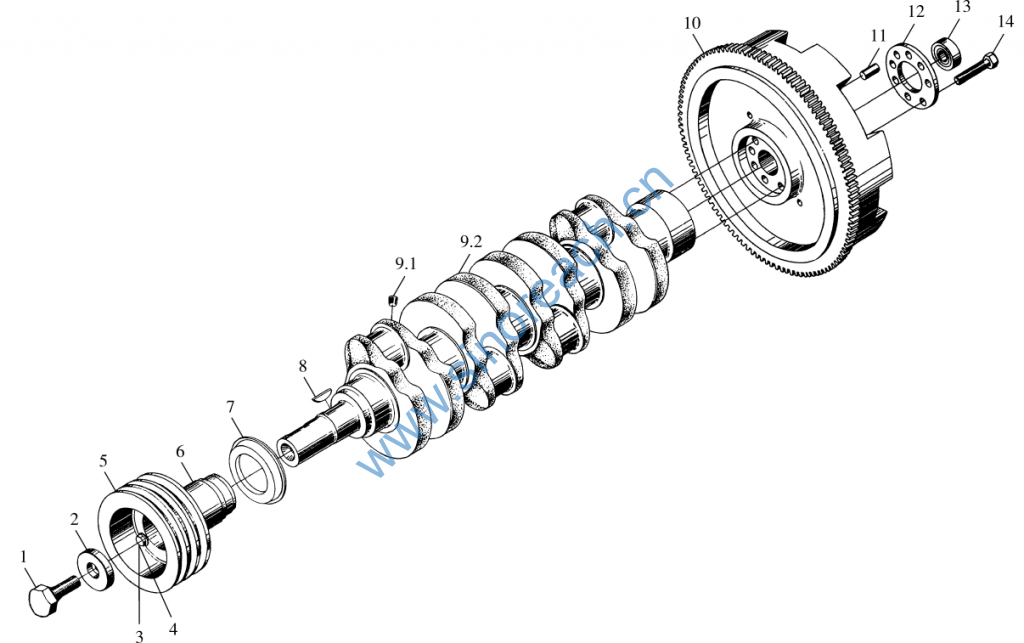

YTO Crankshaft and Flywheel Assy

YTR4105T1.040000 曲轴飞轮总成 Crankshaft and flywheel assy

1 GB/T5786-2000 8.8级螺栓M16×1.5×45 Bolt  M16×1.5×45

2 LR040007 SP113834 曲轴摇爪垫板 Plate,Crankshaft jaw

3 GB/T5782-2000 螺栓M10×25 Bolt M10×25

4 GB/T93-1987 垫圈10 Washer 10

5 4RT1.040003-1 SP115204 曲轴皮带轮 Crank shaft pulley

6 R040004(Ⅰ) 曲轴皮带轮轮毂 Wheel boss,crank shaft pulley

7 R040012 SP113873 皮带轮防尘罩 Dustproof cover,pulley

8 GB/T1099-1979 MW101240 键10×38 Semi-circular key 10×38

9 YTR4105.040300 曲轴合件 Crankshaft assembly

9.1 LR020109 SP113831 螺塞NPT1/8 Screw plug NPT1/8

9.2 YTR4105.040301 SP111773 曲轴 Crankshaft

10 4RG1.040100-1 SP111746 飞轮部件 Flywheel assembly

11 GB/T119-1976 销14ga×30 Pin 14ga×30

12 R040005 SP113872 飞轮螺钉垫板 Washer,flywheel bolt

13 GB/T276-1994 轴承6204-Z Bearing 6204-Z

14 LR040021 SP113835 飞轮螺钉 Flywheel bolt
