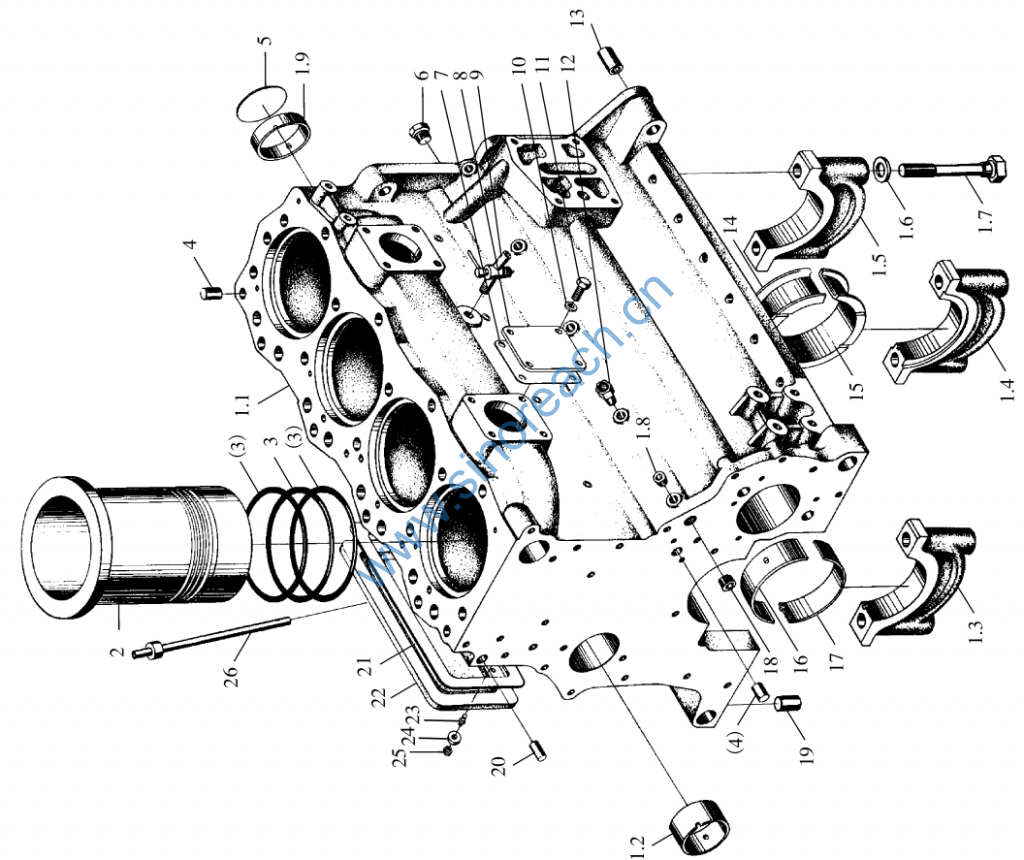

YTO Cylinder Block Assy

YTR4105T1.020000-1 机体总成 Cylinder block assy

1 YTR4105T.020100 机体机械加工部件 Cylinder block mechancal assembly

1.1 YTR4105T.020101 SP107095 机体 Cylinder block

1.2 R020106 SP107093 凸轮轴前衬套 Front bush,camshaft

1.3 LR020102 SP111756 厂家不供散件 主轴承盖 Main bearing cap

1.4 LR020103 SP111757 厂家不供散件 定位主轴承盖 Cap,locating main bearing

1.5 LR020111 SP111758 厂家不供散件 后主轴承盖 Cap,rear main bearing

1.6 R020105 SP111764 主轴承螺钉垫圈 Washer,main bearing blot

1.7 R020104 SP111763 主轴承螺钉 Blot,main bearing

1.8 YTQ021.1-1987 SP113899 改用SP128291 螺塞NPT1/8 Plug NPT1/8

1.9 R020107 SP109111 凸轮轴衬套 Bush,camshaft

2 RAD.020001 SP115455 气缸套 Cylinder liner

3 RA020003 SP113885 气缸套第二、三槽密封圈 2nd and 3rd sealing ring,cylinder liner

4 R020021 SP113869 机体顶面定位销 Dowel,cylinder block top face

5 YTQ031.1-1991 SP115460 堵塞60 Plug 60

6 YTQ021.1-1986 SP113898 螺塞NPT3/8 Plug NPT3/8

7 R020017 SP111762 供水接头垫片 Gasket,feeding water adaptor

8 LR020200 SP111759 供水接头座合件 Feeding water adaptor seat

9 1305C1-010 SP111741 水箱放水阀总成 Water valve assy

10 GB/T93-1987 垫圈10 Washer10

11 GB/T5783-2000 螺栓M10×25-Zn.D Bolt M10×25

12 6RQ2.020031 SP113818 油压传感器接头 Connector,oil pressure sensor

13 6RQ2.020015 机体后面空心定位销 Hollow dowel,cylinder rear face

14 LR020043 SP109121(一副） 主轴承止推瓦（上） Thrust shell(top),main bearing

15 LR020044 SP115468 SP115468 主轴承止推瓦（下） Thrust shell(bottom),main bearing

16 LR020041 SP109120（一副） 主轴承上瓦 Bttom shell,main bearing

17 LR020042 SP115466 SP115466 主轴承下瓦 Top shell,main bearing

18 LR010209 SP113829 螺塞NPT3/8 Screw plug NPT3/8

19 R020027 机体底面定位销 Dowel,cylinder block bottom face

20 R020023 SP113870 机体前面上定位销 Dowel,cylinder block upper front face

21 4R020009 SP113802 推杆室盖垫片 Gasket,push rod chamber cover

22 4R020008A SP113801 前推杆室盖 Push rod chamber cover

23 R020011-FE SP113868 推杆室盖螺柱 Stud，push  rod chamber cover

24 R010017 SP113848 密封垫圈 Washer 10

25 GB923-76-Zn.D 螺母10 Nut  10

26 LR020300 SP113833 曲轴箱通风回油管部件 Ventilation and drain pipe assembly,crankcase
