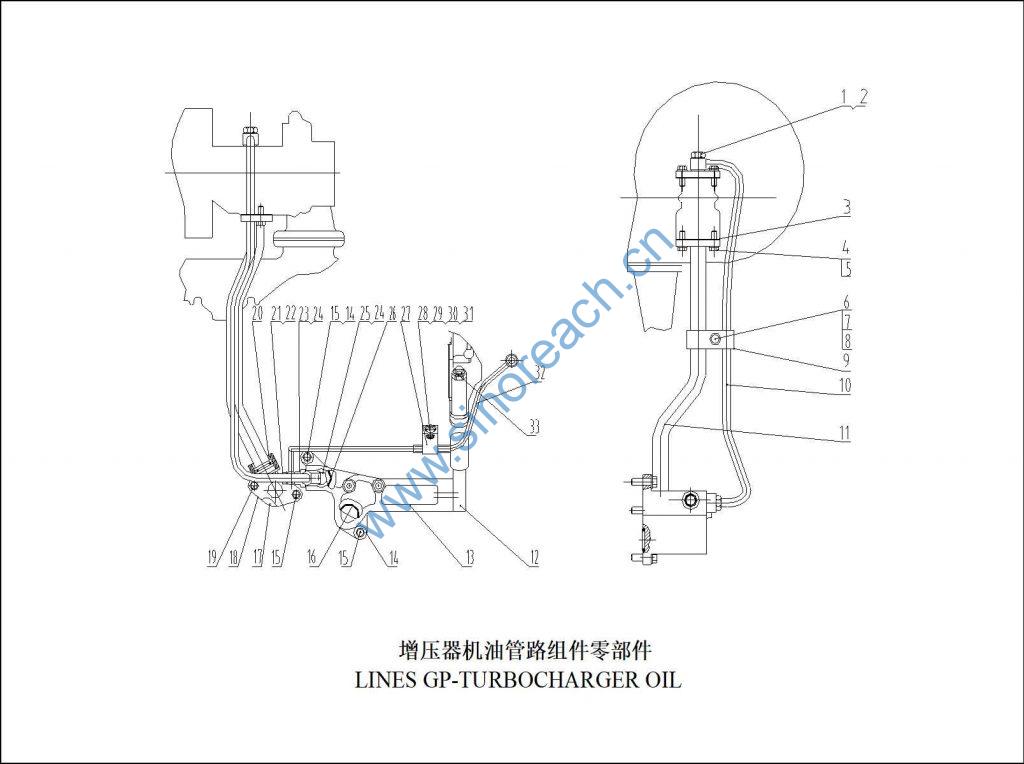

增压器机油管路组件 LINES GP-TURBOCHARGER OIL C19BZ-19BZ201+B

1 Q/SC642.3-1-M161.532:铰接螺栓 JOINT BOLT B00002227
2 复合式密封硬垫圈 PLUG-PIPE B00001584(Q/SC1294-16)
3 回油管垫片 GASKET C19BL-1P1255+B
4 GB/T5783-M1030:六角头螺栓 BOLT B00000509 5 GB/T97.1-10-300HV-Y:平垫圈 WASHER B00001277 6 GB/T5783-M820:六角头螺栓 BOLT B00000631
7 GB/T6170-M8-Y:六角螺母 NUT B00000793
8 GB/T97.1-8-200HV-Y:平垫圈 WASHER B00001299
9 夹头 CLIP C19BL-6N6033+A
10 增压器进油管焊接部件 TUBE AS. C19BB-19BB022+A
11 增压器回油管焊接部件 TUBE AS. C19BB-19BB013+A
12 喷油泵托架 SUPPORT C19BL-19BL202+A
13 喷油泵支架 SUPPORT C19BL-19BL201B+A
14 平垫圈 WASHER U382A-5M2894+A
15 六角头螺栓 BOLT U311A-1A2029+A
16 O型橡胶密封圈 SEAL-O-RING U641A-8M5248+A
17 垫片 GASKET C02BL-4M6480+B
18 弯管接头 ELBOW C19BL-8N1149+A
19 六角头螺栓 BOLT U311A-0L2070+A
20 O型橡胶密封圈 SEAL-O-RING U641A-9M4849+A
21 Q/SC1294-10:复合垫圈 WASHER B00001545
22 Q/SC642.1-01-M101:铰接螺塞 PLUG-PIPE B00002177 23 机油过渡接头 TIE-IN C19BL-19BL205+A 24 O型橡胶密封圈 SEAL-O-RING U641A-3K0360+A 25 37°扩口直接头 CONNECTOR U511B-8M0505+A 26 O型橡胶密封圈 SEAL-O-RING U641A-8M5253+A 27 机油管夹头 COLLET C19BL-19BL206+A 28 GB/T5783-M516:六角头螺栓 BOLT B00000589
29 GB/T6170-M5-Y:六角螺母 NUT B00000787
30 GB/T93-5:弹簧垫圈 WASHER B00001251
31 Q/SC596-512:冲制光垫圈 WASHER B00001783 32 喷油泵机油进油管部件 FUEL INLET TUBE, FUEL INJECTION PUMP C19BB-19BB204+A 33 Q/SC622-M1080-10.9:六角法兰面螺栓 BOLT B00002031
