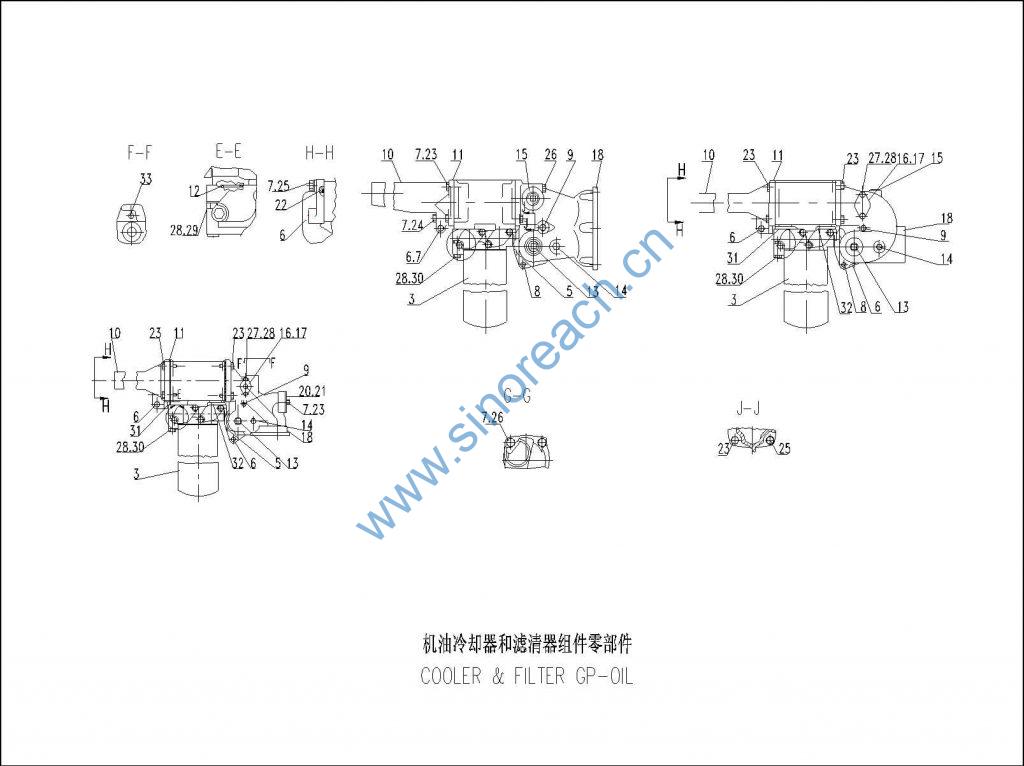

机油冷却器和滤清器组件 COOLER&FILTER GP-OIL C18AZ-2W6953+A

*1 机油冷却器芯子机加工部件 CORE AS．-OIL COOLER C18AB-7N0165+A
*2 机油滤清器座装配部件 BASE GP-FILTER (OIL) C18AB-8N4457+A
3 机油滤清器部件 FILTER AS-OIL C18AB-2P4004+A
5 垫片 GASKET C18AL-2W4561+B
6 六角头螺栓 BOLT U311A-3B1915+A
7 硬垫片 WASHER-HARD U382A-5M2894+A
9 六角头螺栓 BOLT U311A-1D4540+A
10 水泵出水管 PIPE-PUMP OUTLET C18AL-2W5240+A
11 垫片 GASKET C18AL-5S6051+B
12 O型密封圈 SEAL-O RING U641A-8M4432+A
13 内方头锥管螺塞 PLUG-PIPE (SQUARE COUNTERSUNK) U561C-1B5174+A
14 六角锥管螺塞 PLUG-PIPE U562A-3J5390+A
15 内方头锥管螺塞 PLUG-PIPE (SQUARE COUNTERSUNK) U561C-3B0551+A
16 盖板 COVER C18AL-4N3840+B
17 垫片 WASHER C18AL-4N3841+B
18 端盖 BONNET C18AL-6N0122+A
23 六角头螺栓 BOLT U311A-1B9575+A
U311A-1B2790+A
U311A-0S1618+A
U311A-0S1617+A
25 十二角头螺栓 BOLT-12 POINT HEAD C18AL-1T0765+A
26 六角头螺栓 BOLT U311A-0L2070+A
28 硬垫片 WASHER-HARD U382A-9M1974+A
29 六角头螺栓 BOLT U311A-1A2029+A
30 六角头螺栓 BOLT U311A-0S1591+A
(34) 壳体 SHELL-CORE C18AL-7S6394+A
(35) 管束部件 BUNDLE AS．-TUBE C18AB-18AB005+A
(36) 机油滤清器座 BASE AS．-OIL FILTER C18AL-9Y7149+A
(37) 六角头螺栓 BOLT U311A-0S1588+A
(39) 六角头螺栓 BOLT U311A-0L1352+A
(43) 盖 COVER C18AL-9Y6859+A
(44) 垫片 GASKET C18AL-9Y6860+A
(45) 弹簧 SPRING C18AL-8M3182+A
(46) 阀体 PLUNGER-OIL COOLER PELIEF VALVE C18AL-9M0853+A
(47) 螺套内接头 TIE-IN C18AL-2P2537+A
