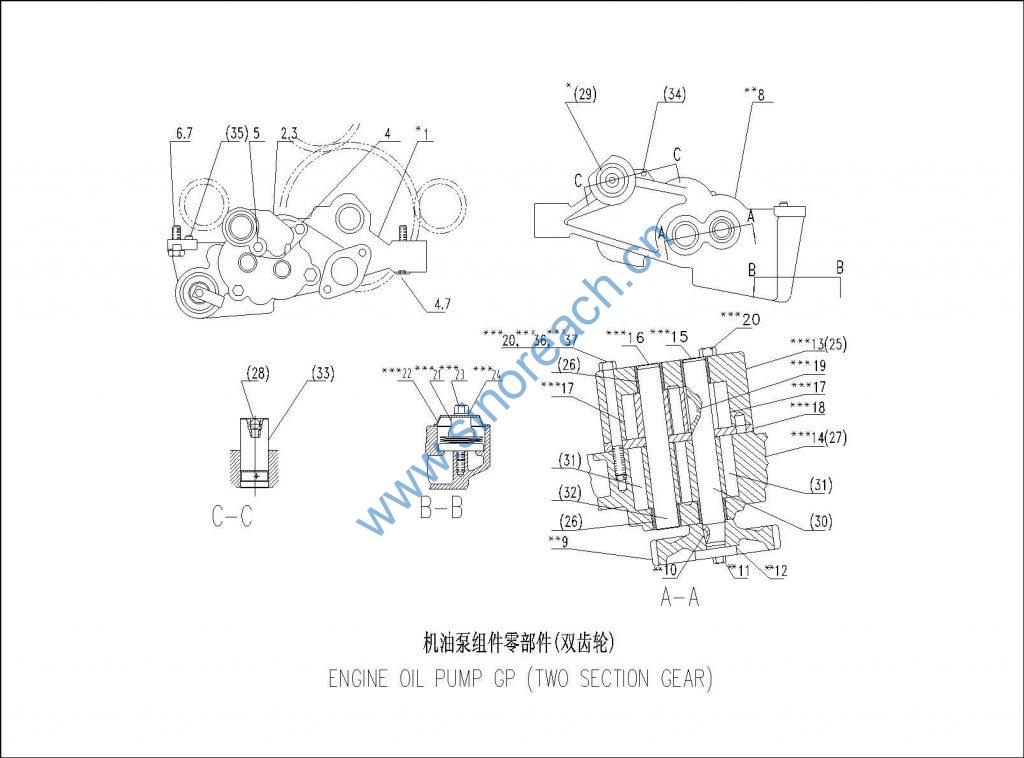

机油泵组件 PUMP GP-ENGINE OIL C15AZ-2P1784+A

*1 机油泵部件 PUMP GP-ENGINE OIL (TWO SECTION GEAR) C15AB-6N2642+A
2 吸油管 ELBOW-SCAVENGE LINE C15AL-4N5353+A
3 垫片 GASKET C15AL-2P8746+B
4 六角头螺栓 BOLT U311A-0S1590+A
5 六角头螺栓 BOLT U311A-0S1619+A
6 六角头螺栓 BOLT U311A-3B1915+A
7 平垫圈 WASHER U382A-5M2894+A
**8 机油泵试验部件 ENGINE OIL PUMP AS. C15AB-4W2448+A
**9 驱动齿轮 GEAR-OIL PUMP DRIVE C15AL-7W0507+A
**10 半圆键 KEY-WOODRUFF-10 U351A-8M5599+A
**11 六角头螺栓 BOLT U311A-0S1590+A
**12 垫圈 WASHER-HARD U382A-1P7346+A
***13 吸油泵体部件 BODY ASSEMBLY-SCAVENGE PUMP C15AB-4W2321+A
***14 泵体部件 BODY AS．-OIL PUMP C15AB-4W2322+A
***15 主动轴部件 DRIVE SHAFT AS. C15AB-2P6245+A
***16 从动轴部件 SHAFT ASSEMBLY-OIL PUMP C15AB-8S0493+A
***17 吸油泵齿轮 GEAR-OIL PUMP(GEAR-SCAVENGE PUMP) C15AL-2P2546+A
***18 机油泵隔板 SPACER-OIL PUM C15AL-2P1781+A
***19 半圆键 KEY-WOODRUFF-10 U351A-1B8709+A
**20 GB/T5782-M1090:六角头螺栓 BOLT B00000412
***21 卸压阀部件 PRESSURE RELIEF VALVE AS. C15AB-4N8385+A
***22 卸压阀盖 COVER-OIL PUMP BYPASS VALVE C15AL-4N3732+A
**23 GB/T5782-M850:六角头螺栓 BOLT B00000485
***24 GB/T97.1-8-200HV-Y:垫圈 WASHER-HARD B00001299
(25) 吸油泵体 BODY-SCAVENGE PUMP C15AL-4N4054+A
(26) 轴套 BEARING-SLEEVE C15AL-8S6511+A
(27) 泵体 BODY-OIL PUMP C15AL-8N8635+A
(28) GB/T308-10:钢球 STEEL BALL B00000273
*(29) 惰齿轮轴部件 SHAFT ASSEMBLY-OIL PUMP IDLER GEAR C15AB-2P1170+A
(30) 主动轴 DRIVE SHAFT C15AL-2P0691+A
(31) 机油泵齿轮 GEAR-OIL PUMP C15AL-2P2545+A
(32) 从动轴 SHAFT-OIL PUMP C15AL-8S0490+A
(33) 惰齿轮轴 SHAFT-OIL PUMP IDLER GEAR C15AL-2P1169+A
(34) GB/T308-8:钢球 STEEL BALL B00000284
(35) 圆柱销 DOWEL U362A-1F1006+A
***36 GB/T97.1-10-200HV-Y:垫圈 WASHER B00001275
***37 GB/T93-10:弹簧垫圈 SPRING WASHER B00001237
(38) 定位套 RETAINER C15AL-15AL001+A
