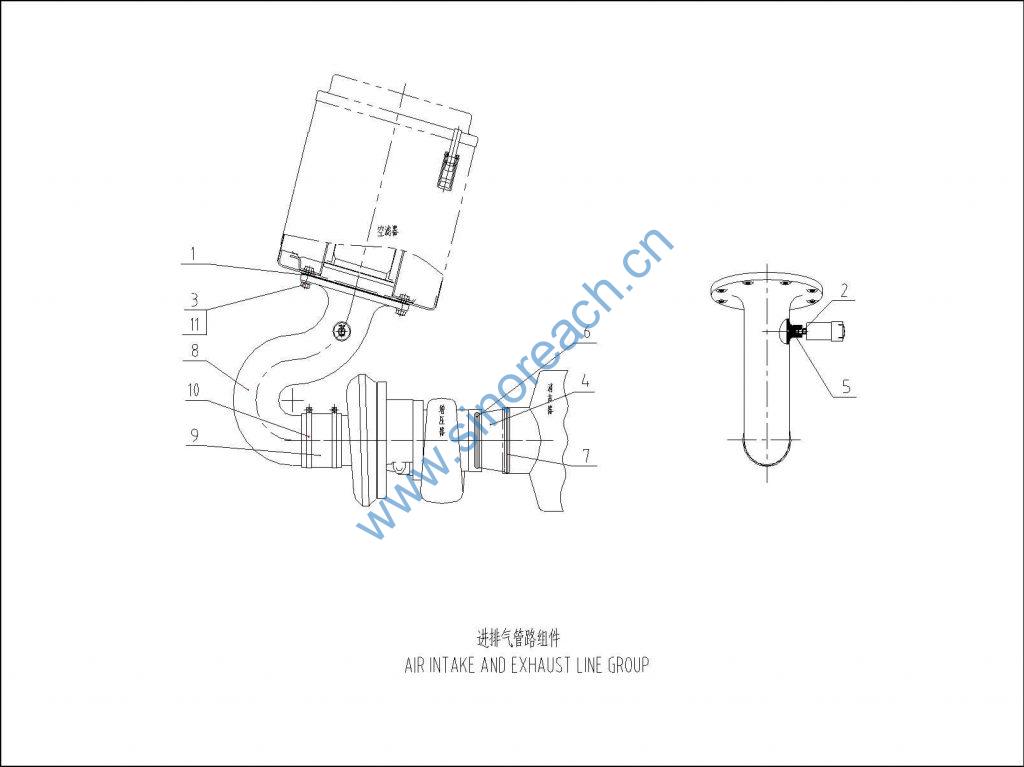

进排气管路组件 AIR INTAKE AND EXHAUST LINE GROUP C12BZ-12BZ021+A

1 垫片 GASKET C14AL-9S1274+B
2 螺纹接口 THREADED INTERFACE C14AL-0A2926+A
3 锁紧螺母 LOCKNUT C13BZ-M2N2766+A
4 涡轮出口接管 COUPLING-TURBOCHARGER EXHAUST C12BL-9L5836+B
5 小滤芯 FILTER ELEMENT C12BL-7M1674+A
6 金属密封环 SEAL RING-METAL C12BL-5L8855+A
7 金属密封环 SEAL RING-METAL C12BL-5L8854+A
8 空滤器出口弯管 PIPE AS.-AIR TRANSFER C12BL-12BL057+B
9 Q/SC1372-87*125:橡胶软管 HOSE B00001631
10 Q/SC1302-91~114:喉箍 HOOP B00001586
11 GB/T97.1-10-200HV-Y:平垫圈 WASHER B00001275
