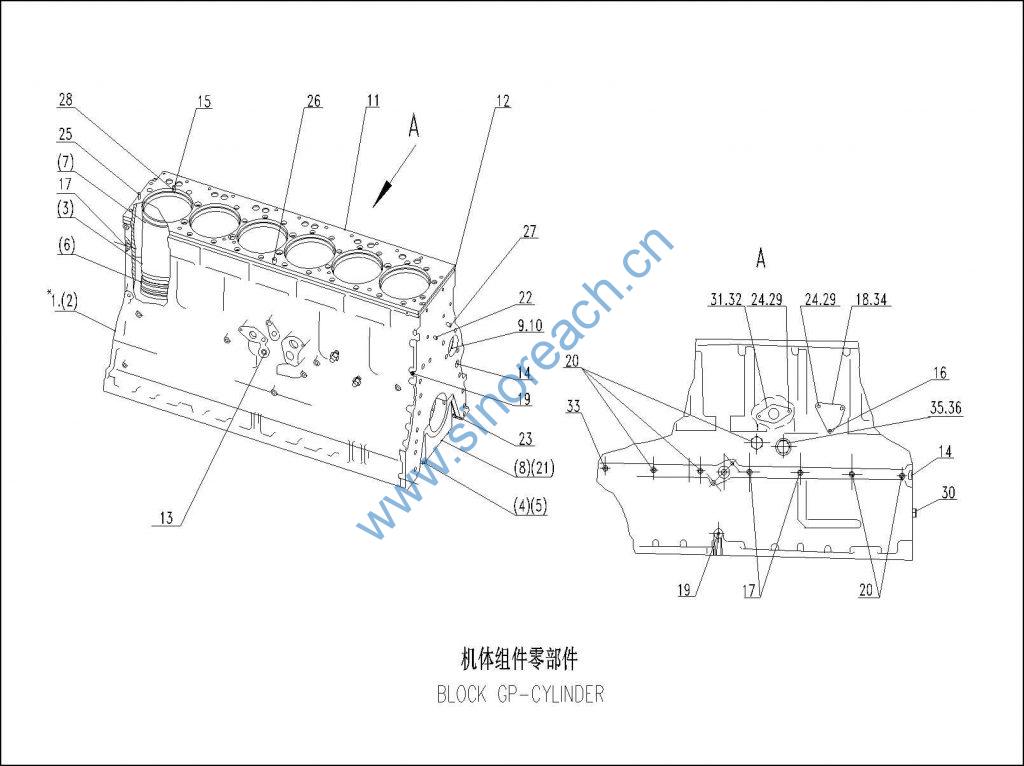

C02AZ-8N5286+B BLOCK GP-CYLINDER

1 机体装配部件 BLOCK AS.-CYLINDER C02AB-7N6550+C 1
(2) 机体() BLOCK AS-CYLINDER C02AL-4P0623+D 1
(3) 气缸套 LINER-CYLINDER C02AL-1105800+A 6
(4) 主轴承盖 CAP-CRANKSHAFT BEARING C02AL-6N8001+B 6
(5) 推力主轴承盖 CAP-CRANKSHAFT BEARING C02AL-6N8002+B 1
(6) O形密封圈 SEAL-O-RING C02AL-5S6670+C(117.14.39) 18 (7) 密封带 BAND-FILLER C02AL-2W6134+A 6 (8) 主轴承盖螺栓 BOLT C02AL-7S3224+A 14 9 凸轮轴轴套 BEARING C02AL-7M4046+A 4 10 凸轮轴前轴套 BEARING C02AL-8N4110+A 1 11 机体顶板 PLATE C02AL-7N7998+A 1 12 机体顶板垫片 GASKET-PLATE C02AL-7W7546+B 1 13 碗形闷头 PLUG C02AL-4B5387+A 1 14 碗形闷头 PLUG 3B0623+A 1 15 空心圆柱销 DOWEL C02AL-1S9540+A(9.36830.2) 1
17 内方锥管螺塞 PLUG-PIPE(SQUARE COUNTERSUNK) U561C-2B0858+A 3
19 六角锥管螺塞 PLUG-PIPE 5M6214(1/8-27) 1
20 六角锥管螺塞 PLUG-PIPE U562A-5M6213+A 4
(21) 硬垫圈 WASHER U382A-2S5658+A(17293) 14
22 双头螺栓 STUD U321A-5S8462+A 1
23 GB/T308-9.525:钢球 STEEL SPHERE B00000285 1
25 圆柱销 PIN U362A-8K1207+A(9.36832.00) 2 26 圆柱销 PIN U362A-5B7652+A(15.71615.75) 2
27 圆柱销 PIN U362A-8B6349+A(15.71835.00) 2 28 O型密封圈 SEAL U641A-3S5496+A(9.534.3) 1
33 内方锥管螺塞 PLUG-PIPE(HEX COUNTERSUNK) U561B-7H3171+A 1
35 外六角螺塞 PLUG-DRAIN U564C-8M9307+A 1
36 铜垫圈 WASHER U386A-6F7062+A 1
