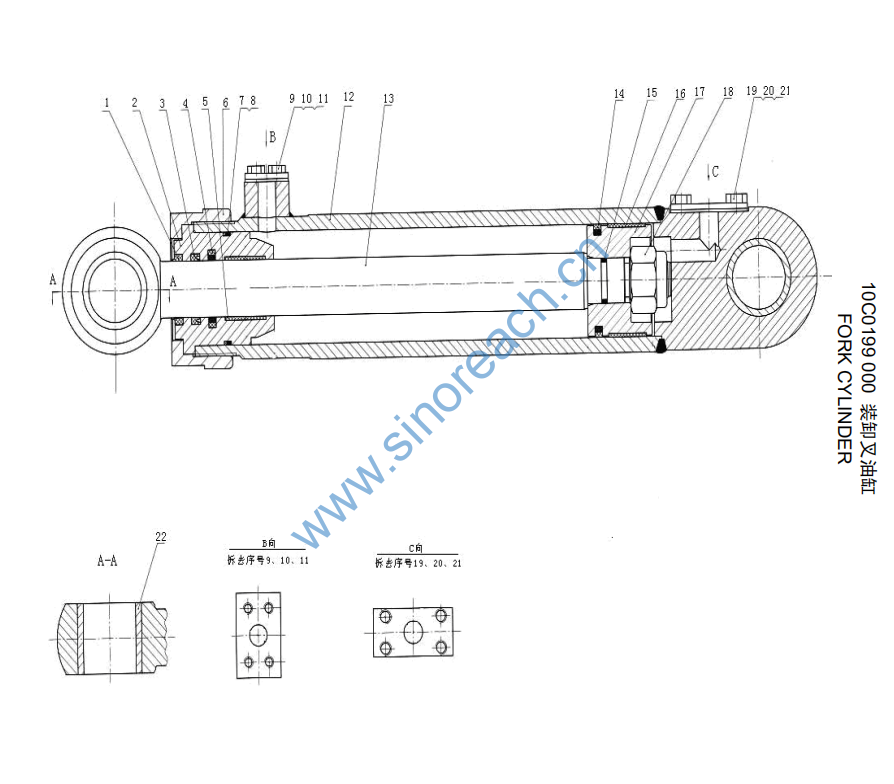

ZL30E 10C0199 000 装卸叉油缸 FORK CYLINDER

1 13B0123 000 防尘圈 DUST RING 2
2 55A1047 000 导向套 GUIDE SLEEVE 2
3 13B0125 000 唇形密封圈 LIP TYPE SEAL 2
4 34C0029 000 斯特封 SEAL 2
5 80A0109 000 支承环 SUPPORT RING 2
6 53A0190 000 缸盖 CYLINDER HEAD 2
7 12B0117 000 O 形圈 O-RING 2
8 07B0053 000 挡圈 SNAP RING 2
9 00B0075 000 螺栓 BOLT 4
10 10A0395 000 垫 SHIM 2
11 11A0289 000 盖 COVER 2
12 13D0198 001 缸体 CYLINDER BODY 2
13 61A0420 001 活塞杆 PISTON ROD 2
14 34C0031 000 格来圈 SEAL RING 2
15 12B0271 000 O 形圈 O-RING 2
16 80A0087 000 支承环 SUPPORT RING 2
17 50A0035 000 活塞 PISTON 2
18 03B0197 001 锁紧螺母 LOCKNUT 2
19 00B0005 000 螺栓 BOLT 4
20 81A0003 000 垫 SHIM 2
21 11A0003 000 盖 COVER 2
22 55A0462 000 轴套 BUSHING 4
