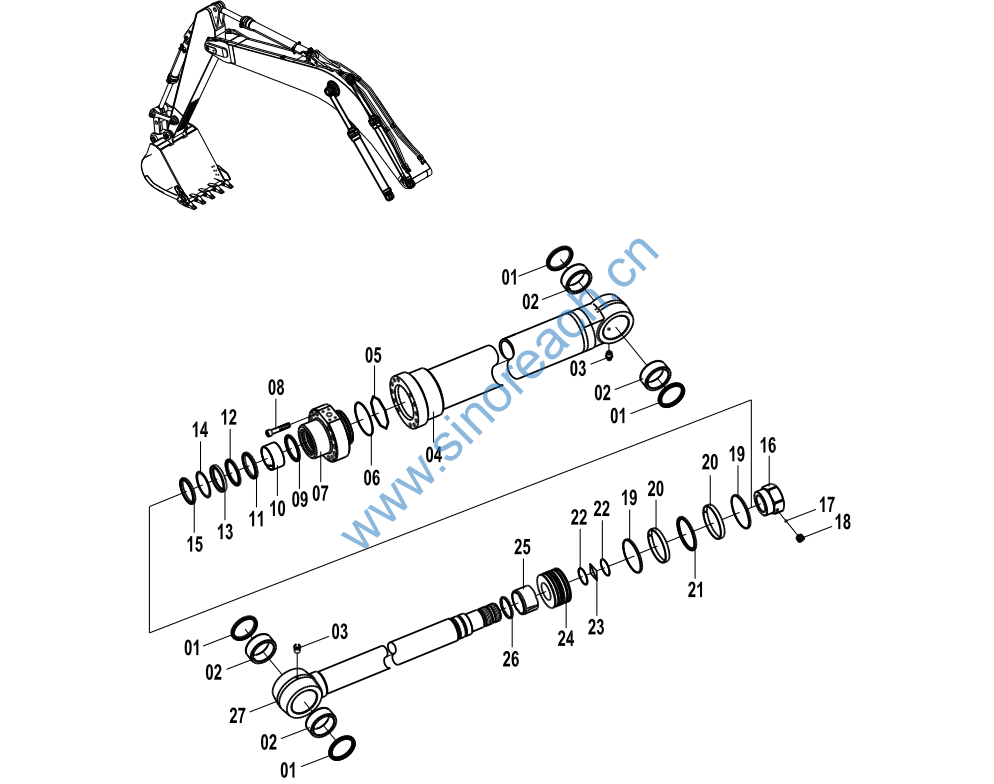

CLG922D 10C0261 001 动臂油缸（右） BOOM CYLINDER AS-RH

00 88A0905 000 密封包 SEAL KIT 1
01 12B1300 000 防尘圈 DUST RING 4
02 55A3410 000 轴套 BUSHING 4
03 10B0014 000 油杯 GREASE FITTING 2
04 13D0581 缸体(右) CYLINDER BODY-RH 1
05 12B0735 000 O 形圈 O-RING 1
06 07B0429 000 挡圈 BACKUP RING 1
07 53A1127 000 端盖 BUSHING 1
08 04B0717 000 内六角螺钉 HEX SCREW 12
09 07B0192 000 钢丝挡圈 SNAP RING 1
10 55A1338 000 滑动轴承 SLIDE BEARING 1
11 55A3411 000 缓冲环 BUFFERING RING 1
12 12B1524 000 密封圈 SEAL RING 1
13 07B0428 000 挡圈 BACKUP RING 1
14 13B0812 000 防尘圈 DUST RING 1
15 11B0208 000 挡圈 BACKUP RING 1
16 03B1273 000 螺母 NUT 1
17 20B0159 000 钢球 STEEL BALL 1
18 04B0718 000 内六角螺钉 HEX SCREW 1
19 83A0471 000 导向环 RING 2
20 83A0470 000 纳污环 WIPER RING 2
21 12B1525 000 密封圈 SEAL RING 1
22 07B0430 000 挡圈 BACKUP RING 2
23 12B0729 000 O 形圈 O-RING 1
24 50A0419 000 活塞 PISTON 1
25 55A3409 000 缓冲套 CUSHION COLLAR 1
26 55A3412 000 缓冲环 BUFFERING RING 1
27 14D0180 000 活塞杆 PISTON ROD 1
