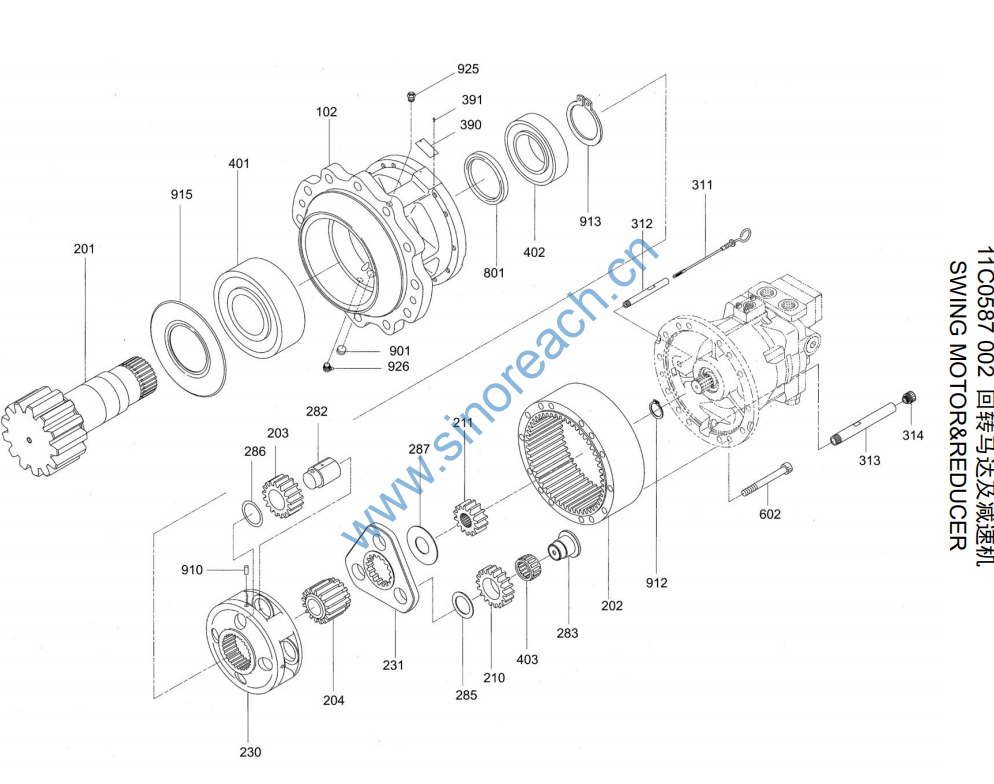

CLG922D 11C0587 002 回转马达及减速机 SWING MOTOR&REDUCER

313 35A1541 000 注油管 FILLER TUBE 1
314 53A1128 000 封盖 CAP 1
351 50A0095 000 活塞 PISTON 2
355 75A0157 000 弹簧 SPRING 2
390 74A1914 000 铭牌 NAMEPLATE 2
391 08B0127 000 销 PIN 2
400.2 07B0250 支承环 RING,BACK-UP 4
400 12C1032 001 防反转阀 S.R.VALVE AS 2
400.1 12B0965 O 形密封圈 O-RING 4
401 04B0311 000 螺丝钉 SCREW 4
402 20B0215 000 调心滚子轴承 ROLLER BERAING 1
443 22B0008 000 轴承 BEARING 1
444 22B0009 000 轴承 BEARING 1
469 05A0116 000 螺塞 PLUG 2
472 12B0961 000 O 形圈 O-RING 1
488 12B0548 000 O 形圈 O-RING 2
491 80A0329 000 油封 OIL SEAL 1
602 04B0624 000 内六角螺钉 HEX SCREW 14
702 15C0062 000 制动瓣 BRAKE SHOE 1
706 12B0549 000 O 形圈 O-RING 1
707 12B0550 000 O 形圈 O-RING 1
712 75A0158 000 制动弹簧 BRAKE SPRING 24
742 57A0296 000 磨擦片 FRICTION PLATE 3
743 57A0297 000 隔离片 SPACER BLOCK 4
801 80A0556 000 油封 OIL SEAL 1
901 05A0371 000 堵头 PLUG 1
910 60A1551 000 销 PIN 4
912 07B0115 000 挡圈 SNAP RING 1
913 07B0116 000 挡圈 SNAP RING 1
915 07B0117 000 挡圈 SNAP RING 1
925 12C0277 000 排气阀 EXHAUST VALVE 1
926 10B0078 000 黄油嘴 GREASE FITTING 1
984 05A0378 000 堵头 PLUG 1
985 05A0379 000 堵头 PLUG 3
993 05A0117 000 螺塞 PLUG 1
994 05A0118 000 螺塞 PLUG 1
