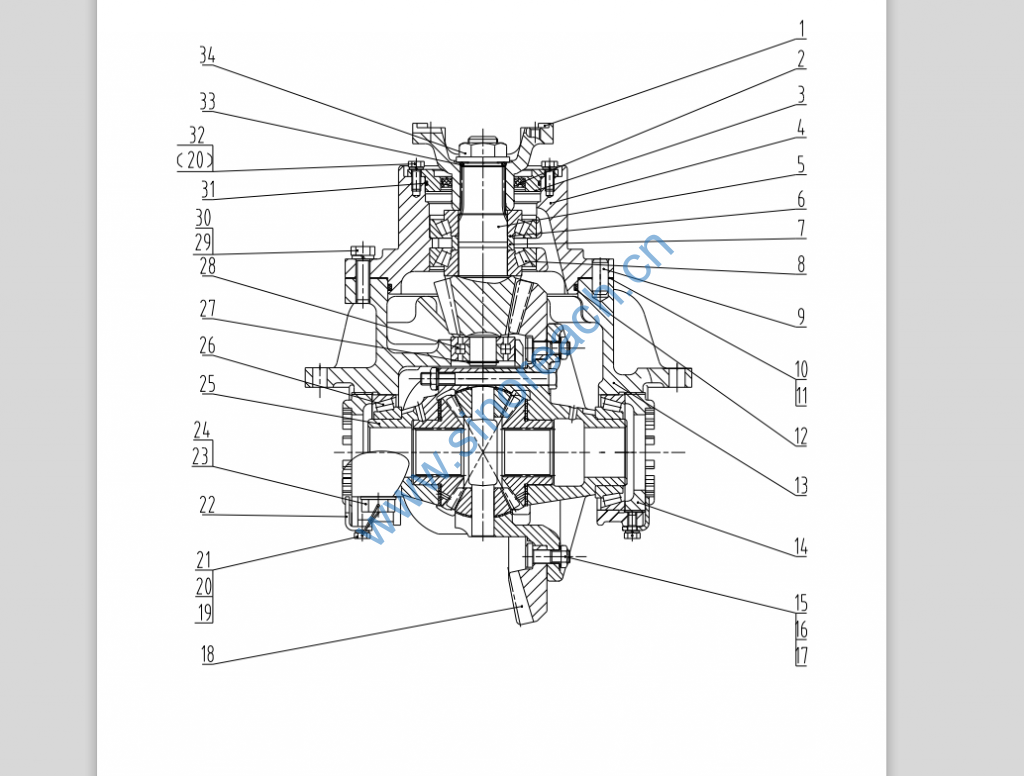

CLG862 41C0293 002 主传动总成 PRIMARY REDUCTION

1 04A0040 000 法兰 FLANGE 1
2 13B0169 000 油封 OIL SEAL 1
3 53A0110 001 油封座 OIL SEAL SEAT 1
4 70A0033 001 轴承座 BEARING SUPPORT 1
5 43A0130 000 主动螺旋锥齿轮 SPIRAL BEVEL GEAR 1
6 57A0027 001 垫片 SHIM 1
7 51C0238 000 轴套 BUSHING 1
8 23B0051 000 圆锥滚子轴承
HR30311DJ TAP.ROLLER BRG 2
9 66A0013 000 销 PIN 2
10 57A0078 000 调整垫片 0.20 SHIM 2
11 57A0079 000 调整垫片 0.50 SHIM 2
12 12B0246 000 O 形圈 O-RING 1
13 41C0197 000 托架总成 CARRIER AS 1 Z
14 03B0130 000 调整螺母 ADJUSTING NUT 2
15 60A0982 000 螺栓 BOLT 12
16 03V0537 000 螺母 NUT 12
17 06B0214 000 淬硬垫圈 HARD WASHER 12
18 43A0147 000 大螺旋锥齿轮 SPIRAL BEVEL GEAR 1
19 02B0012 000 螺栓 BOLT 2
20 06B0002 000 垫圈 WASHER 6
21 40B0006 000 铁丝 STEEL WIRE 2
22 21A0040 000 锁紧片 FASTENER 2
23 02B0032 000 螺栓 BOLT 4
24 06B0270 001 淬硬垫圈 HARD WASHER 4
25 41C0788 000 差速器 DIFFERENTIAL 1
26 23B0017 000 圆锥滚子轴承
32215 TAP.ROLLER BRG 2
27 07B0027 000 挡圈 SNAP RING 1
28 22B0005 000 圆柱滚子轴承
NUP2306ET ROLLER BEARING 1
29 00B0094 000 螺栓 BOLT 11
30 06B0015 000 垫圈 WASHER 11
31 12B0034 000 O 形圈 O-RING 1
32 00B0012 000 螺栓 BOLT 4
33 12B0105 000 O 形圈 O-RING 1
34 34C0608 000 锁紧螺母 LOCKNUT 1
