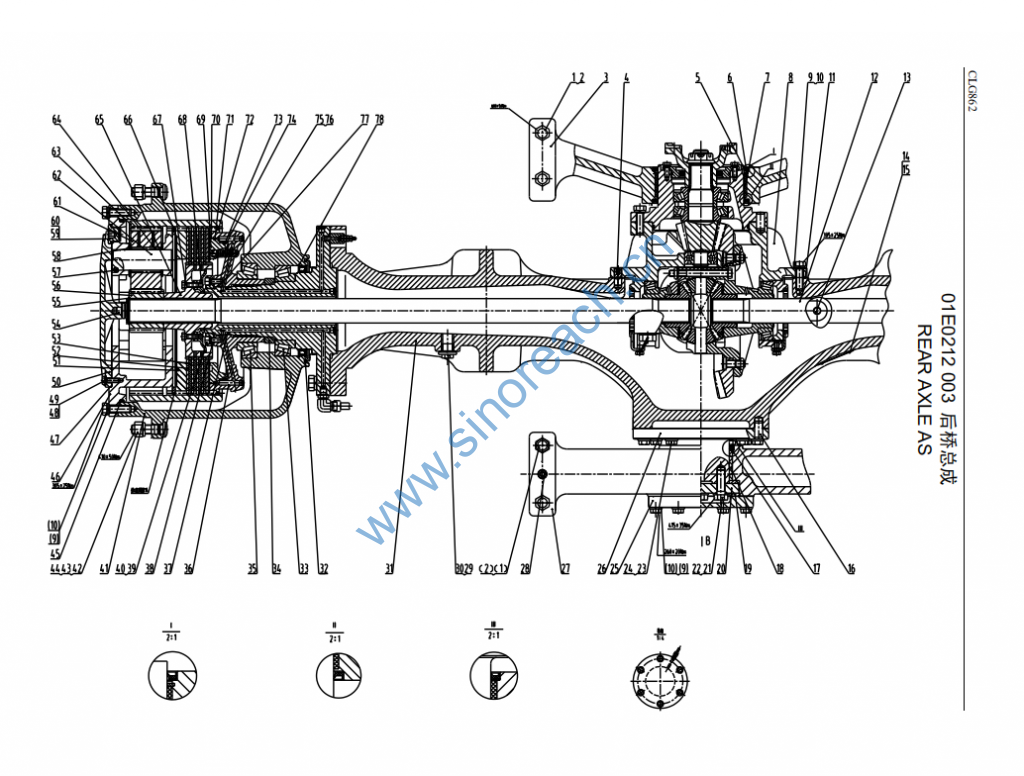

CLG862 01E0212 003 后桥总成 REAR AXLE AS

1 01B0124 000 螺栓 BOLT 8
2 03B0936 000 锁紧螺母 LOCKNUT 8
3 71A0238 000 前摆动支架 SUPPORT 1
4 60A0011 000 定位销 DOWEL PIN 2
5 34C0087 000 密封圈 SEAL RING 2
6 00A0259 000 卡环 SNAP RING 1
7 83A0045 000 衬套 BUSHING 1
8 41C0293 001 主传动总成 PRIMARY REDUCTION 1 Z
9 00B0245 000 螺栓 BOLT 64
10 06B0177 001 垫圈 WASHER 64
11 81A0113 000 密封垫 GASKET 1
12 62A0166 000 半轴 HALF SHAFT 2
13 03B0406 002 通气塞 BREATHER PLUG 1
14 74A4622 000 铭牌 NAMEPLATE 1
15 09B0002 000 铆钉 RIVET 4
16 66A0013 000 销 PIN 2
17 35C0047 000 密封圈 SEAL RING 1
18 83A0083 000 衬套 BUSHING 1
19 88A0157 000 止推垫片 THRUST SHIM 2
20 56A0088 000 压紧板 PLATE 1
21 00B0159 000 螺栓 BOLT 4
22 06B0102 000 淬硬垫圈 HARD WASHER 4
23 06B0103 000 淬硬垫圈 HARD WASHER 14
24 00B0375 000 螺栓 BOLT 14
25 17A1289 000 盖 COVER 1
26 61A0109 002 后支承轴 SHAFT 1
27 71A0108 002 后摆动支架 SUPPORT 1
28 00A0260 000 销 PIN 2
29 03B0212 000 螺塞 PLUG 2
30 06B0055 000 垫圈 WASHER 2
31 41C0145 004 桥壳轮边支承 HUB CARRIER 1 Z
32 13B0282 000 密封圈 SEAL RING 2
33 23B0057 000 圆锥滚子轴承
HR32026XJ TAP.ROLLER BRG 2
34 51C0114 002 轴套 BUSHING 2
35 23B0055 000 圆锥滚子轴承
HR32028XJ TAP.ROLLER BRG 2
36 24D0051 000 内齿轮支承架焊接
件
BRACKET 2
37 12B0216 000 O 形圈 O-RING 2

38 03B0431 000 圆螺母 ROUND NUT 2
39 04B0022 000 螺钉 SCREW 4
40 06B0002 000 垫圈 WASHER 4
41 70A0087 004 轮毂 HUB 2
42 01B0379 001 螺栓 BOLT 40
43 03B0150 000 螺母 NUT 40
44 06B0019 000 垫圈 WASHER 40
45 12B0424 000 O 形圈 O-RING 2
46 70A0086 004 行星轮架 PLANETARY CARRIER 2
47 81A0080 000 垫片 SHIM 2
48 00B0017 000 螺栓 BOLT 16
49 06B0008 000 垫圈 WASHER 16
50 53A0259 002 端盖 COVER 2
51 52A0329 000 承压盘 CARRIER PLATE 2
52 51C0094 000 对偶钢片 STEEL PLATE 8
53 37C0034 000 摩擦片 FRICTION PLATE 6
54 61A0019 000 轴 SHAFT 2
55 07B0028 000 挡圈 SNAP RING 2
56 41A0094 000 太阳轮 SUN GEAR 2
57 20B0026 000 钢球 STEEL BALL 8
58 56A0287 000 垫片 SHIM 16
59 03B0432 001 螺塞 PLUG 2
60 06B0054 000 垫圈 WASHER 2
61 41A0095 000 行星轮 PLANETARY GEAR 8
62 61A0263 002 行星轮轴 PLANETARY GEAR
SHAFT 8
63 46A0008 004 内齿轮 RING GEAR 2
64 20B0045 000 滚针 ROLLING NEEDLE 224
65 72A0291 000 摩擦片支承 SUPPORT 2
66 07B0075 003 挡圈 SNAP RING 2
67 00B0002 000 螺栓 BOLT 8
68 72A0292 001 圆盘 DISC 2
69 50A0121 003 活塞 PISTON 2
70 88A0455 002 支承环 SUPPORT RING 2
71 12B0422 002 密封圈 SEAL RING 2
72 07B0076 002 挡圈 SNAP RING 2
73 12B0421 002 密封圈 SEAL RING 2
74 88A0456 002 支承环 SUPPORT RING 2
75 10B0070 003 弹簧 SPRING 16
76 75A0128 002 钢丝挡圈 SNAP RING 4
77 12B0423 000 O 形圈 O-RING 2
78 07B0106 000 挡圈 SNAP RING 2
