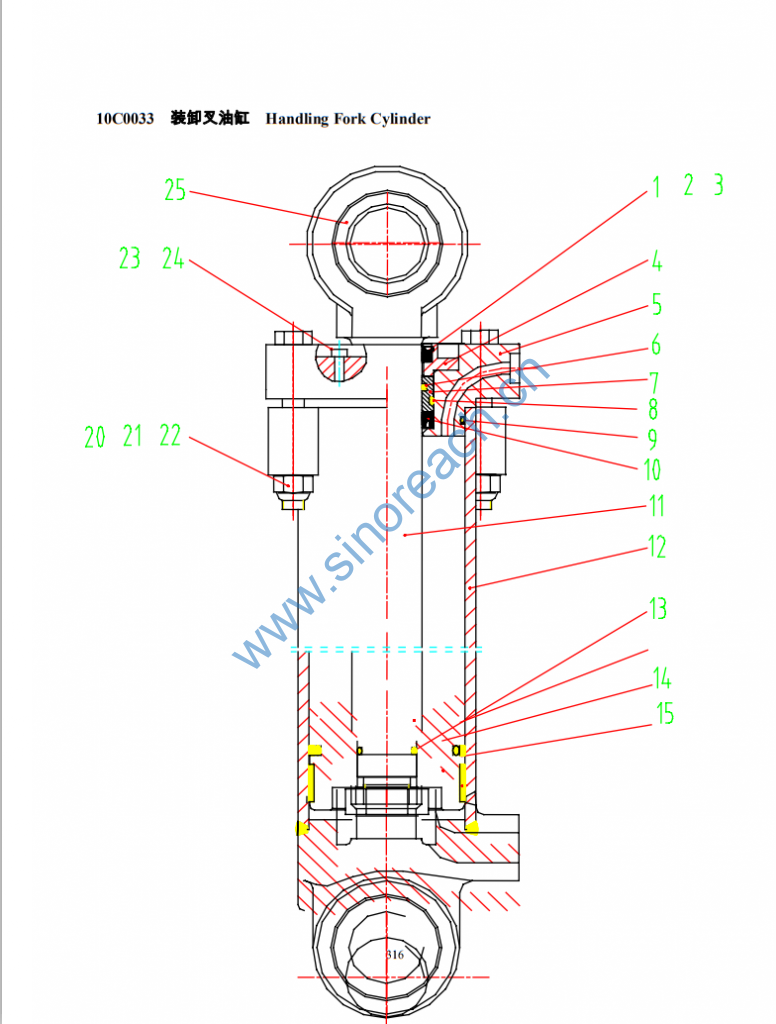

CLG842 10C0033 装卸叉油缸 Handling Fork Cylinder

1 76A0021 ZL50.10.2-3 卡环 Snap ring 1
2 27A0030 ZL50.10.2-4 铁壳 Iron case 1
3 13B0022 ZL50.10.2-5 防尘圈 Dust ring 60×74×11 1
4 55A0173 ZL50A.10.2-6 套 Jacket 1
5 54A0082 ZL50.26.2.1-2 缸盖 Cylinder head 1
6 12B0147 GB1235-76 O 形密封圈 O-ring 65×3.1 1
7 55A0237 ZL40.10.2-6A 铜套 Copper sleeve 1
8 12B0150 GB1235-76 O 形密封圈 O-ring 80×3.1 1
9 12B0152 GB1235-76 O 形密封圈 O-ring 125×3.1 1
10 13B0023 ZL50.10.2-7 Y 形密封圈 Y-seal 60×80×12 1
11 72A0124 ZL50C.27.2.2-1 活塞杆 Piston rod 1
12 13D0052 ZL50C.27.2.2.1 缸体 Cylinder body 1
13 12B0076 GB3452.1-82 O 形圈 O-ring 38.7×3.55 1
14 13B0024 ZL50.10.2-18 Y 形密封圈 Y-seal 105×125×
15 1
15 50A0018 ZL50.10.2C-12B 活塞 Piston 1
16 80A0059 ZL50.10.2-14 导向环 Giude ring ф125 1
17 03B0189 CB0840300 尼龙锁紧螺母 Nylon lock nut 1
18 76A0022 ZL50.10.2-17 挡圈 Retainer ring 2
19 55A0172 ZL50.10.2-1 衬套 Bushing 1
20 01B0232 GB5785-86 螺栓 Bolt
M18×1.5×
130-10.9-Zn 4
21 03B0187 CB082011-3 尼龙锁紧螺母 Nylon lock nut 4
22 06B0014 GB93-87 垫圈 washer 18 4
23 06B0006 GB93-87 垫圈 washer 8 4
24 04B0078 GB70-85 螺钉 Bolt M8×
20-8.8-Zn.D 1
25 55A0236 ZL40.10.2-5 衬套 Bushing 1
