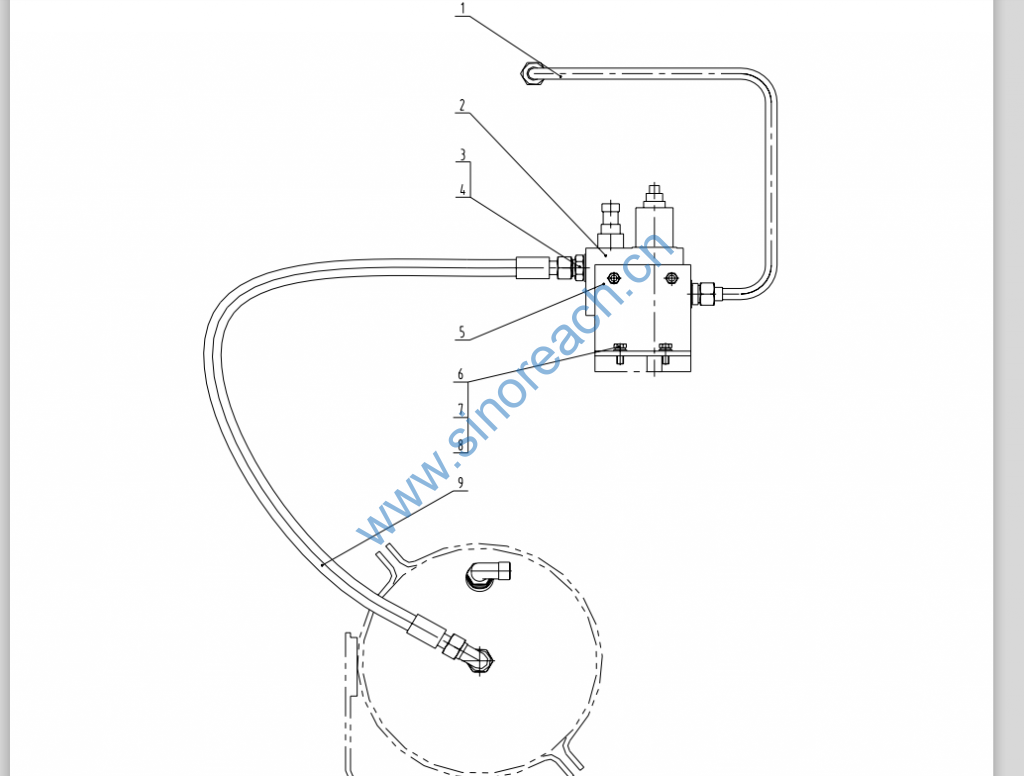

CLG842 20E0016 空压机管路 Compressor Pipeline Pipeline (高原机用 Applies to Machine

1 02C0145 钢管总成 Steel pipe
assembly 1
259
2 13C0026 SH380A 组合阀 combination
valve 1
3 00A0050 ZL50C.12-6 接头 Joint 1
4 82A0028 ZL50C.12-2 垫 Pad 1
5 22A0019 ZL50C.12-4A 油水分离器固定板
Fixed plate of
oil and water
separator
1
6 00B0075 GB5783-86 螺栓 Bolt M8X20-8.8-Zn.D 2
7 06B0006 GB93-87 垫圈 Washer 8 2
8 06B0005 GB97.1-85 垫圈 Washer 8-140HV-Zn.D 2
9 04C0007 ZL50C.12.18A 低压软管 L800 Low pressure
hose L800 1
