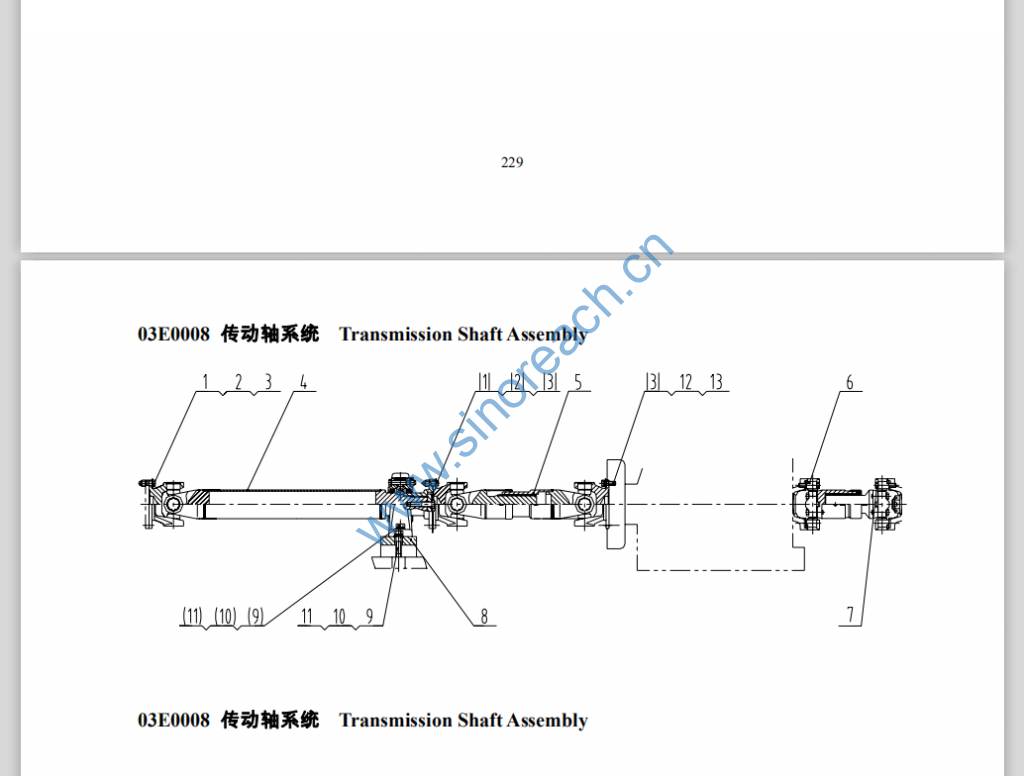

CLG842 03E0008 传动轴系统 Transmission Shaft Assembly

1 04B0007 ZL50C.4-1 铰孔螺栓 Bolt 16
2 03B0025 CB071215-3 锁紧螺母 Lock nut M12 16
3 06B0009 GB97.1-85 垫圈 Washer 14-140HV-Zn.D 6
4 41C0042 前传动轴及支
承总成
Front transmission shaft &
supporting assembly
1
5 51C0039 中间传动轴 Middle transmission shaft 1
6 51C0038 后传动轴 Rear transmission shaft 14 1
7 01B0207 GB5785-86 螺栓 Bolt M12×1.5×55-8.8-Zn.D 8
8 17A0225 支承板 Support plate 1
9 01B0027 GB5782-86 螺栓 Bolt M16×60-8.8-Zn.D 4
10 06B0015 GB93-87 垫圈16 Washer16 4
11 06B0098 GB97.1-85 垫圈 Washer 16-200HV-Zn.D 4
12 06B0013 GB93-87 垫圈14 Washer 14 16 8
13 04B0008 ZL50C.4-2 铰孔螺钉 Ream bolt 8
