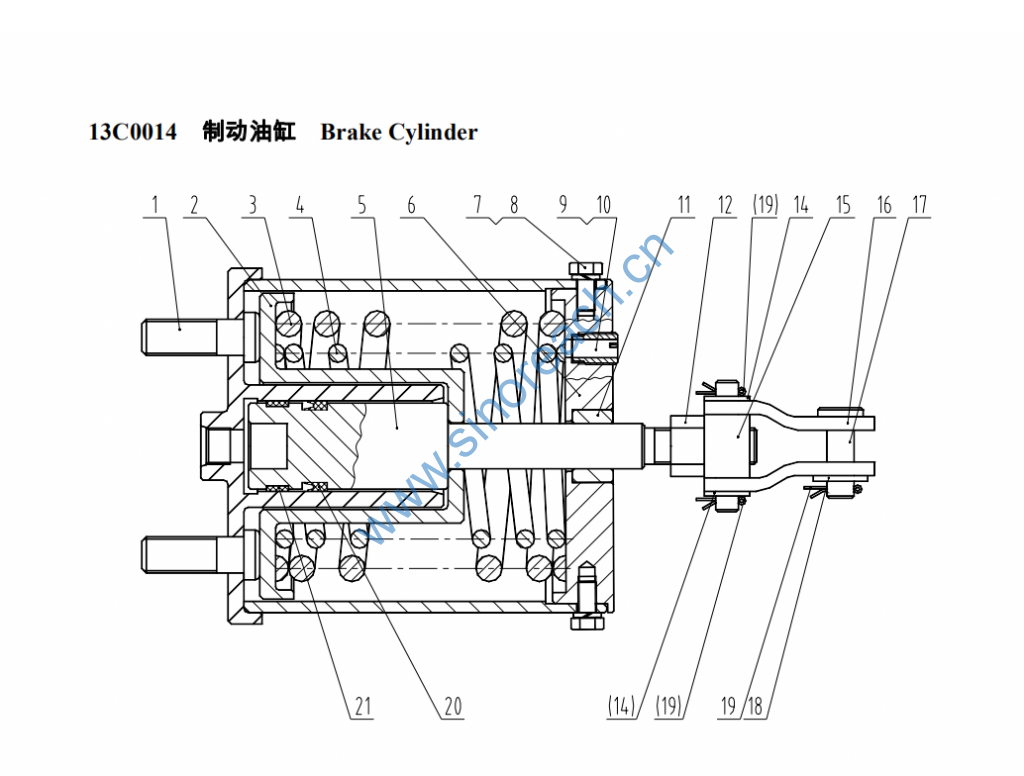

CLG842 13C0014 制动油缸 Brake Cylinder

1 13D0014 ZL50G.12.1.1.1 缸体总成 Cylinder body
assembly 1
2 71A0021 ZL50G.12.1.1-1 支座 Bearing 1
3 75A0051 ZL50G.12.1.1-2 弹簧 Spring 1
4 75A0052 ZL50G.12.1.1-3 弹簧 Spring 1
5 50A0016 ZL50G.12.1.1-4 活塞 Piston 1
6 53A0054 ZL50G.12.1.1-5 端盖 End cover 1
7 00B0007 GB5783-86 螺栓 Bolt M8×16-8.8-Zn.D 8
8 06B0006 GB93-87 垫圈8 Washer 8 8
9 88A0004 ZJ160-16 滤网 Filter screen 2
10 03B0057 ZJ160-17 挡塞 Block plug 2
11 55A0127 ZL50G.12.1.1-6 铜套 Copper bush 1
203
12 03B0103 GB6171-86 螺母 Nut M16×1.5-8-Zn.D 1
14 06B0152 B97.1-85 垫圈 Washer 10-140Hv-Zn.D 2
15 55A0108 ZL50C.13.2-9 连接套 Connecting
sleeve 1
16 22A0211 ZL50F.12.3-3 夹板 Clamp plate 2
17 66A0020 ZL50F.12.3-4 销轴 Pin shaft 1
18 06B0007 GB97.1-85 垫圈 Washer 12-140HV-Zn.D 1
19 08B0028 GB91-86 销 Pin 4×26 3
20 13B0174 Yx形密封圈 Yx type seal ring D40 1
21 80A0053 ZL50G.12.1.1-7 支承环 Support ring 1
